CS-K-HS10 (ten pack)
21,00 €

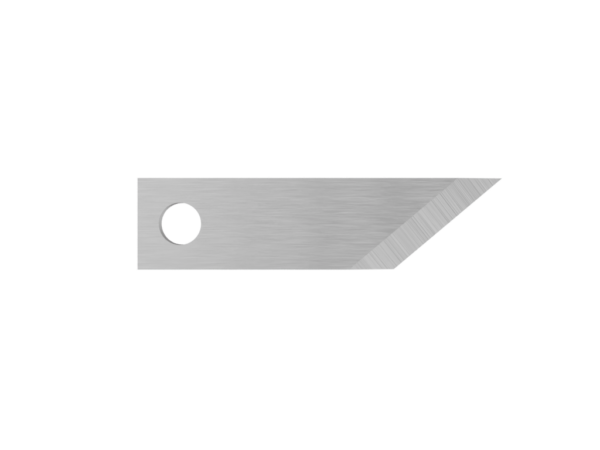

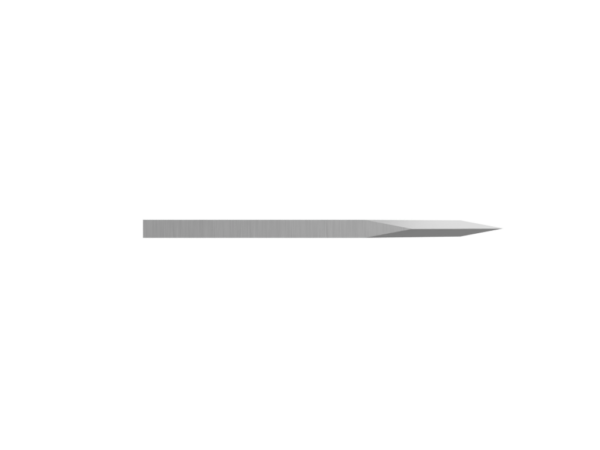

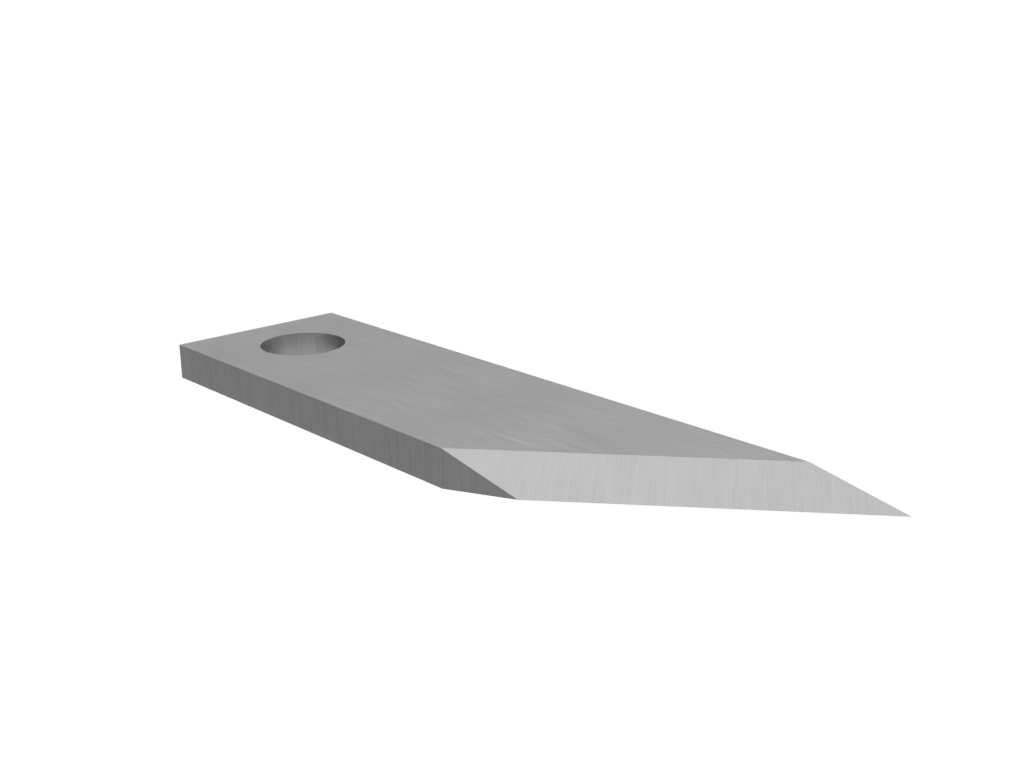

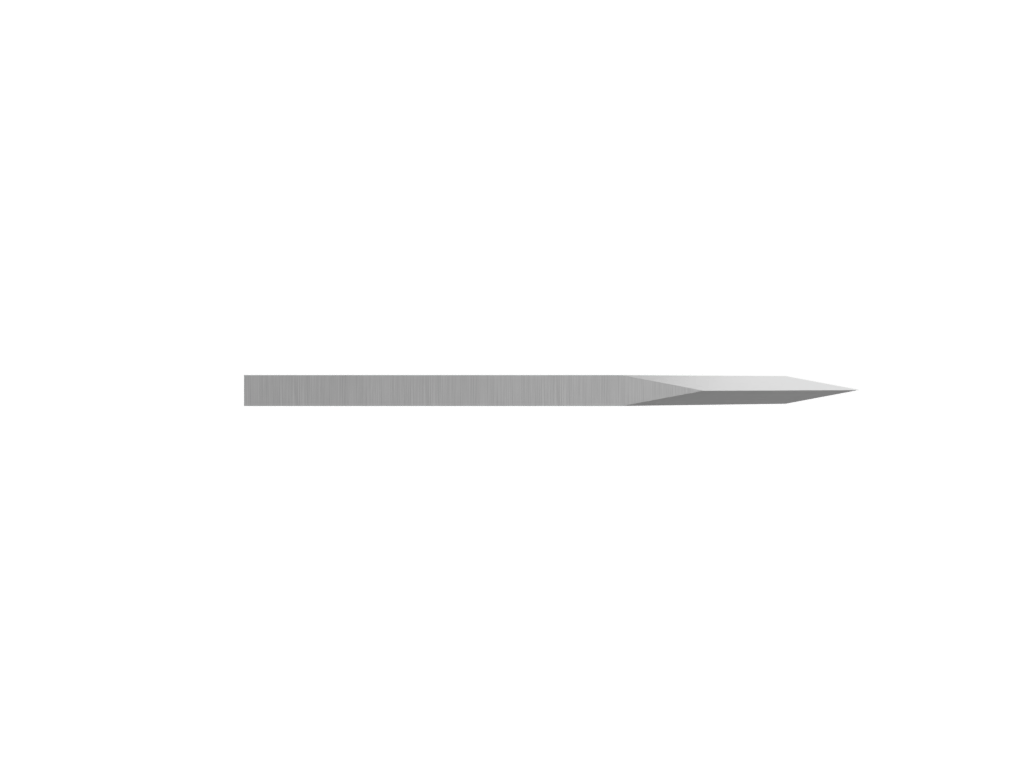

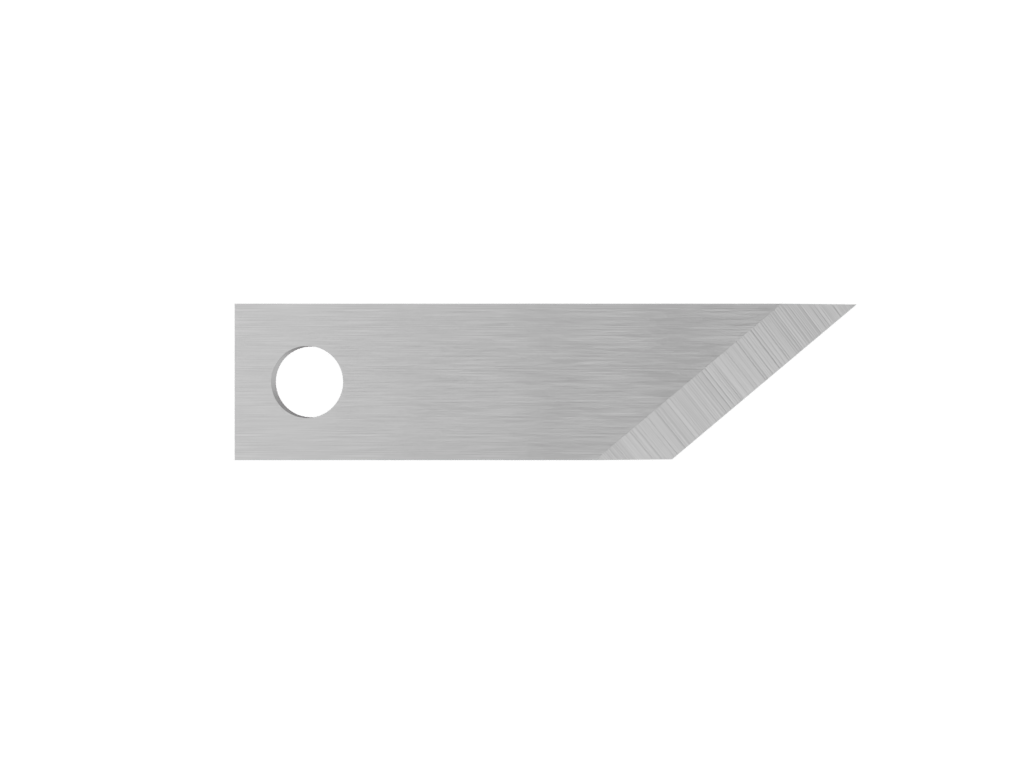

High strength steel drag blade. Same design as the Zund Type 6 blade. For using in paper board and corrugated paper products. Often used for sample making. Blades are sold in packs of 10.
Description
High strength steel drag blade. Same design as the Zund Type 6 blade. For using in paper board and corrugated paper products. Often used for sample making. Blades are sold in packs of 10.
Additional information
| Weight | 0,145505 kg |
|---|---|
| Dimensions | 2,6 × 1,4 × ,65 cm |
| Machine Model | Gerber, Kongsberg, Zund |
| Process Category | Knife blades |
| Cut Angle | 35º |
| Max Material Thickness | 5 mm |
| Blade Thickness | 0.63 mm |
| Knife Type | Flat Stock |
| Process Type | Knife – Static/Drag |
| Board – Soft | Corrugated Plastic, Dispa®, F-Sorb®, Foam Board, Fome-Cor®, Insite® Foam Board, Polyester Acoustic Board, Reboard®, Sandwich Board, Styrene, Xanita® Board |
| Corrugated Single | A Flute, B Flute, C Flute, D Flute, E Flute, F Flute, G Flute |
| Paper | Extra Heavy (114-140lbs), Heavy (93-100lbs), Light (22-56lbs), Medium (65-82lbs) |
| Folding Carton | Light (20pt), XL (32pt) |
| Flexible Material | Carpet, Cork, Magnetic Foil, Magnum Magnetics, Tarpaulin |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl, Window Perf |
| Textile | Canvas, Polyester Coated, Polypropylene, Samba® |
