CS-K12
53,00 €

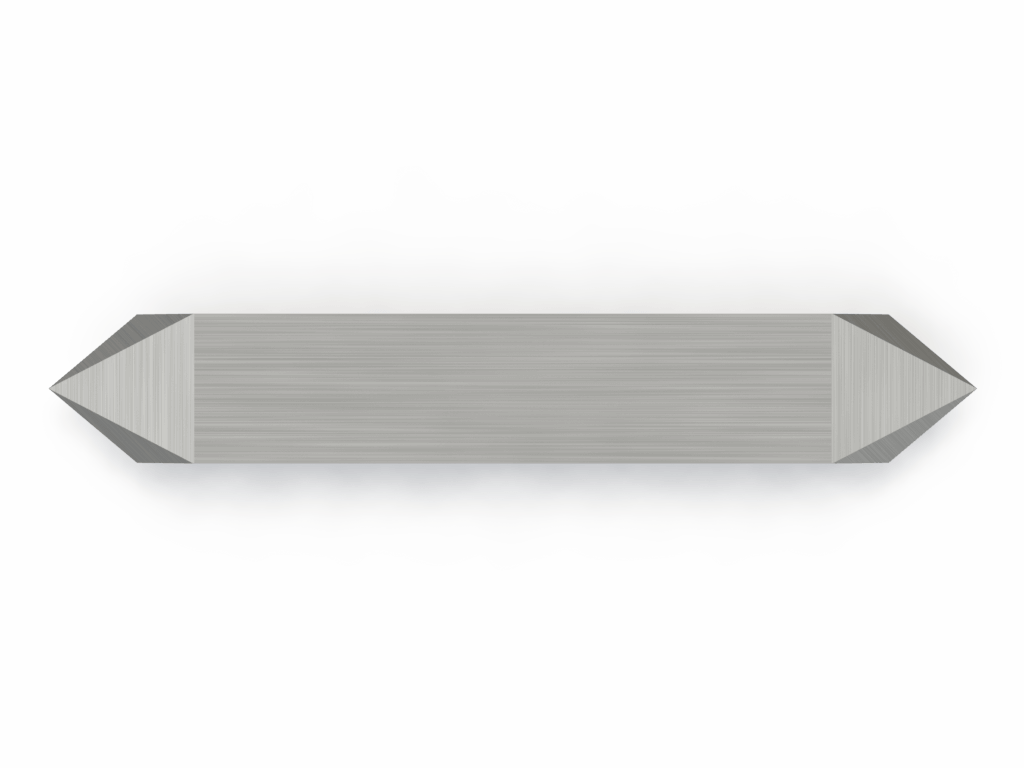

Double-edged, two tipped, blade for universal cutting applications. Same cut parameters as the Z10 but with two tips to double usable cut life. Similar to VTX-K13, but with larger overcut and longer cut life than the VTX-K13.
In stock
Description
Double-edged, two tipped, blade for universal cutting applications. Same cut parameters as the Z10 but with two tips to double usable cut life. Similar to CS-K13, but with larger overcut and longer cut life than the CS-K13.
Additional information
| Weight | 0,028125 kg |
|---|---|
| Dimensions | 2,22 × 1,63 × ,35 cm |
| Machine Model | Gerber, IECHO, Kongsberg, Summa, Zund |
| Process Category | Knife blades |
| Process Type | Knife – Static/Drag |
| Cut Angle | 50° |
| Max Material Thickness | 4.8 mm |
| Blade Thickness | 1.5 mm |
| Knife Type | Flat Stock |
| Start Overcut | 0.84 mm |
| End Overcut | 0.84 mm |
| Board – Rigid | EVA – Ethylene Vinyl Acetate, Expanded PVC, Komatex®, Plaskolite®, Polyethylene 4 lbs., Sintra® |
| Board – Soft | Corrugated Plastic, Matboard, Polycarbonate Sheet, Styrene |
| Composite | Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber, Toray® Prepreg Carbon Fiber |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl, Window Perf |
| Flexible Material | Carpet, Cork, Foam, Garlock®, Gasket Material, Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber, Tarpaulin |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Paper | Extra Heavy (114-140lbs), Heavy (93-100lbs), Light (22-56lbs), Medium (65-82lbs) |
