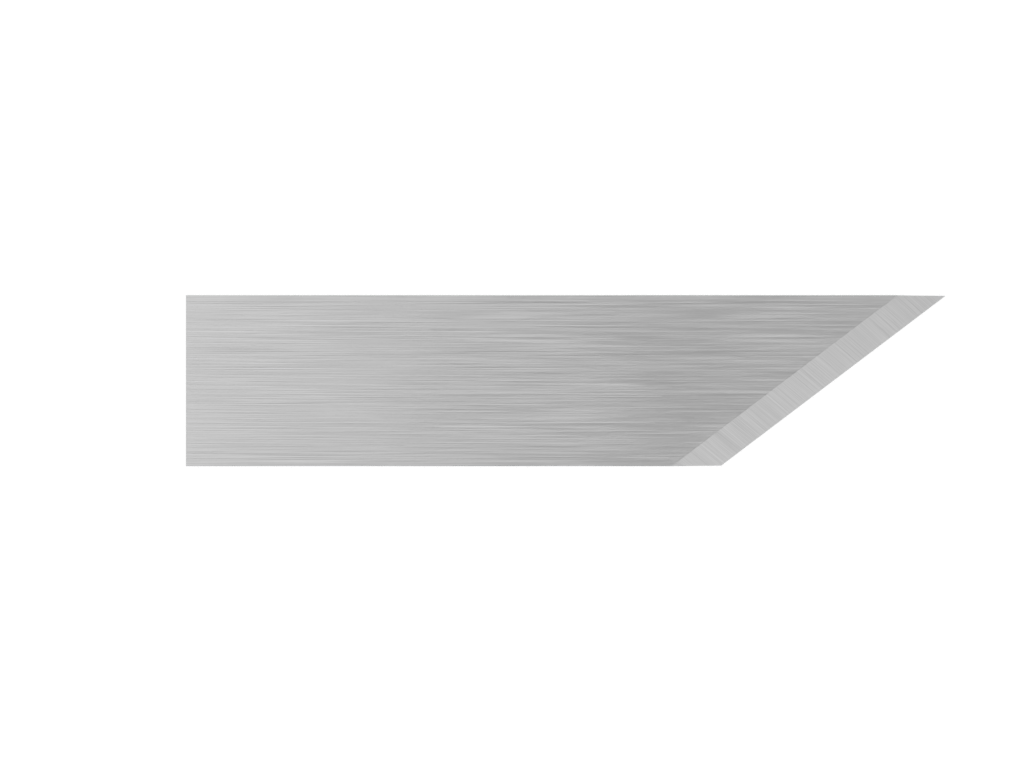

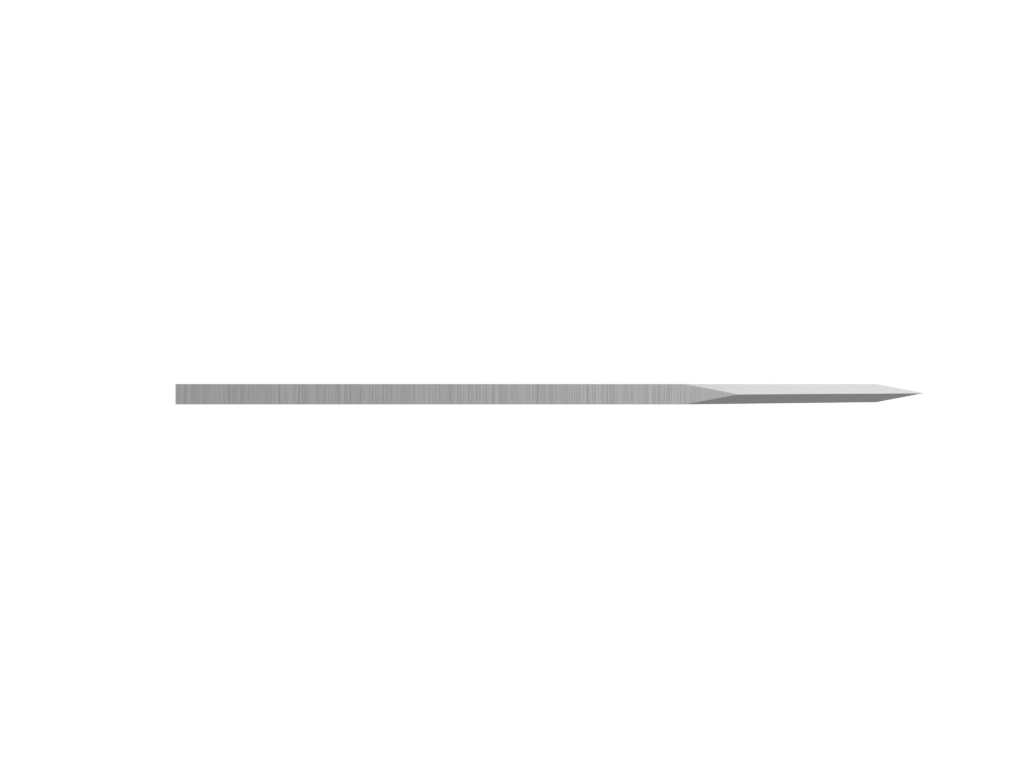

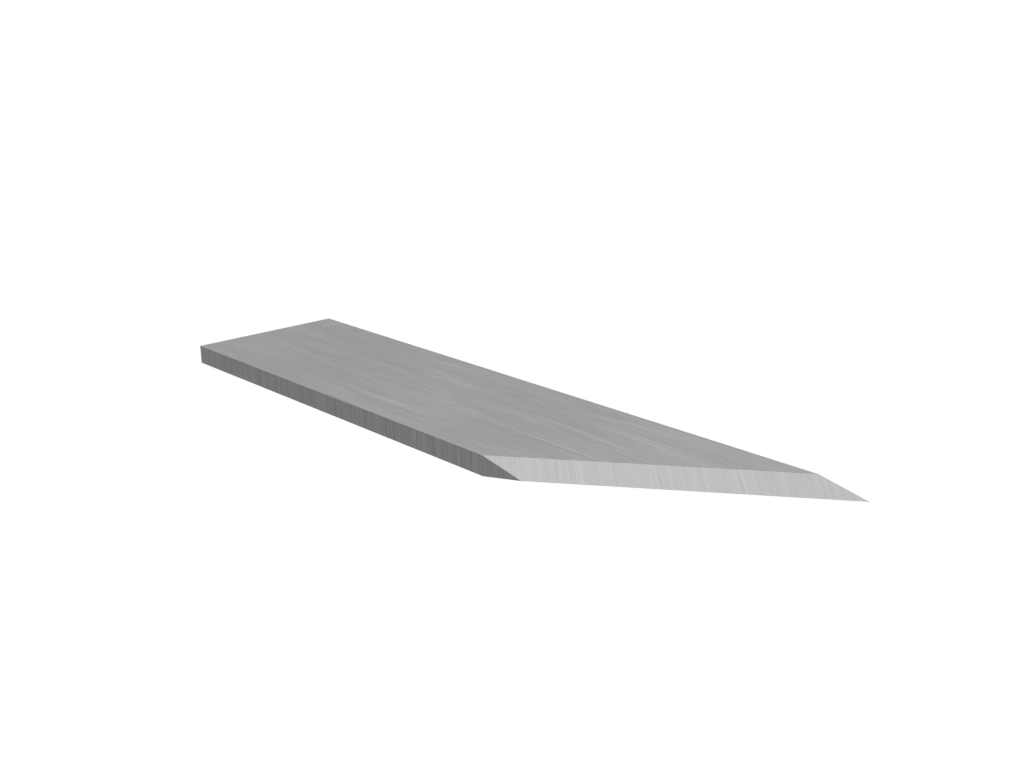

CS-K16
30,00 €
Blade for softer materials. Utilized for both static drag knife and oscillation cutting applications.
In stock
Description
Blade for softer materials. Utilized for both static drag knife and oscillation cutting applications.
Additional information
| Weight | 0,015625 kg |
|---|---|
| Dimensions | 2,22 × 1,63 × ,35 cm |
| Machine Model | Gerber, IECHO, Kongsberg, Zund |
| Process Category | Knife blades |
| Process Type | Knife – Oscillate, Knife – Static/Drag |
| Cut Angle | 53.2° |
| Max Material Thickness | 7.4 mm |
| Blade Thickness | 0.63 mm |
| Knife Type | Flat Stock |
| Start Overcut | '- mm |
| End Overcut | 0.75 mm |
| Board – Soft | Corrugated Plastic, Dispa®, Foam Board, Fome-Cor®, Insite® Foam Board, Matboard, Polycarbonate Sheet, Styrene |
| Composite | Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber, Toray® Prepreg Carbon Fiber |
| Corrugated Single | E Flute, F Flute, G Flute |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl, Window Perf |
| Flexible Material | Cork, Foam, Garlock®, Gasket Material, Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber, Tarpaulin |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Leather | Leather Hide |
| Paper | Extra Heavy (114-140lbs), Heavy (93-100lbs), Light (22-56lbs), Medium (65-82lbs) |
| Textile | Canvas, Felt, Polyester Coated, Polyester Textile, Polypropylene, Sunbrella |
| Material | Board – Soft, Composite, Corrugated – Single Wall or Single face, Film/Vinyl, Flexible Material, Folding Carton/Chipboard, Leather, Paper, Textile |
