CS-K17
30,00 €

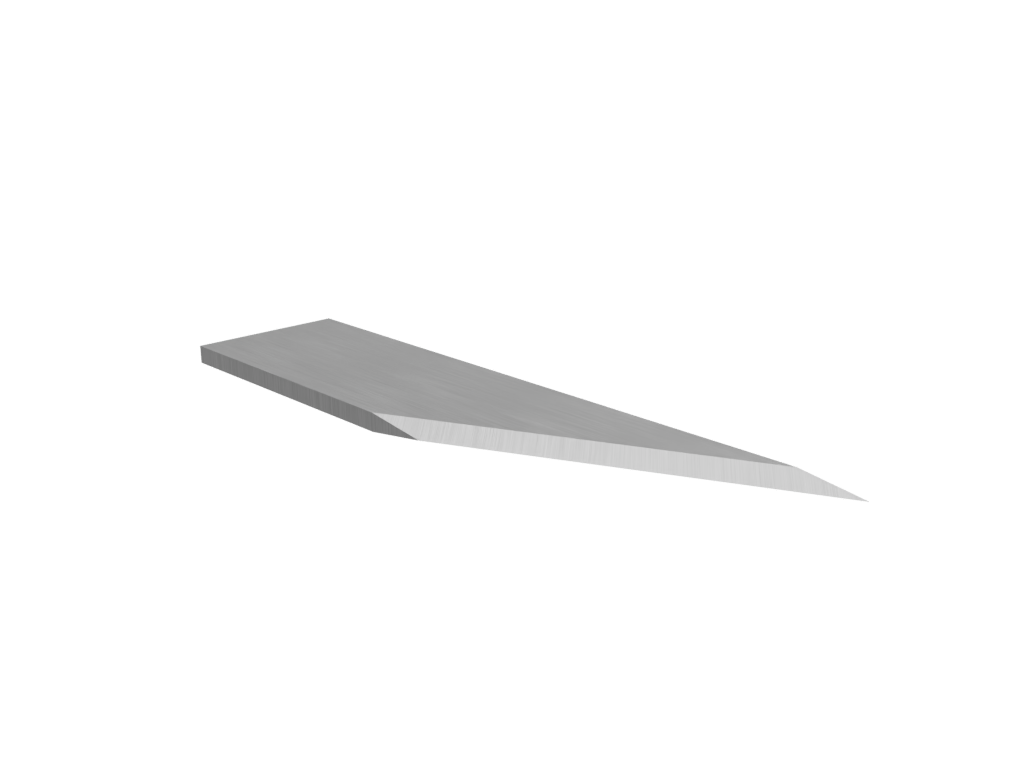

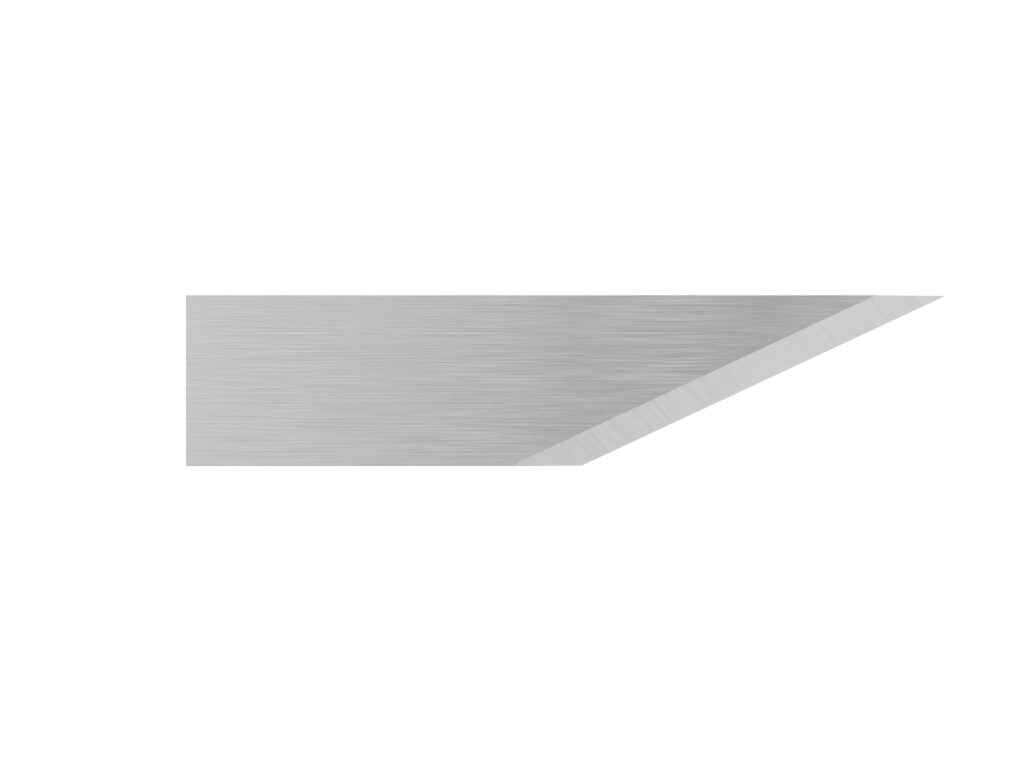

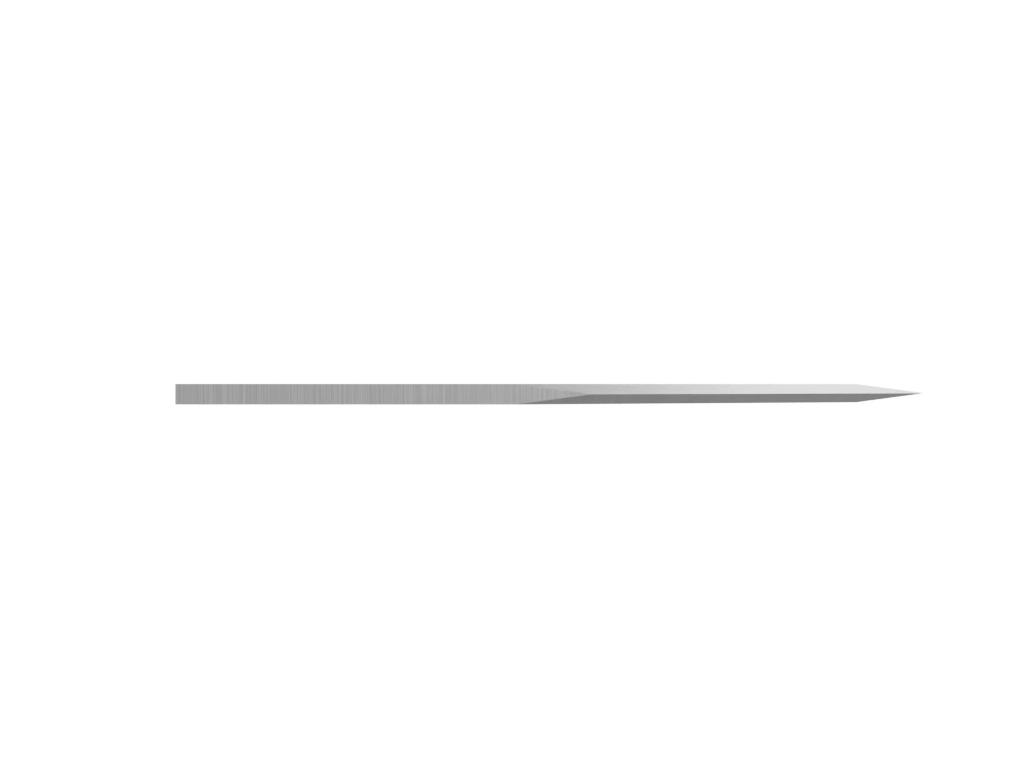

Knife blade for the cutting of thin materials. Less overcut but exerts more drag than the CS-K16. For best results, use with an oscillating tool.
In stock
Description
Knife blade for the cutting of thin materials. Less overcut but exerts more drag than the CS-K16. For best results, use with an oscillating tool.
Additional information
| Machine Model | Gerber, IECHO, Kongsberg, Zund |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Oscillate, Knife – Static/Drag |
| Cut Angle | 65 |
| Max Material Thickness | 12 mm |
| Blade Thickness | 0.63 mm |
| Knife Type | Flat Stock |
| Start Overcut | '- mm |
| End Overcut | 0.47 mm |
| Corrugated Single | E Flute, F Flute, G Flute |
| Board – Soft | Foam Board, Fome-Cor®, Matboard, Styrene |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl, Window Perf |
| Flexible Material | Foam, Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Tarpaulin |
| Folding Carton | Extra Heavy (50pt), Light (20pt) |
| Paper | Extra Heavy (114-140lbs), Heavy (93-100lbs), Light (22-56lbs), Medium (65-82lbs) |
