CS-K21
35,00 €

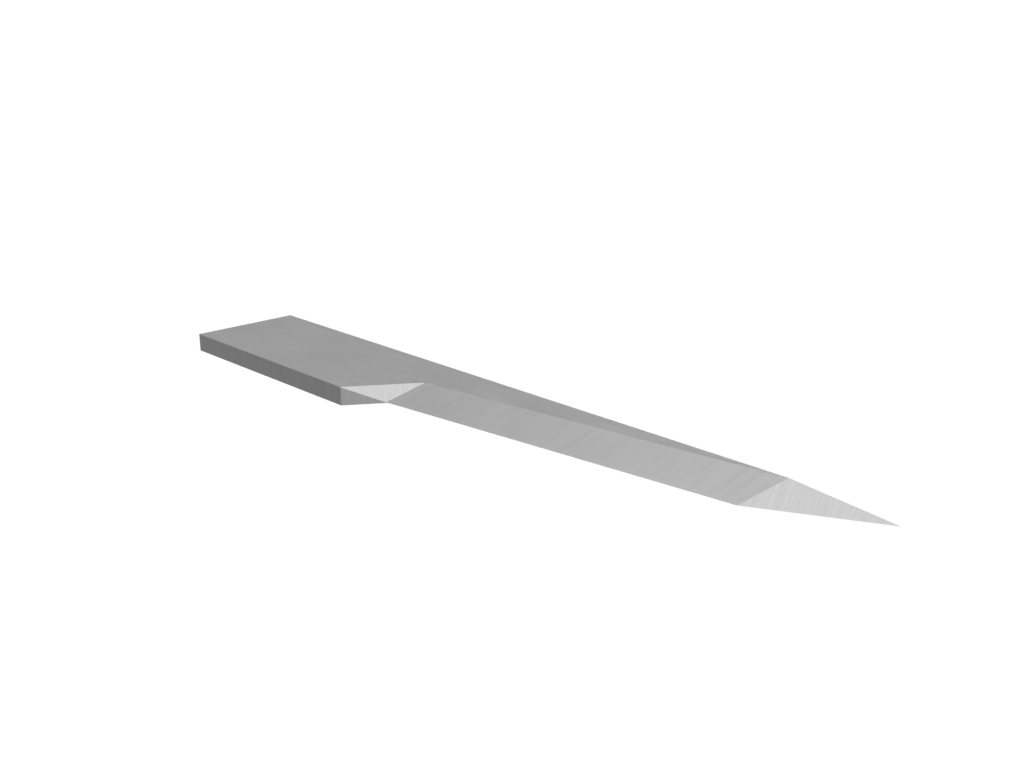

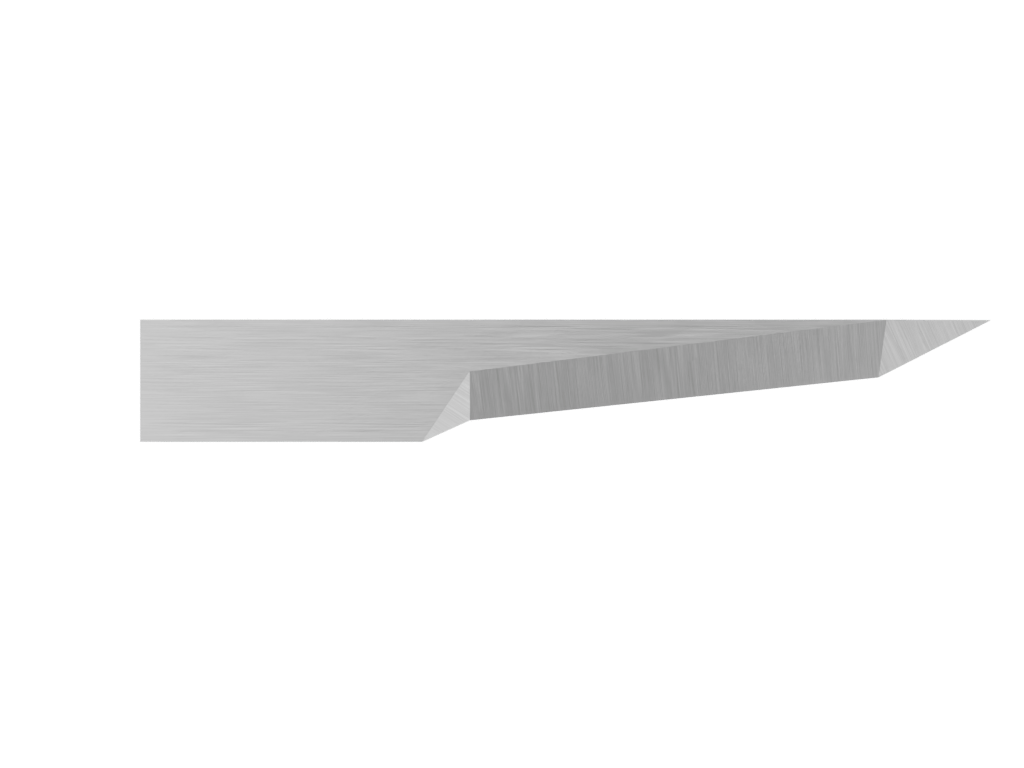

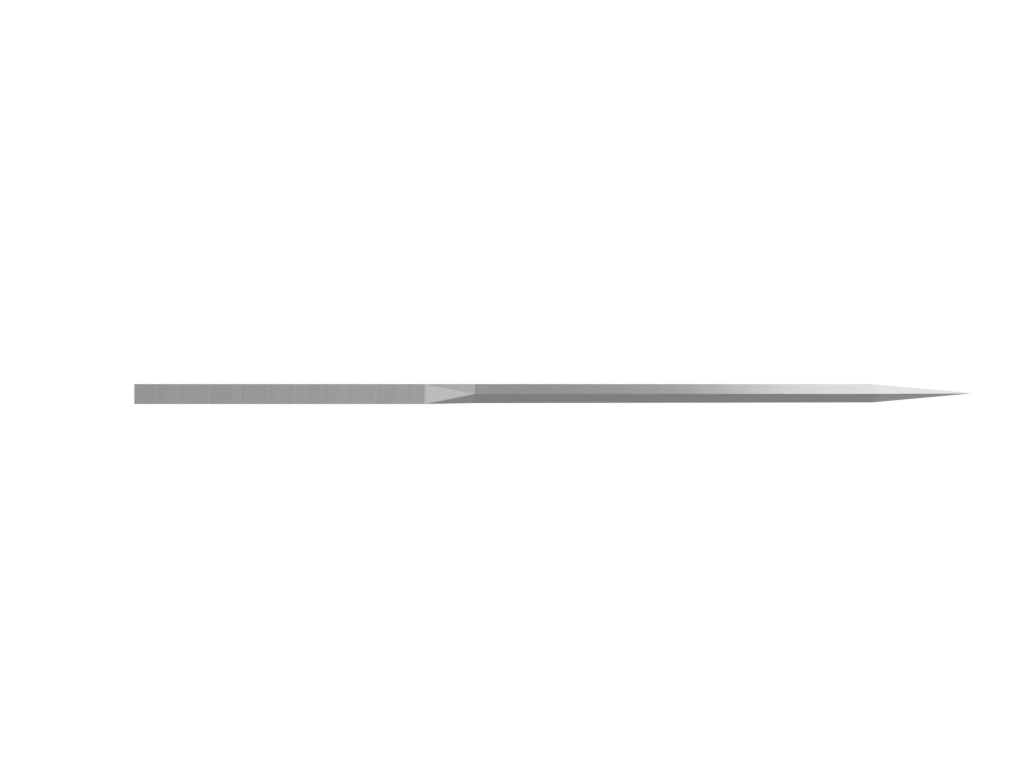

Blade for oscillate cutting of intricate detail and small radii. Provides for low overcut.
In stock
Description
Blade for oscillate cutting of intricate detail and small radii. Provides for low overcut.
Additional information
| Machine Model | Colex, Gerber, IECHO, Kongsberg, Multicam, Summa, Zund |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Oscillate |
| Cut Angle | 63° + 84° |
| Max Material Thickness | 17.2 mm |
| Blade Thickness | 0.63 mm |
| Knife Type | Flat Stock |
| Start Overcut | '- mm |
| End Overcut | 1.6 + 0.11 mm |
| Board – Soft | Corrugated Plastic, Dispa®, F-Sorb®, Foam Board, Fome-Cor®, Insite® Foam Board, Polyester Acoustic Board, Reboard®, Sandwich Board, Xanita® Board |
| Corrugated Double Wall | A/B Flute, B/C Flute, B/E Flute, E/B Flute, E/C Flute, E/E Flute, F/E Flute |
| Corrugated Single | A Flute, B Flute, C Flute |
| Corrugated Triple Wall | E/B/E Flute |
| Flexible Material | Carpet, Cork, Ejection Rubber, Fiber Glass, Foam, Garlock®, Gasket Material, Insulation, Magnetic Foil, Rubber, Tarpaulin, Zintra® |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Textile | Polyester Coated, Polyester Textile |
