CS-K27rh
49,00 €

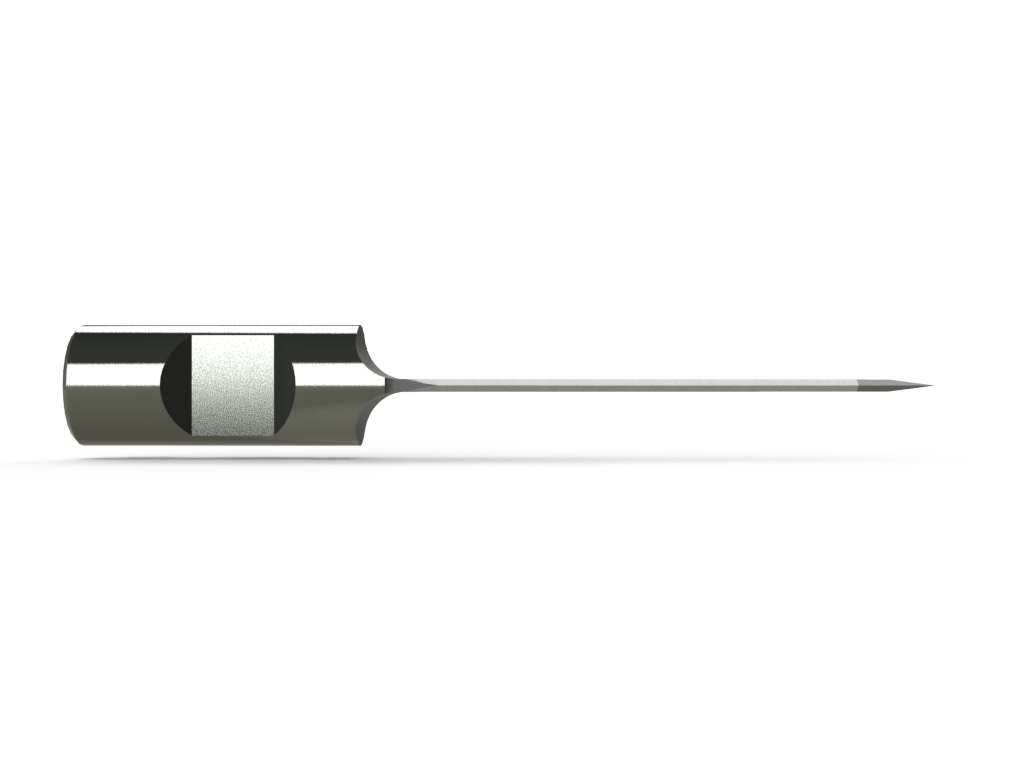

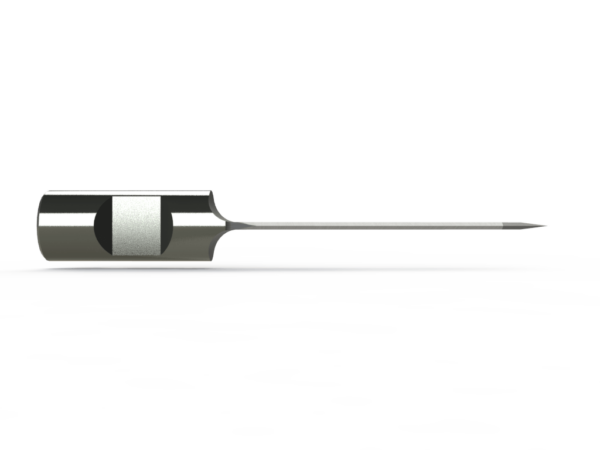

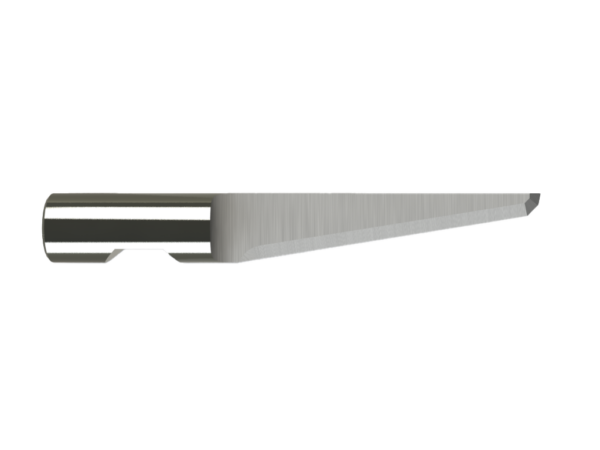

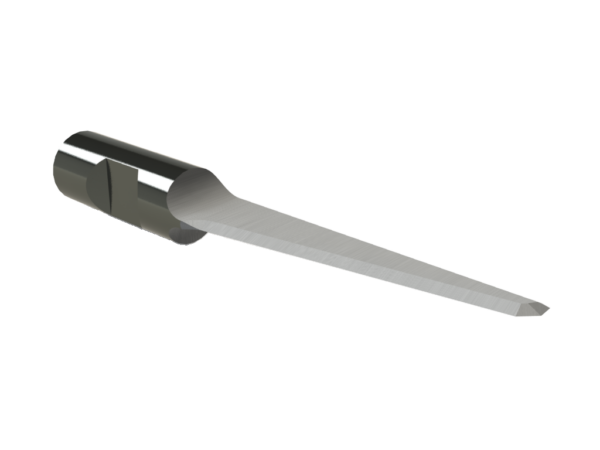

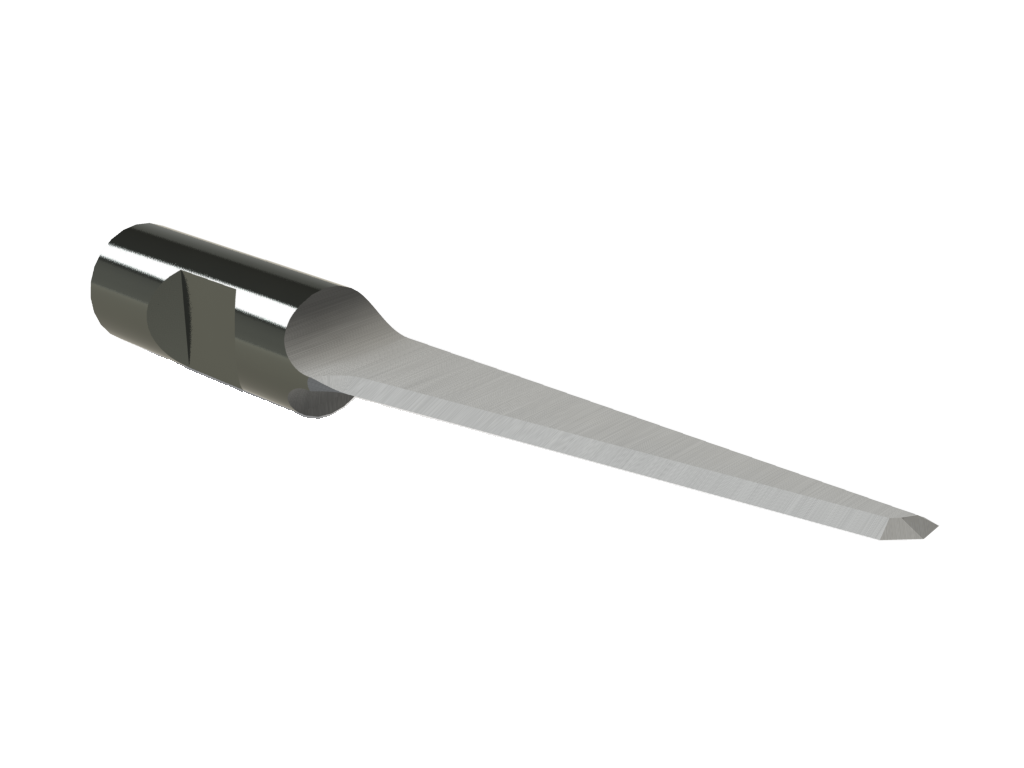

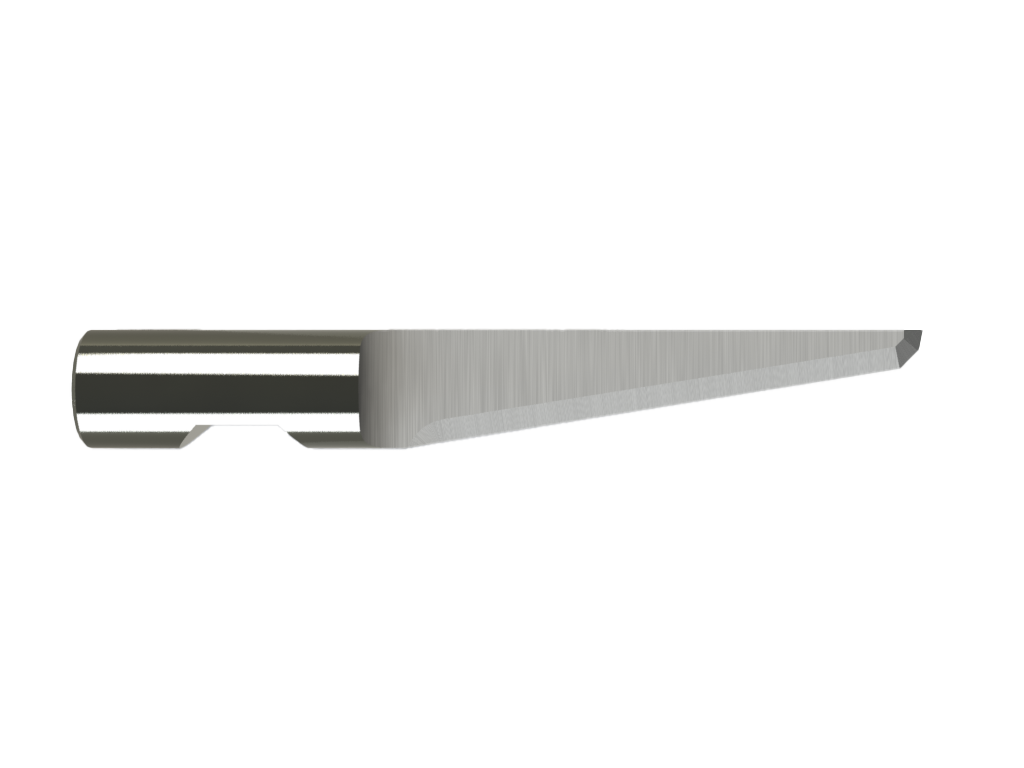

A 6mm diameter cylindrical shank providing high rigidity for oscillate cutting of textiles, fabrics, and fibrous tissues. Similar to the CS-K27r but has swept cutting edge for better performance in denser and/or thicker materials.
In stock
Description
A 6mm diameter cylindrical shank providing high rigidity for oscillate cutting of textiles, fabrics, and fibrous tissues. Similar to the CS-K27r but has swept cutting edge for better performance in denser and/or thicker materials.
Additional information
| Machine Model | Gerber, Kongsberg, Summa |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Oscillate |
| Cut Angle | 25º + 27º |
| Max Material Thickness | 20 mm |
| Blade Thickness | 6ø mm |
| Knife Type | Round Stock |
| Start Overcut | 0 mm |
| End Overcut | To be defined mm |
| Board – Soft | Corrugated Plastic, F-Sorb®, Foam Board, Fome-Cor®, Insite® Foam Board, Polyester Acoustic Board, Reboard®, Sandwich Board, Xanita® Board |
| Flexible Material | Carpet, Cork, Ejection Rubber, Foam, Magnetic Foil, Magnum Magnetics, Rubber |
| Textile | Felt, Polyester Coated |
| Corrugated Single | A Flute, B Flute, C Flute, D Flute, E Flute, F Flute |
| Corrugated Double Wall | A/B Flute, B/C Flute, B/E Flute, E/B Flute, E/C Flute, E/E Flute, F/E Flute |
| Shank Diameter | 6 mm |
