Description

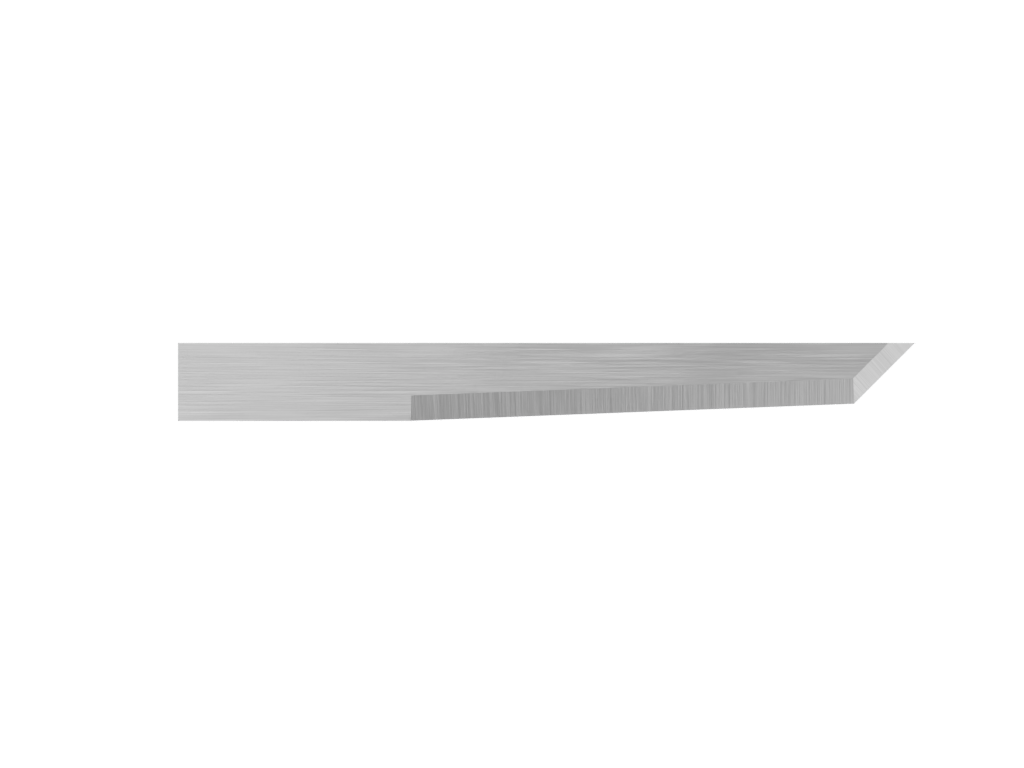

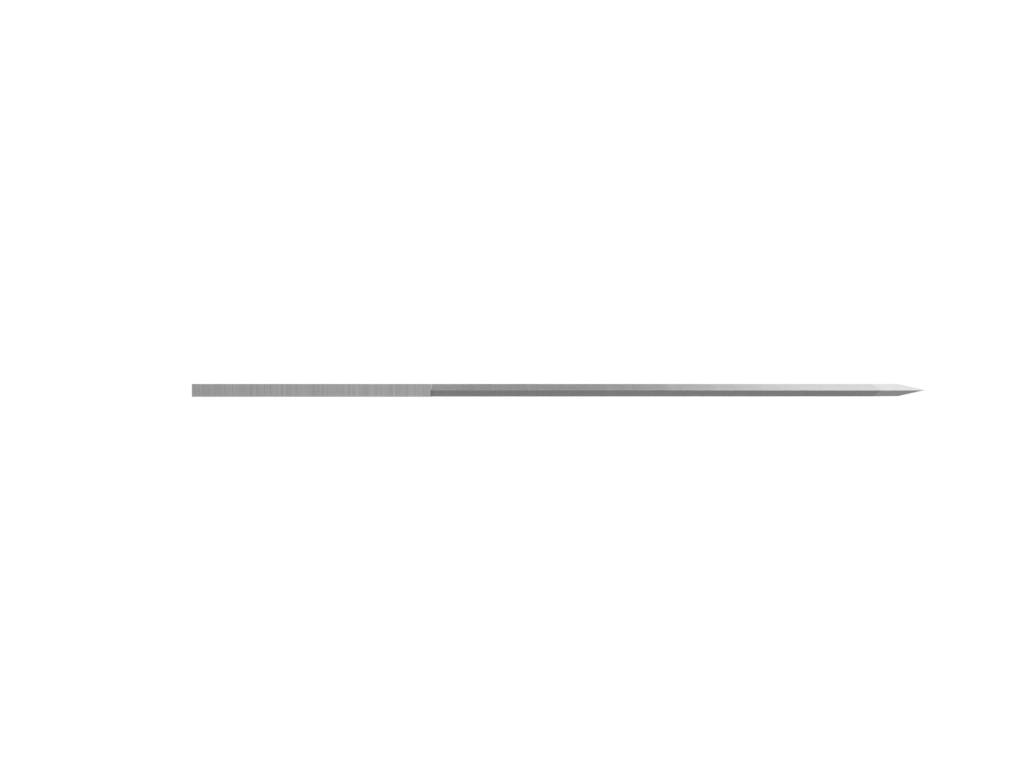

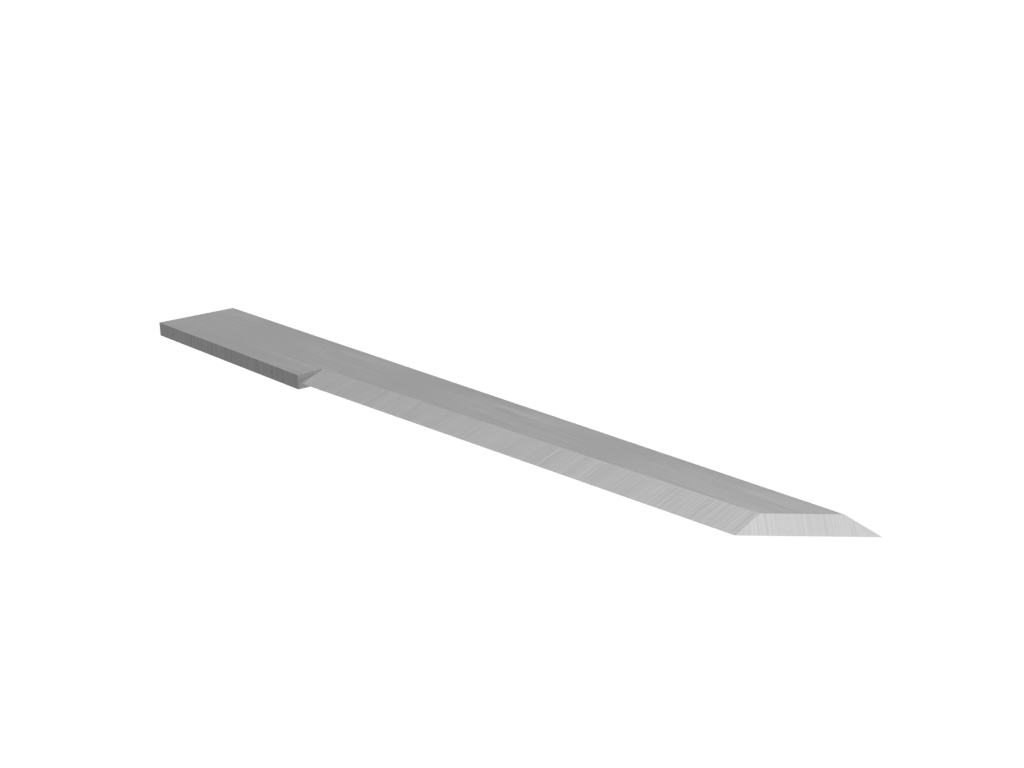

Long oscillating blade designed for cutting soft and thick materials such as foam, honeycomb, and corrugated board.
CS-K28
47,00 €
Long oscillating blade designed for cutting soft and thick materials such as foam, honeycomb, and corrugated board.
In stock
Additional information
| Machine Model | Colex, Gerber, IECHO, Kongsberg, Multicam, Summa, Zund |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Oscillate |
| Cut Angle | 4° + 45° |
| Max Material Thickness | 26 mm |
| Blade Thickness | 0.63 mm |
| Knife Type | Flat Stock |
| Start Overcut | '- mm |
| End Overcut | 1.9 + 0.07 mm |
| Board – Soft | Dispa®, F-Sorb®, Foam Board, Fome-Cor®, Insite® Foam Board, Polyester Acoustic Board, Reboard®, Xanita® Board |
| Flexible Material | Cork, Ejection Rubber, Fiber Glass, Foam, Gasket Material, Insulation, Rubber |
| Corrugated Single | A Flute, B Flute, C Flute |
| Corrugated Double Wall | A/B Flute, B/C Flute |
| Corrugated Triple Wall | A/B/A Flute, E/B/E Flute |
