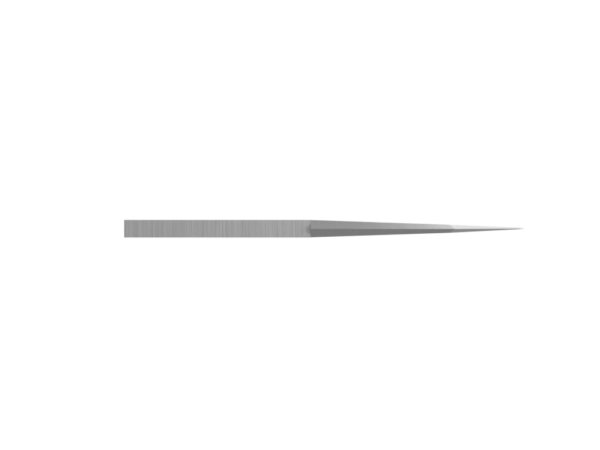

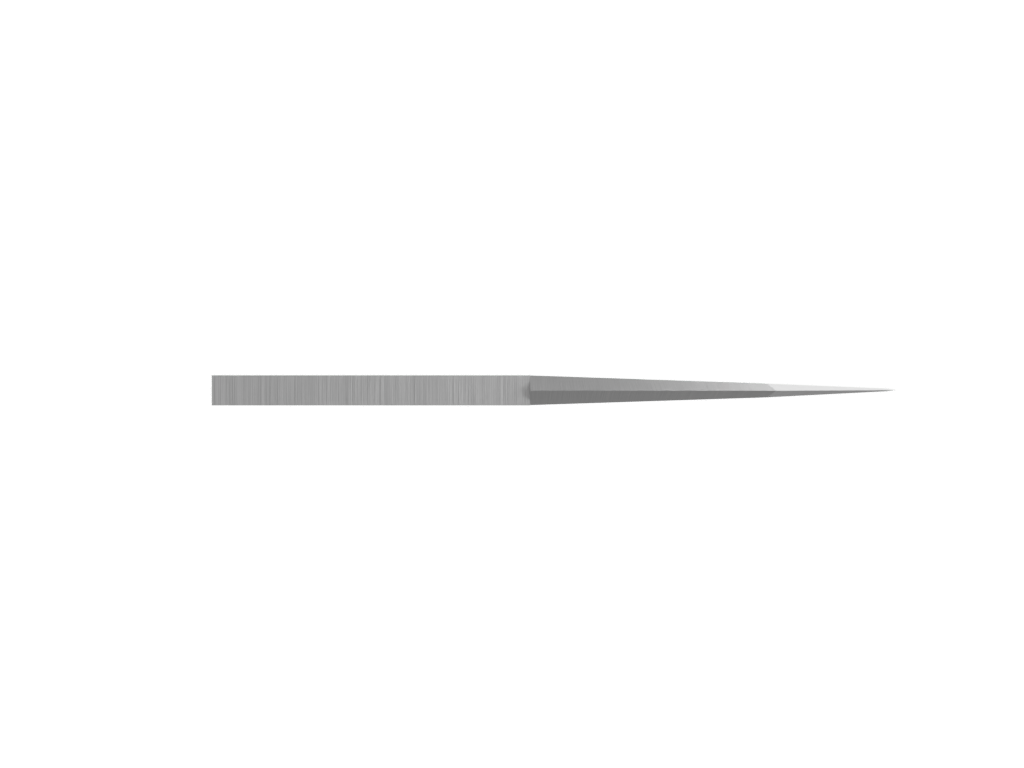

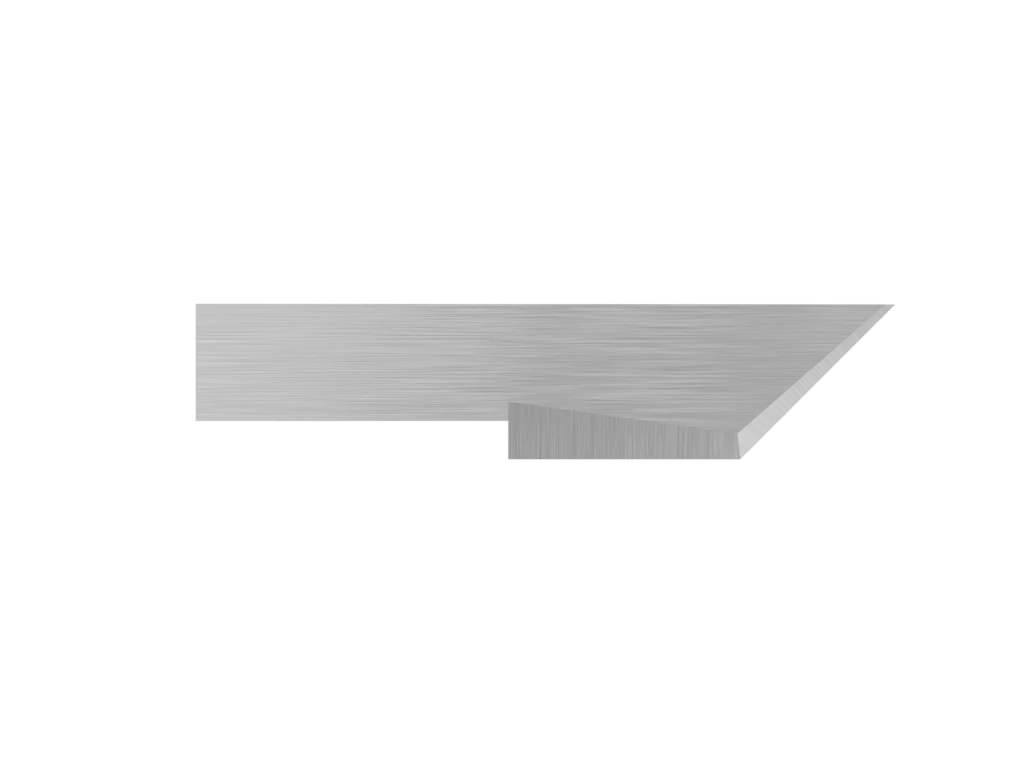

CS-K46
49,00 €
Robust blade for variety of materials. Often used for foamboards up to 4.75 mm (3/16 inch). The blade exerts little drag force, but has a larger overcut.
In stock
Description
Robust blade for variety of materials. Often used for foamboards up to 4.75 mm (3/16 inch). The blade exerts little drag force, but has a larger overcut.
Additional information
| Weight | 0,025 kg |
|---|---|
| Dimensions | 2,22 × 1,63 × ,35 cm |
| Machine Model | Gerber, IECHO, Kongsberg, Summa, Zund |
| Process Category | Knife blades |
| Process Type | Knife – Static/Drag |
| Cut Angle | 45° + 90° |
| Max Material Thickness | 20 mm |
| Blade Thickness | 1.5 mm |
| Knife Type | Flat Stock |
| Start Overcut | '- mm |
| End Overcut | 1 mm |
| Board – Soft | Corrugated Plastic, Dispa®, F-Sorb®, Foam Board, Fome-Cor®, Insite® Foam Board, Matboard, Polycarbonate Sheet, Sandwich Board, Styrene |
| Board – Rigid | EVA – Ethylene Vinyl Acetate, Expanded PVC, HDU – High Density Urethane, Komatex®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Sign Foam®, Sintra® |
| Flexible Material | Carpet, Cork, Ejection Rubber, Fiber Glass, Foam, Garlock®, Gasket Material, Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber, Tarpaulin |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Paper | Extra Heavy (114-140lbs), Heavy (93-100lbs), Light (22-56lbs), Medium (65-82lbs) |
