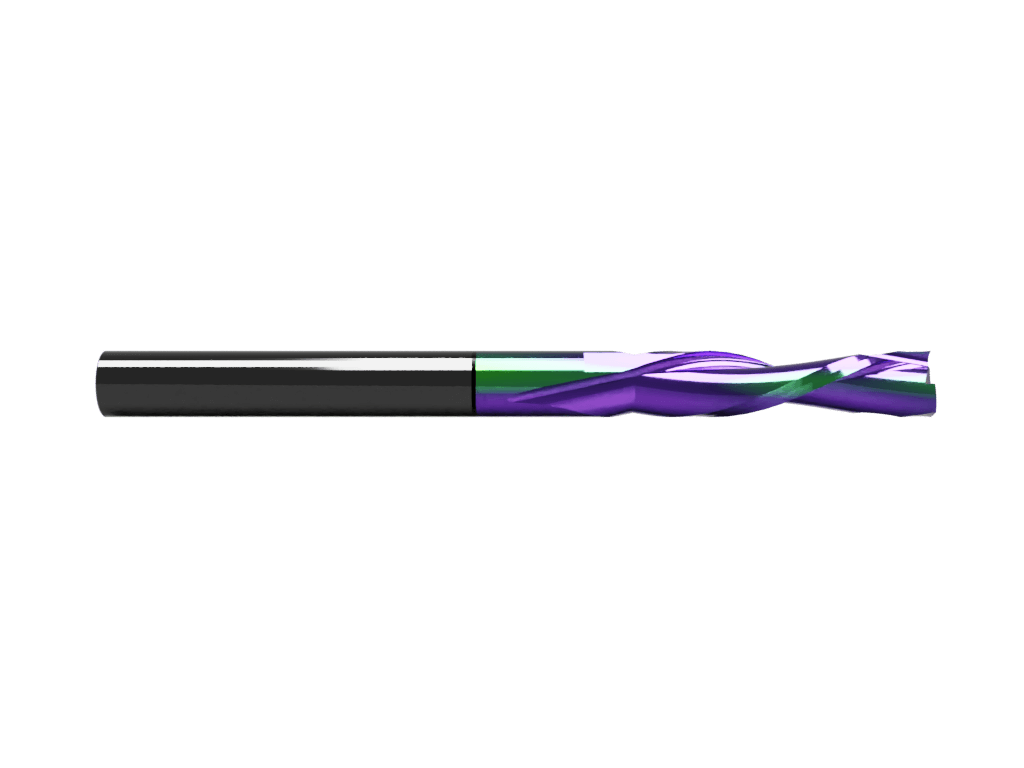

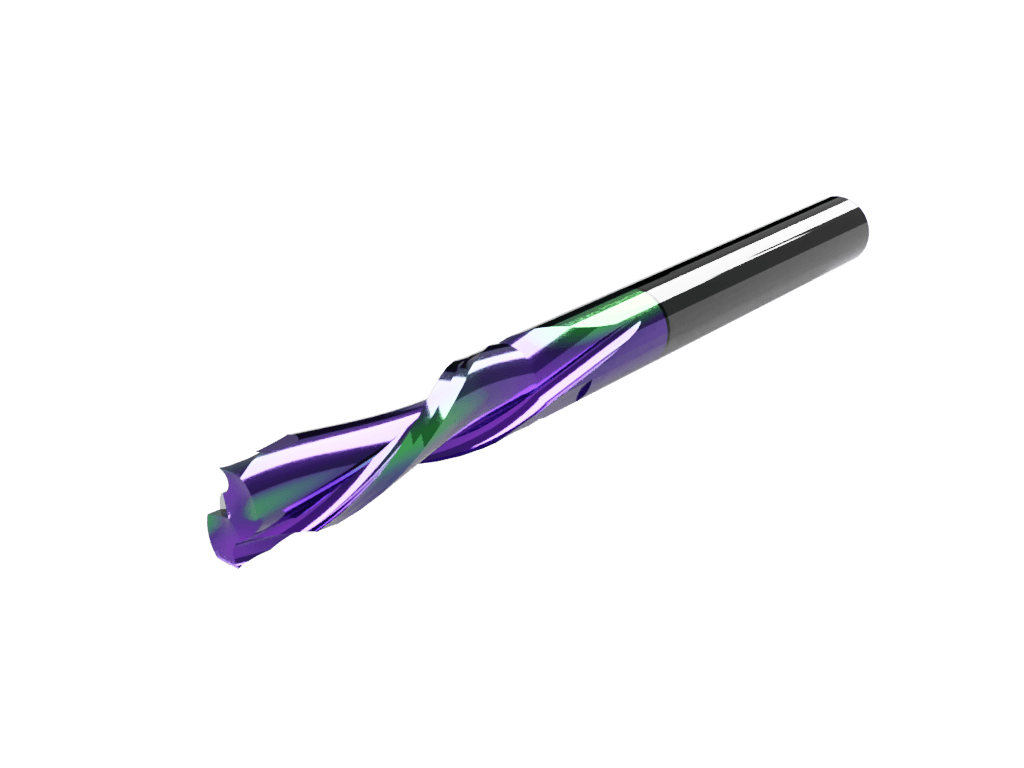

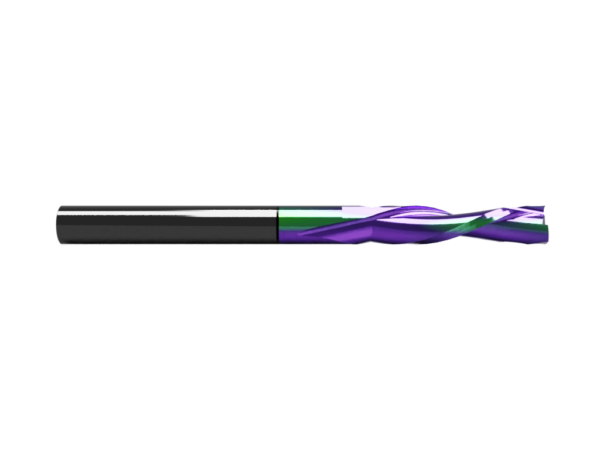

Multielement multilayered “rainbow” coated, “Super” carbide, polished, compression (both up and down flute) router bit with a 6mm cutting edge diameter and max milling depth of 22mm. Please note that this bit requires a minimum thickness of 3mm for the compression feature to work.
In stock
Multielement multilayered “rainbow” coated, “Super” carbide, polished, compression (both up and down flute) router bit with a 6mm cutting edge diameter and max milling depth of 22mm. Please note that this bit requires a minimum thickness of 3mm for the compression feature to work.
| Machine Model | Colex, Cosign, Gerber, IECHO, Kongsberg, Multicam, Summa, Zund |
|---|---|
| Process Category | Router bits |
| Process Type | Route – Compression |
| Flutes | 2 Flutes |
| Cut Angle | Compression Cut |
| Routing Diameter | 6 mm |
| Max Material Thickness | 22 mm |
| Shank Diameter | 6 mm |
| Length Overall | 60 |
| Max Rpm | 40000 |
| Board – Rigid | ACM, Acrylic, Alucobond, Dibond®, Dilite, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, IGEPA Bond Premium, IGPA, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Reynobond, Sign Foam®, Sintra®, Ultra Board® |
| Wood | Balsa, Birch Plywood, MDF, Poplar |
| Material | Board – Rigid, Wood |
