CS-Rd125-A
45,00 €

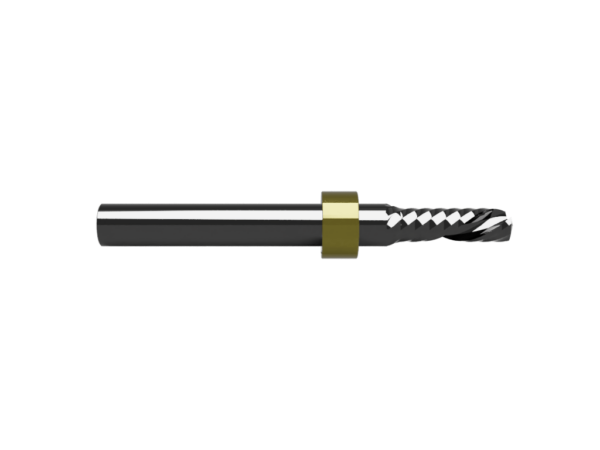

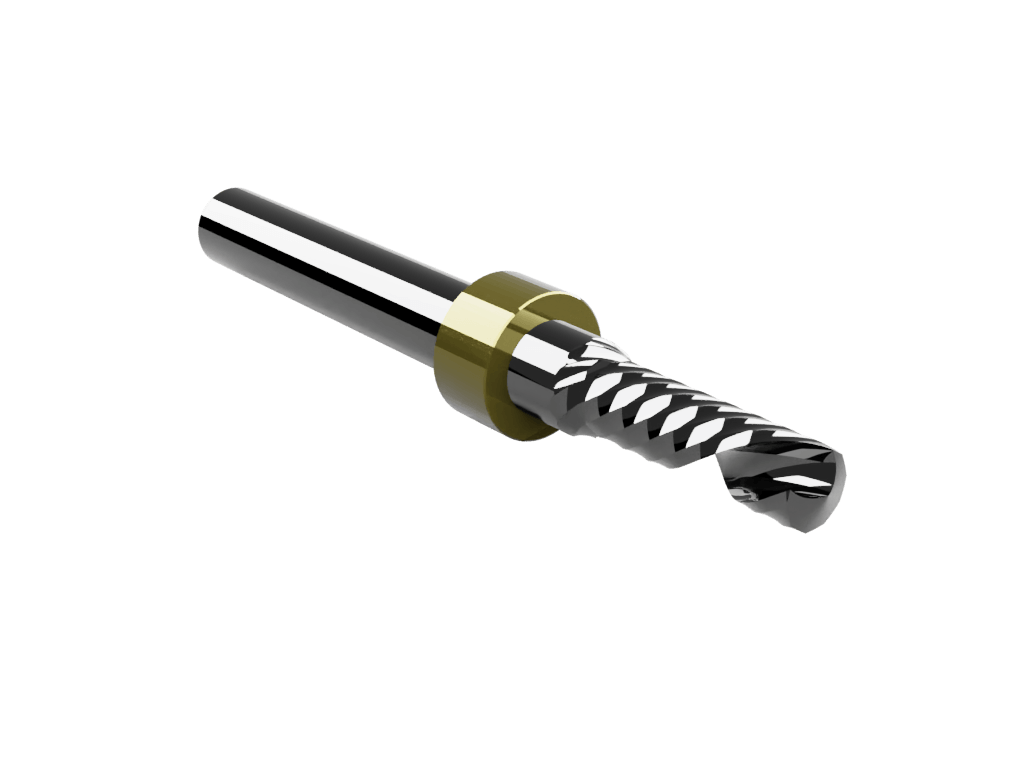

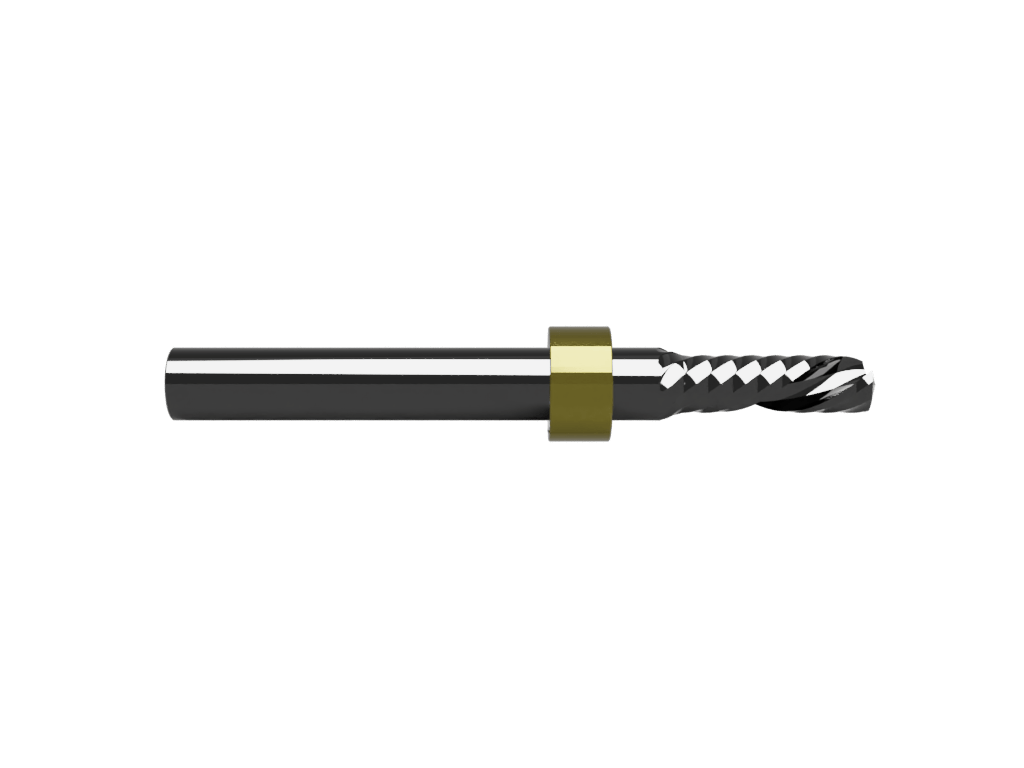

Multi-purpose, single O-flute, left-hand spiral (down cut) router bit with a 5mm cutting edge diameter and max milling depth of 14mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.
Description
Multi-purpose, single O-flute, left-hand spiral (down cut) router bit with a 5mm cutting edge diameter and max milling depth of 14mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.
Additional information
| Weight | 0,1 kg |
|---|---|
| Machine Model | IECHO, Zund |
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 1 Flute |
| Cut Angle | Down Cut |
| Routing Diameter | 5 mm |
| Max Rpm | 50000 |
| Max Cut Length | 18 |
| Shank Diameter | 6 mm |
| Length Overall | 60 |
| Board – Rigid | Acrylic, Dibond®, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board® |
| Metal | Aluminum, ChromaLuxe® HD Aluminum, Hard Brass |
| Wood | Birch Plywood, MDF, Poplar |
