CS-Rd136-A
CS-Rd136-A - Image 2

CS-Rd136-A

49,00 €

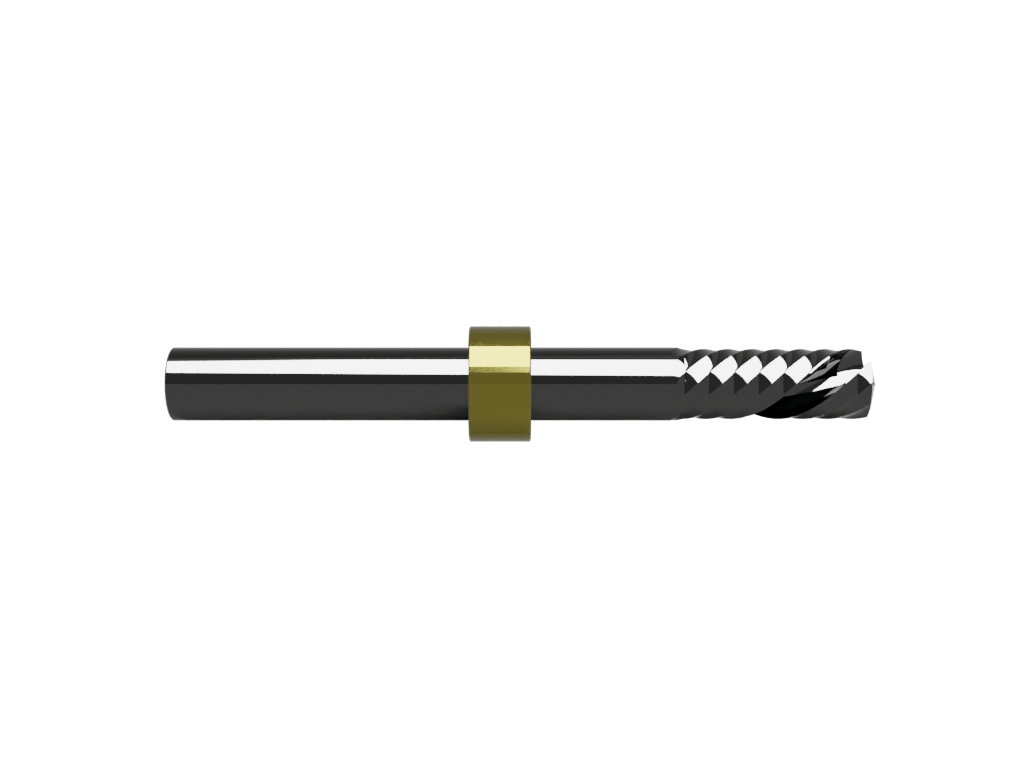

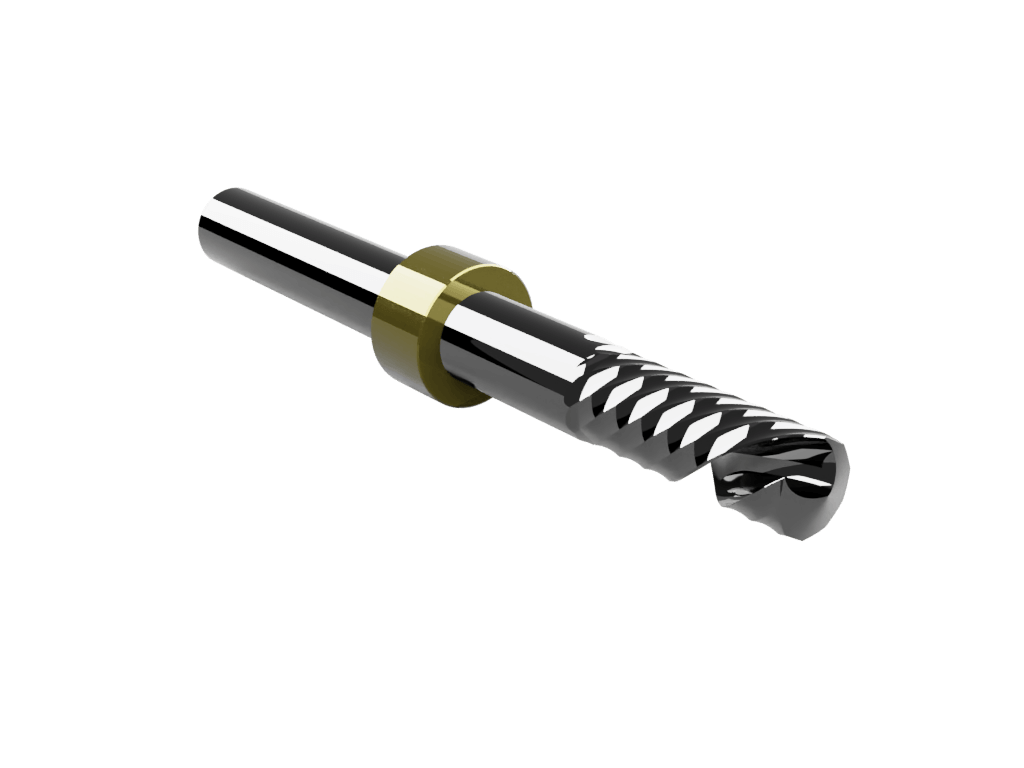

Polished, single O-flute, left-hand spiral (down cut) router bit with a 6mm cutting edge diameter and max milling depth of 22mm. With stop ring (for use with the Zund ARC system).

SKU: csrd136a
Category: , ,

Description

Polished, single O-flute, left-hand spiral (down cut) router bit with a 6mm cutting edge diameter and max milling depth of 22mm. With stop ring (for use with the Zund ARC system).

Additional information

Weight 0,1 kg
Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

1 Flute
Cut Angle

Down Cut
Routing Diameter

6 mm
Max Rpm

50000
Max Cut Length

22
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

ACM, Dibond®, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board®
Wood

Birch Plywood, MDF, Poplar
