CS-Rd525-A (Coated)
CS-Rd525-A (Coated) - Image 2

CS-Rd525-A (Coated)

66,00 €

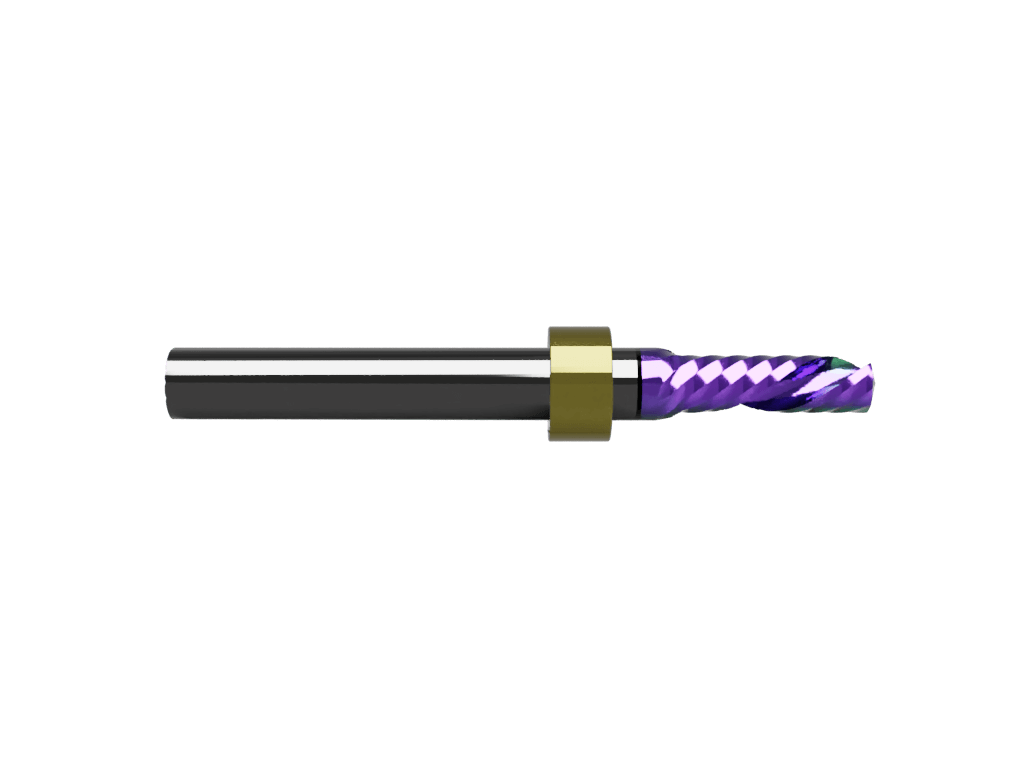

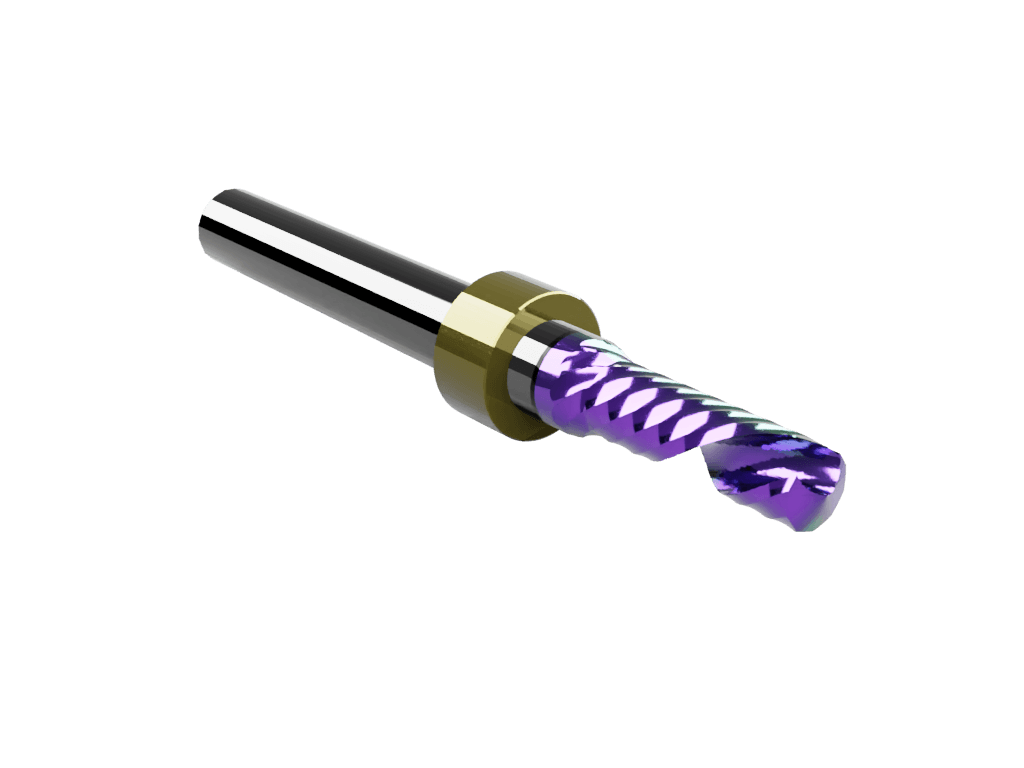

Multielement multilayered “rainbow” coated, “Super” carbide, polished, multi-purpose, single O-flute, left-hand spiral (down cut) router bit with a 5mm cutting edge diameter and max milling depth of 16mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

SKU: csrd525a
Category: , , ,

Description

22,92

Multielement multilayered “rainbow” coated, “Super” carbide, polished, multi-purpose, single O-flute, left-hand spiral (down cut) router bit with a 5mm cutting edge diameter and max milling depth of 16mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

Additional information

Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

1 Flute
Cut Angle

Down Cut
Routing Diameter

5 mm
Max Rpm

50000
Max Cut Length

16
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

ACM, Acrylic, Alucobond, Dibond®, Dilite, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, IGEPA Bond Premium, IGPA, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Reynobond, Sign Foam®, Sintra®, Ultra Board®
Metal

Aluminum, ChromaLuxe® HD Aluminum, Hard Brass
Wood

Balsa, Birch Plywood, MDF, Poplar
