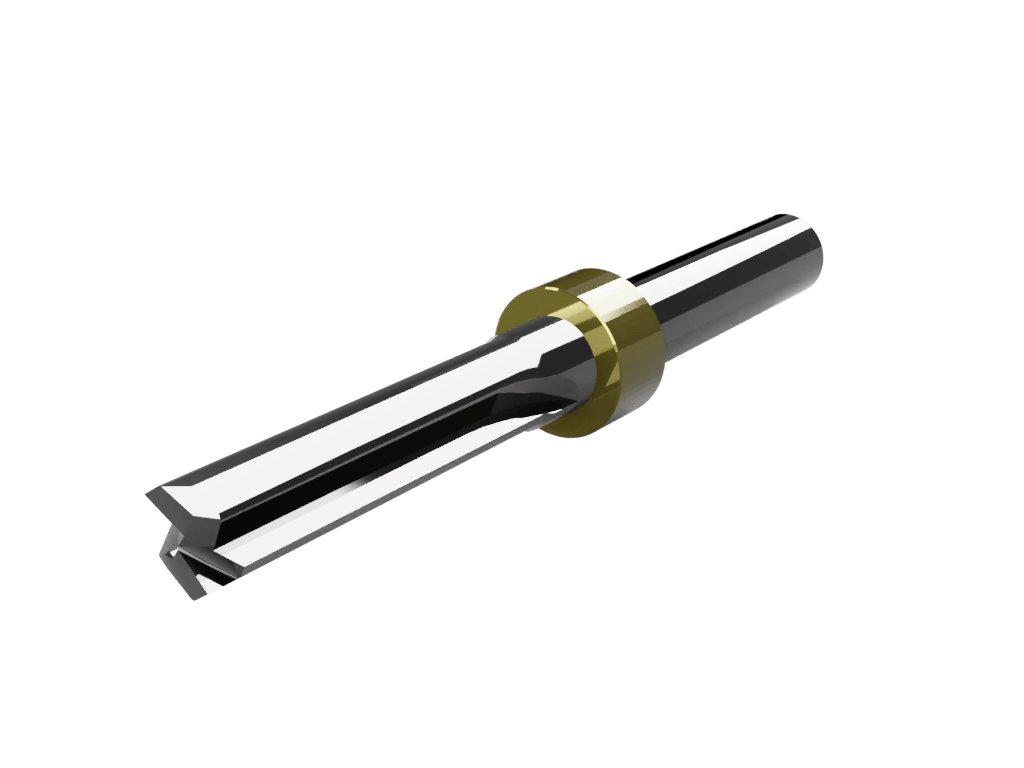

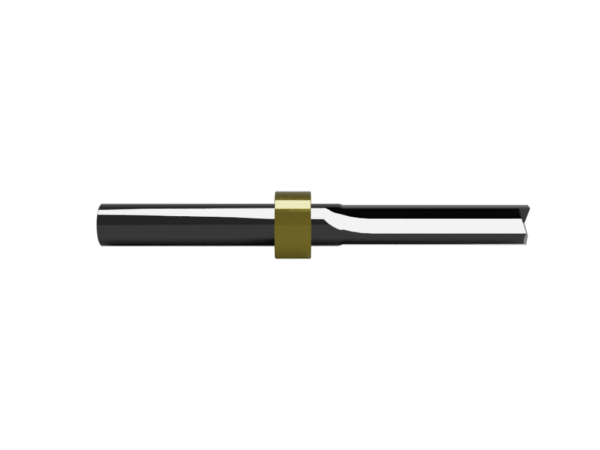

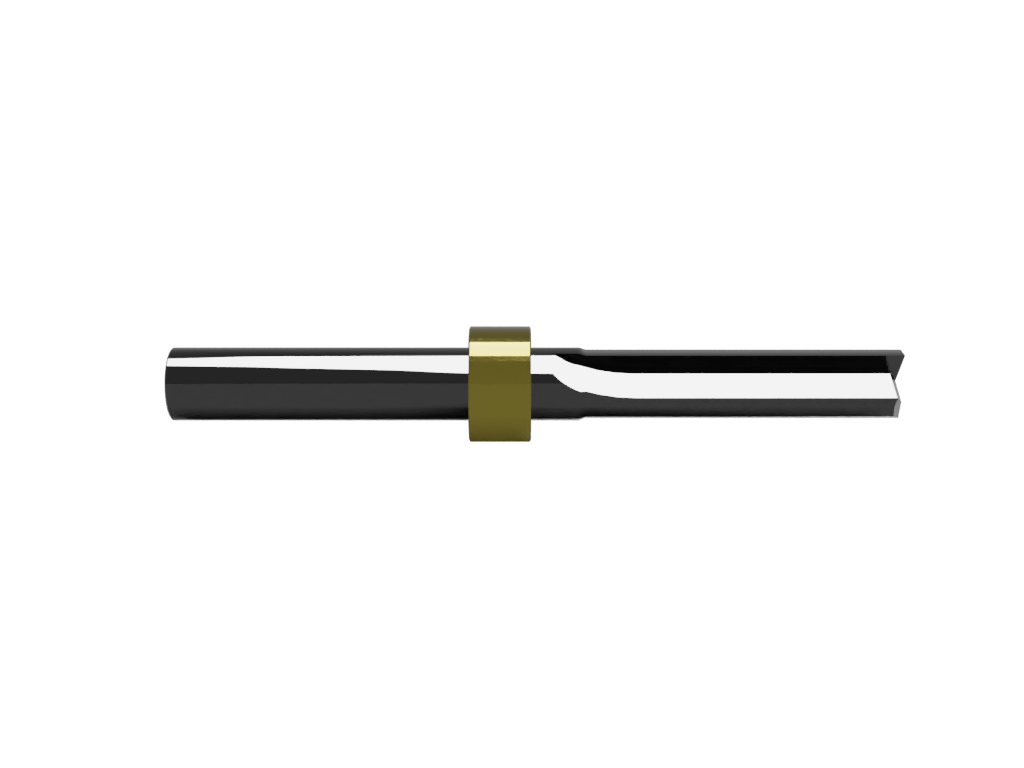

CS-Rs625-A
CS-Rs625-A - Image 2

CS-Rs625-A

59,00 €

Router bit for extruded polystyrene such as Gatorplast, Ultraboard, Kappa with direct print or blank.. “Super” carbide, 2-flute, straight flute router bit with a 6mm cutting edge diameter and max milling depth of 25.4mm (1 inch). With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

SKU: csrs625a
Category: ,

Description

Router bit for extruded polystyrene such as Gatorplast, Ultraboard, Kappa with direct print or blank.. “Super” carbide, 2-flute, straight flute router bit with a 6mm cutting edge diameter and max milling depth of 25.4mm (1 inch). With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

Additional information

Weight 0,04375 kg
Dimensions 2,6875 × 0,5 × 0,5 cm
Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

2 Flutes
Cut Angle

Straight Cut
Routing Diameter

6 mm
Max Cut Length

26
Max Rpm

50000
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Plaskolite®, Precision Board®, Sign Foam®, Ultra Board®
