CS-Rs625

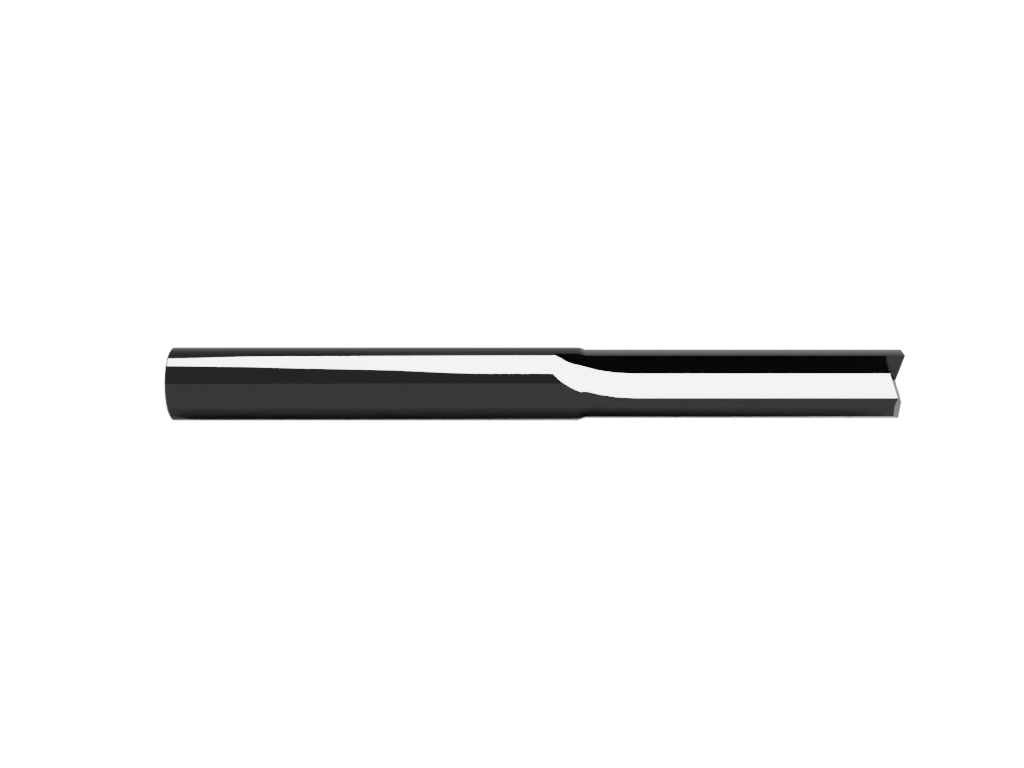

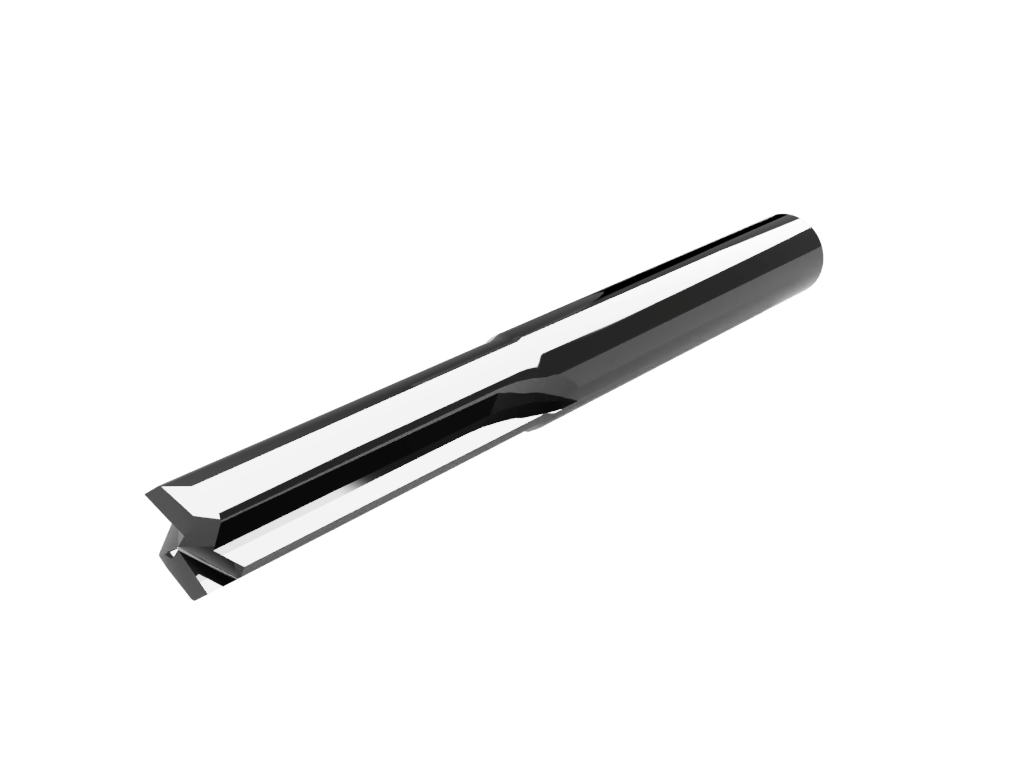

CS-Rs625 is a router bit for professional digital cutting environments. Router bit for extruded polystyrene such as Gatorplast, Ultraboard, Kappa with direct print or blank.. ?Super? carbide, 2-flute, straight flute router bit with a 6mm cutting edge diameter and max milling depth of 25.4mm (1 inch). It is made for shops running Colex, Cosign, IECHO, Kongsberg, Multicam, Summa and Zund cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for route – through work and supports material thicknesses up to 26 mm with a Straight Cut cut angle. The physical dimensions are 2.6875 cm long, 0.5 cm wide and 0.5 cm high, so it can be checked quickly against existing tool storage, ordering records and machine documentation.

In day-to-day production, CS-Rs625 is especially relevant for flutes such as 2 Flutes, routing diameter such as 6, max rpm such as 50000, shank diameter such as 6 and length overall such as 60. These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

Because blade choice affects corners, lead-ins and small details, operators should match this item with the cut parameters recommended for the relevant machine and substrate.

CS-Rs625 is also listed with compatible or alternative reference terms including 42458794, BIT-MSD06-6025-64, Kongsberg BIT-MSD06-6025-64 (42458794), X2-625S and XDS-625. These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
