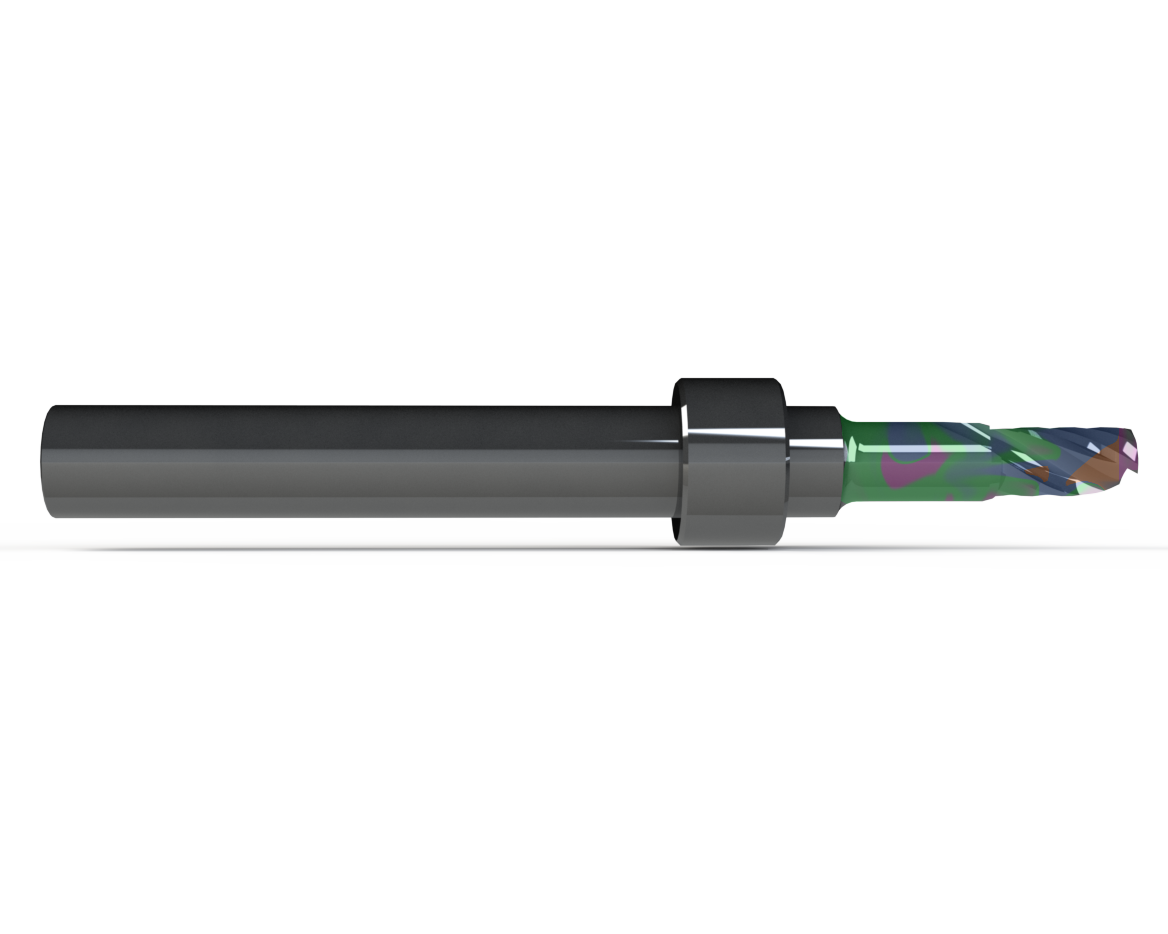

CS-Ru209-A (Coated, Polished)

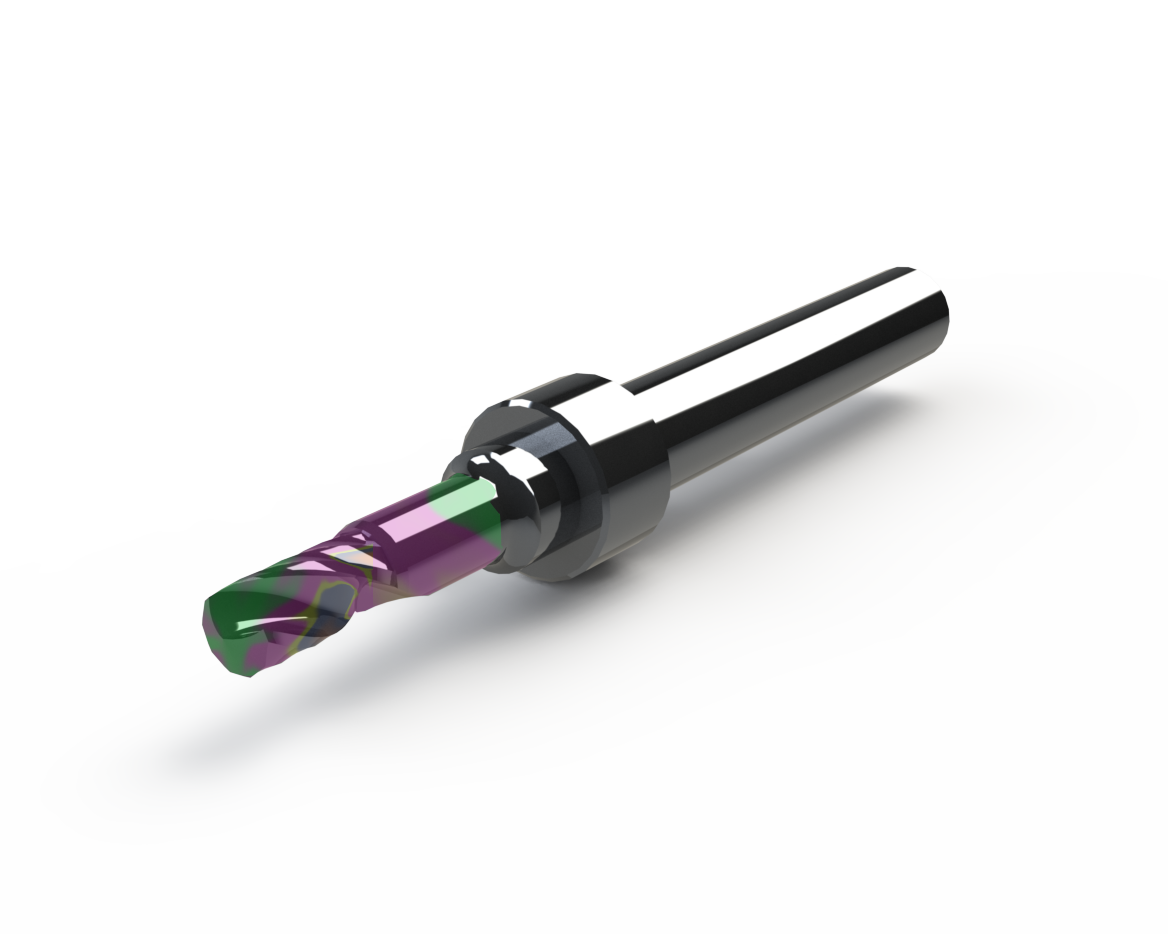

CS-Ru209-A (Coated, Polished) - Image 2

CS-Ru209-A (Coated, Polished)

51,00 €

Specialized ACM (aluminum composite material) bit. Right-hand spiral (up cut) router bit with a single 4mm cutting edge diameter and max milling depth of 8mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer).

SKU: csru209a
Category: , ,

Description

Specialized ACM (aluminum composite material) bit. Right-hand spiral (up cut) router bit with a single 4mm cutting edge diameter and max milling depth of 8mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer).

Additional information

Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

1 Flute
Cut Angle

Up Cut
Routing Diameter

4 mm
Max Rpm

50000
Max Cut Length

8
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

ACM, Alucobond, Dibond®, Dilite, IGEPA Bond Premium, IGPA, Max Metal®, Reynobond
Wood

Balsa, Birch Plywood, MDF, Poplar
