CS-Ru504 (Coated)
CS-Ru504 (Coated) - Image 2

CS-Ru504 (Coated)

58,00 €

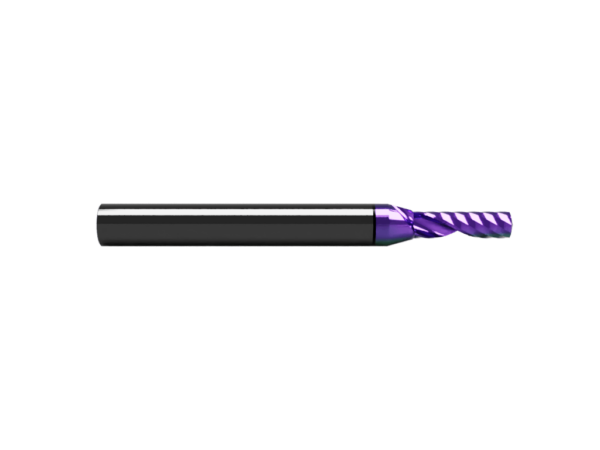

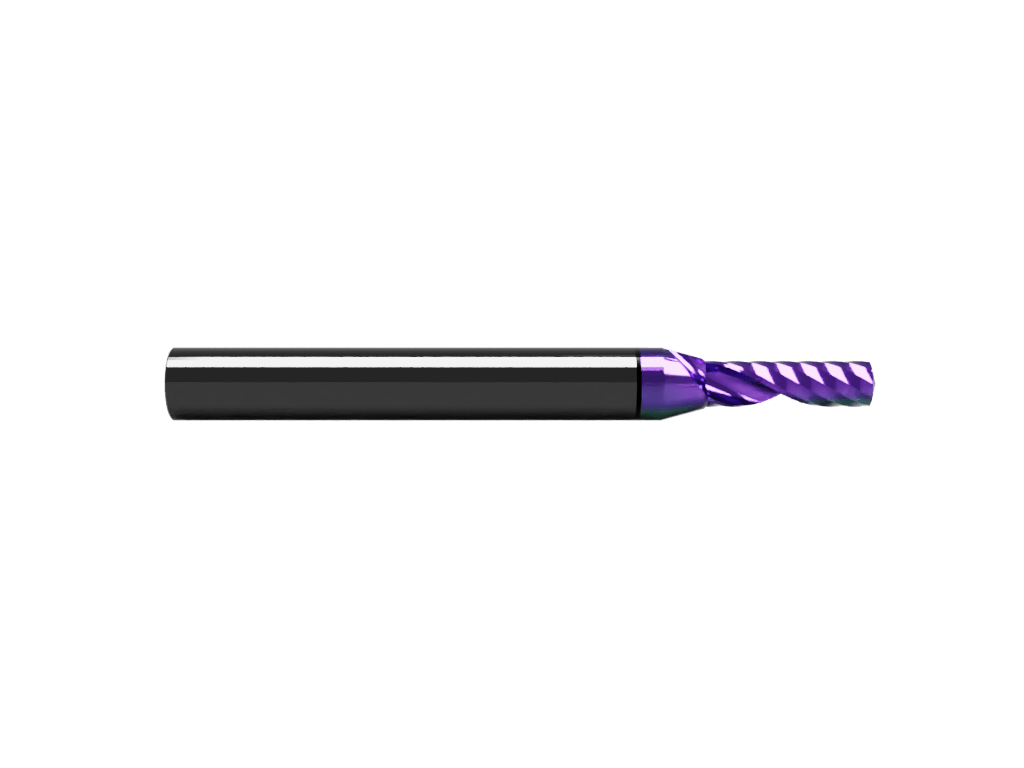

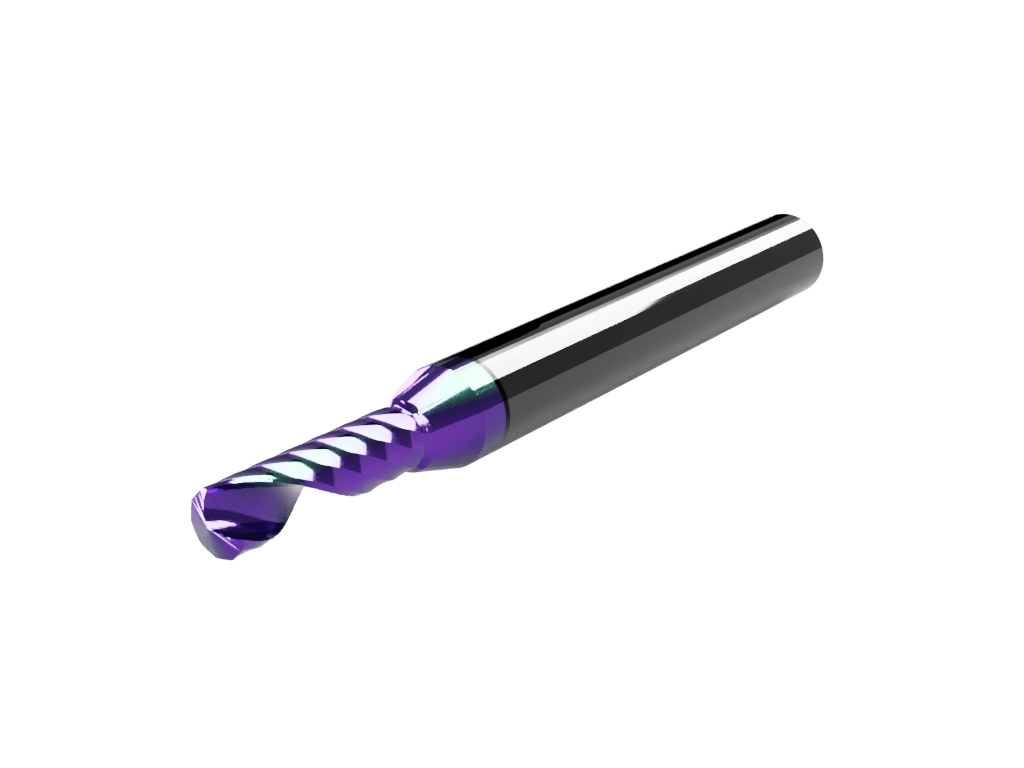

Multielement multilayered “rainbow” coated, “Super” carbide, polished, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 4mm cutting edge diameter and max milling depth of 14mm.

27 in stock (can be backordered)

SKU: csru504
Category: ,

Description

Multielement multilayered “rainbow” coated, “Super” carbide, polished, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 4mm cutting edge diameter and max milling depth of 14mm.

Additional information

Machine Model

Colex, Gerber, IECHO, Kongsberg, Multicam, Summa, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

1 Flute
Cut Angle

Up Cut
Routing Diameter

4 mm
Max Rpm

50000
Max Material Thickness

14 mm
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

ACM, Acrylic, Alucobond, Dibond®, Dilite, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, IGEPA Bond Premium, IGPA, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Reynobond, Sign Foam®, Sintra®, Ultra Board®
Metal

Aluminum, ChromaLuxe® HD Aluminum, Hard Brass
Wood

Balsa, Birch Plywood, MDF, Poplar
