CS-Ru5101-A (Coated)
CS-Ru5101-A (Coated) - Image 2

CS-Ru5101-A (Coated)

70,00 €

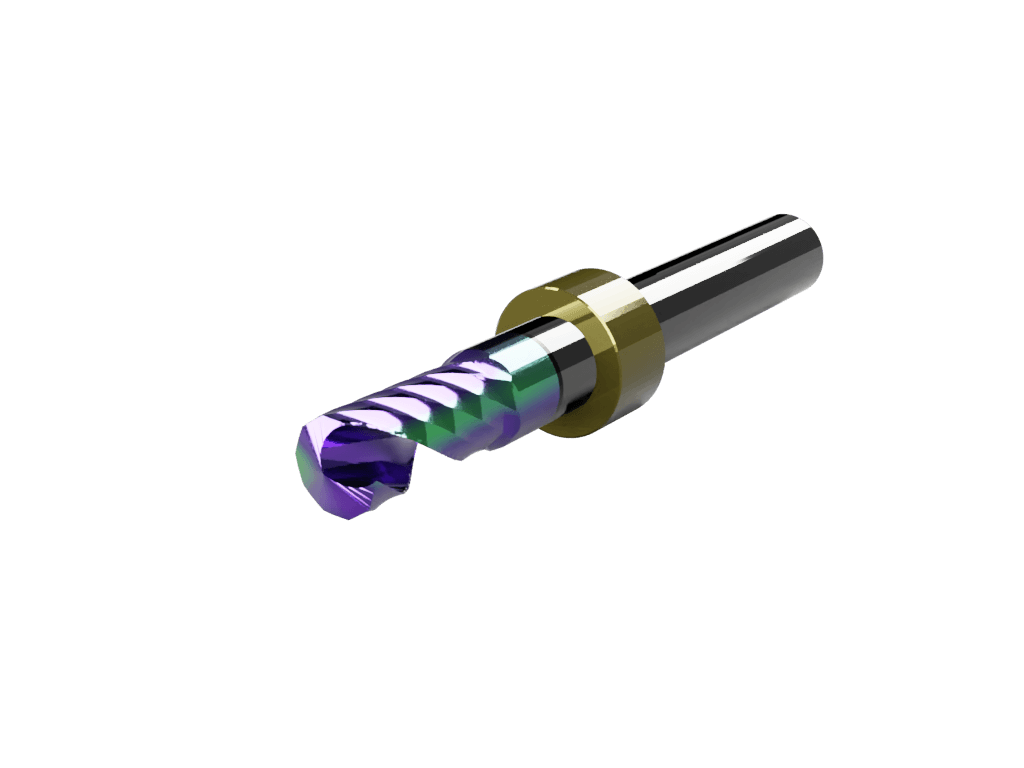

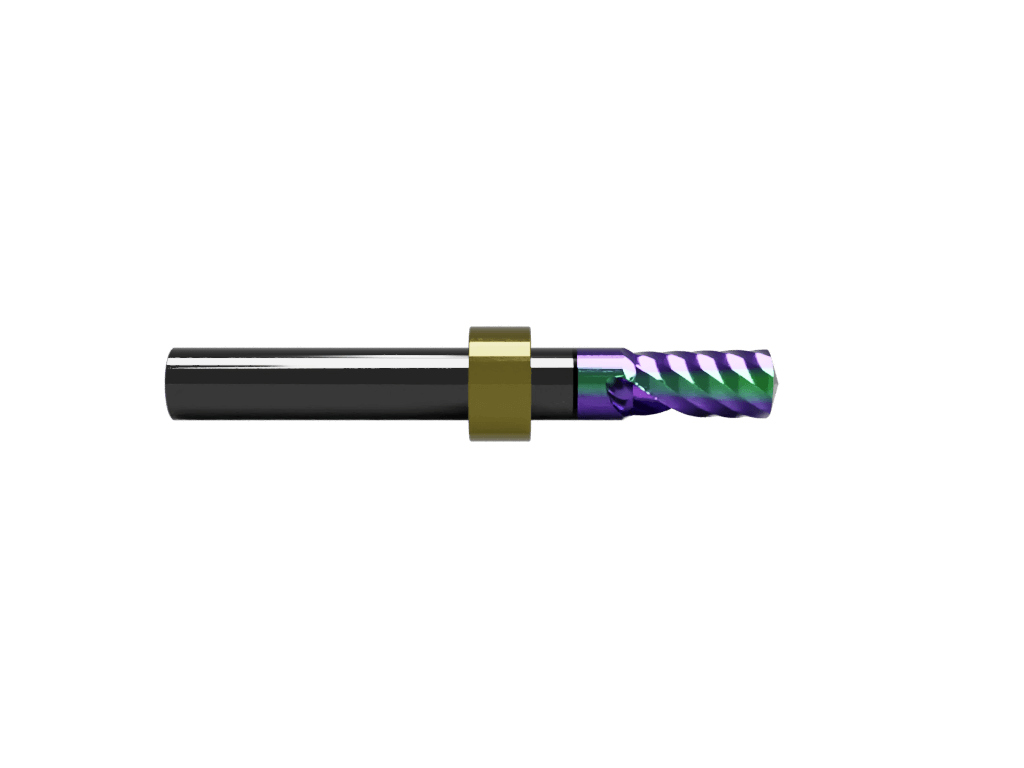

Multielement multilayered “rainbow” coated, “Super” carbide, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter and max milling depth of 12mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.

SKU: csru5101a
Category: , , ,

Description

Multielement multilayered “rainbow” coated, “Super” carbide, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter and max milling depth of 12mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.

Additional information

Weight 0,04375 kg
Dimensions 2,6875 × 0,5 × 0,5 cm
Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

1 Flute
Cut Angle

Up Cut
Routing Diameter

6 mm
Max Cut Length

12
Max Rpm

50000
Shank Diameter

6 mm
Length Overall

50
Board – Rigid

Acrylic, Dibond®, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board®
Metal

Aluminum, ChromaLuxe® HD Aluminum, Hard Brass
Wood

Birch Plywood, MDF, Poplar
