CS-Rv141 (Coated)

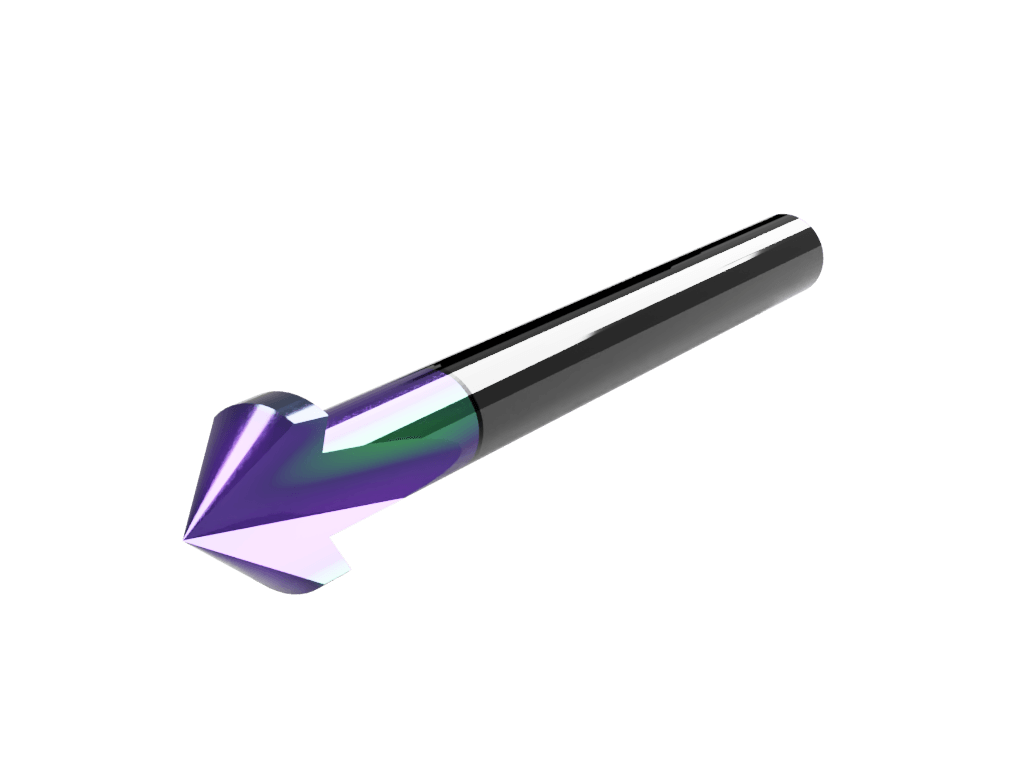

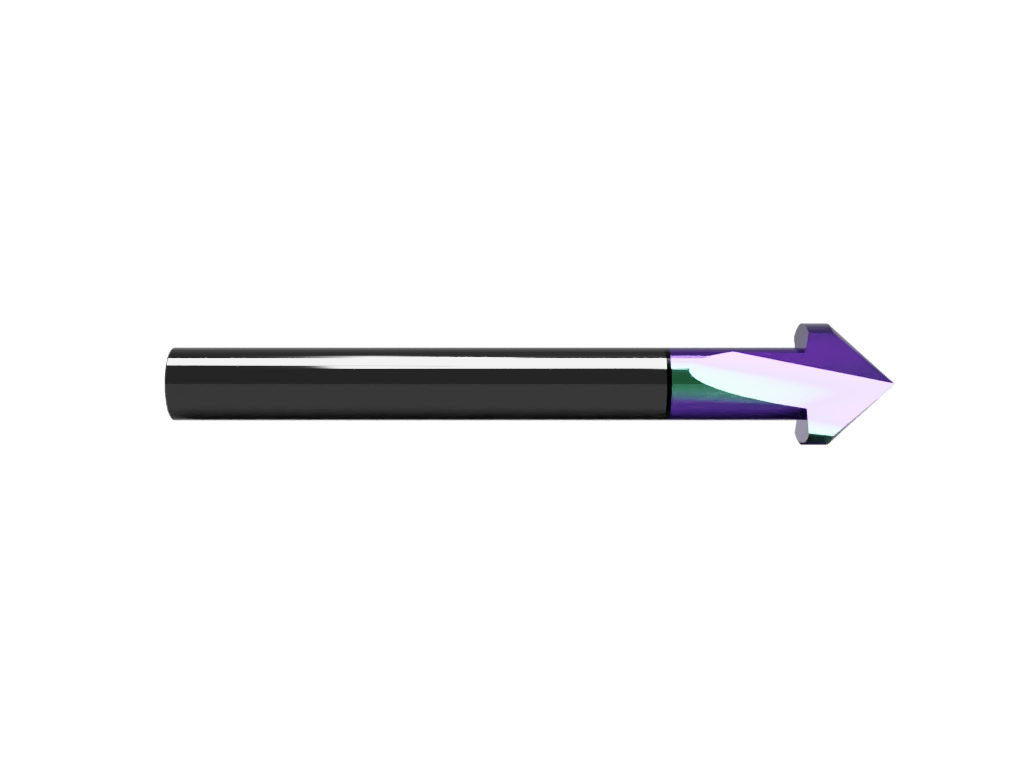

CS-Rv141 (Coated) is a router bits > v-cut bit for professional digital cutting environments. “Super” carbide, coated, 2-flute, V-cut router bit with a 10mm cutting edge diameter and max milling depth of 5mm. It is made for shops running Colex, Gerber, IECHO, Kongsberg, Multicam, Summa and Zund cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for route – v-fold work and supports material thicknesses up to 5 mm with a 90 degrees cut angle.

In day-to-day production, CS-Rv141 (Coated) is especially relevant for flutes such as 2 Flutes, routing diameter such as 10, max rpm such as 40000, shank diameter such as 6 and length overall such as 60. These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

Because blade choice affects corners, lead-ins and small details, operators should match this item with the cut parameters recommended for the relevant machine and substrate.

CS-Rv141 (Coated) is also listed with compatible or alternative reference terms including 3910799, 42475905, 500-9863, BIT-EBV06-90/16-2F, CGR141, Colex T00545, ER6C4 45 degrees, IECHO ER6C4 45 degrees, Kongsberg BIT-EBV06-90/16-2F (42475905), R141, Summa 500-9863 and Zund R141 (3910799). These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
