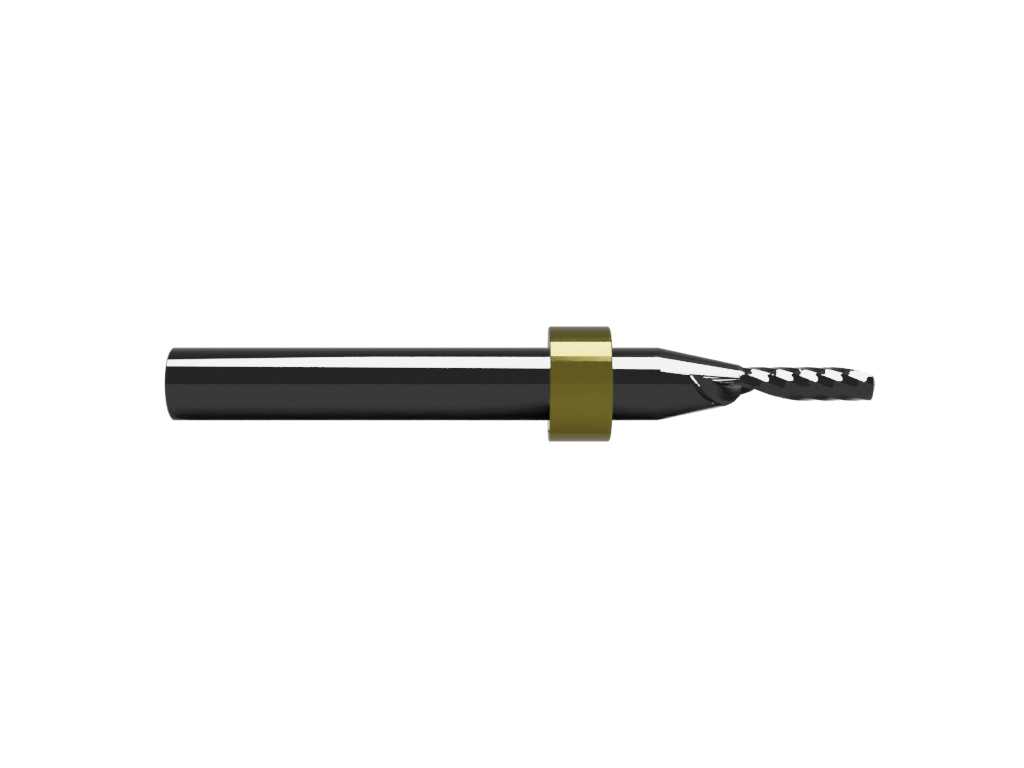

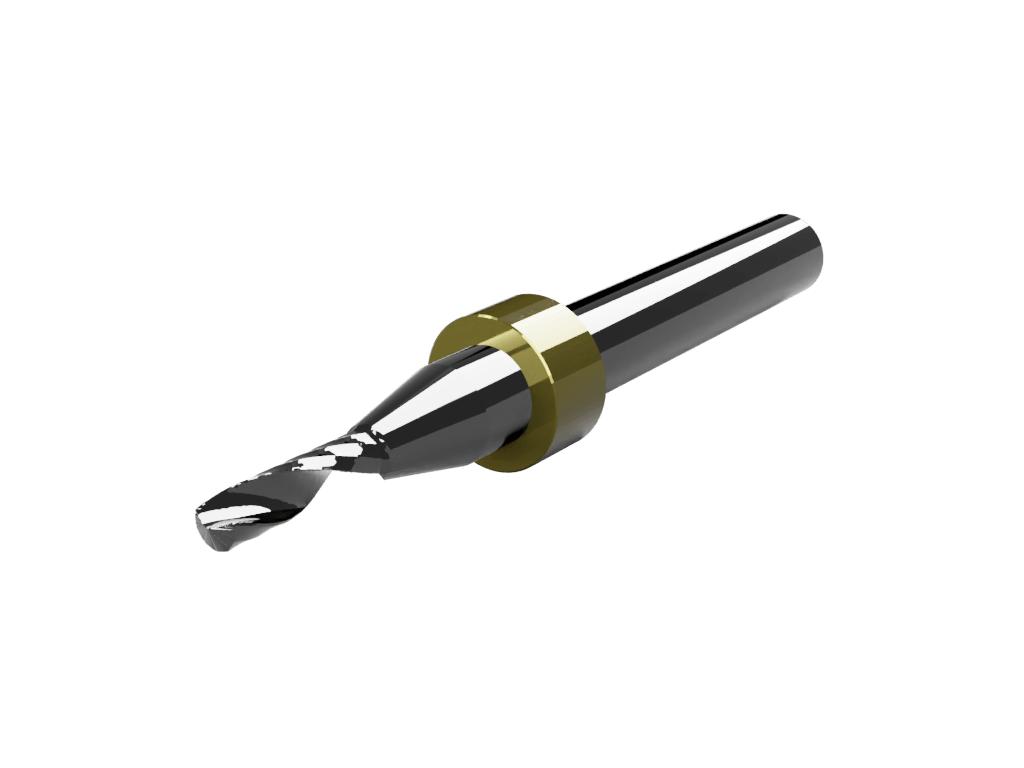

Multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 2mm cutting edge diameter and max milling depth of 6mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.
Multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 2mm cutting edge diameter and max milling depth of 6mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.
| Machine Model | IECHO, Zund |
|---|---|
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 1 Flute |
| Cut Angle | Up Cut |
| Routing Diameter | 2 mm |
| Max Rpm | 50000 |
| Max Cut Length | 7 |
| Shank Diameter | 6 mm |
| Length Overall | 60 |
| Board – Rigid | Acrylic, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board® |
| Wood | Birch Plywood, MDF, Poplar |
