CS-Ru206-A
CS-Ru206-A - Image 2

CS-Ru206-A

47,00 €

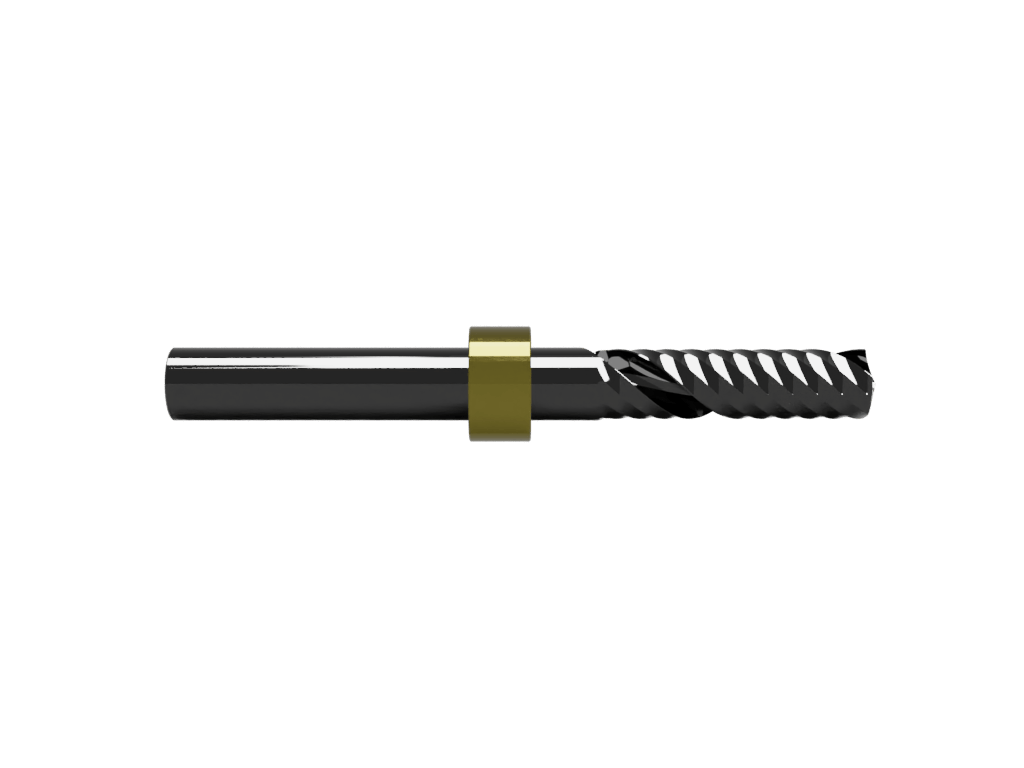

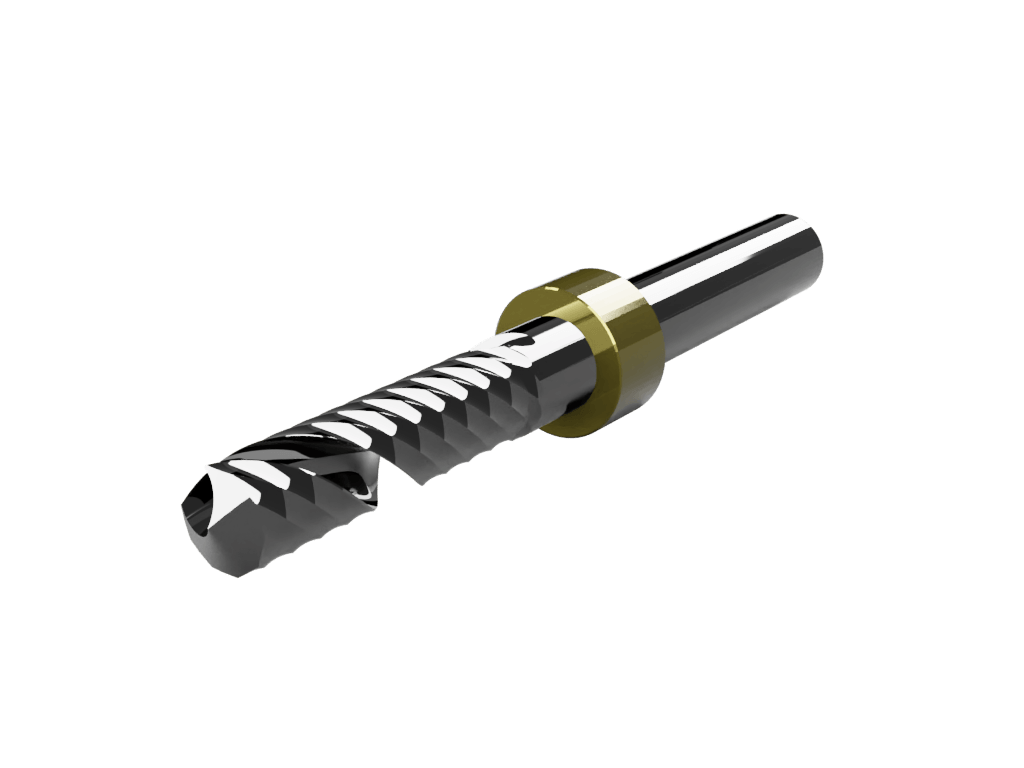

Multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter and max milling depth of 22mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.

SKU: csru206a
Category: , ,

Description

Multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter and max milling depth of 22mm. With stop ring (for use with the Zund ARC system and IECHO Tools Changer). If cutting metals or ACM we highly recommend our Rainbow/DLC coated 500 series.

Additional information

Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

1 Flute
Cut Angle

Up Cut
Routing Diameter

6 mm
Max Rpm

50000
Max Cut Length

22
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

Acrylic, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board®
Wood

Birch Plywood, MDF, Poplar
Metal

Aluminum, ChromaLuxe® HD Aluminum, Hard Brass
