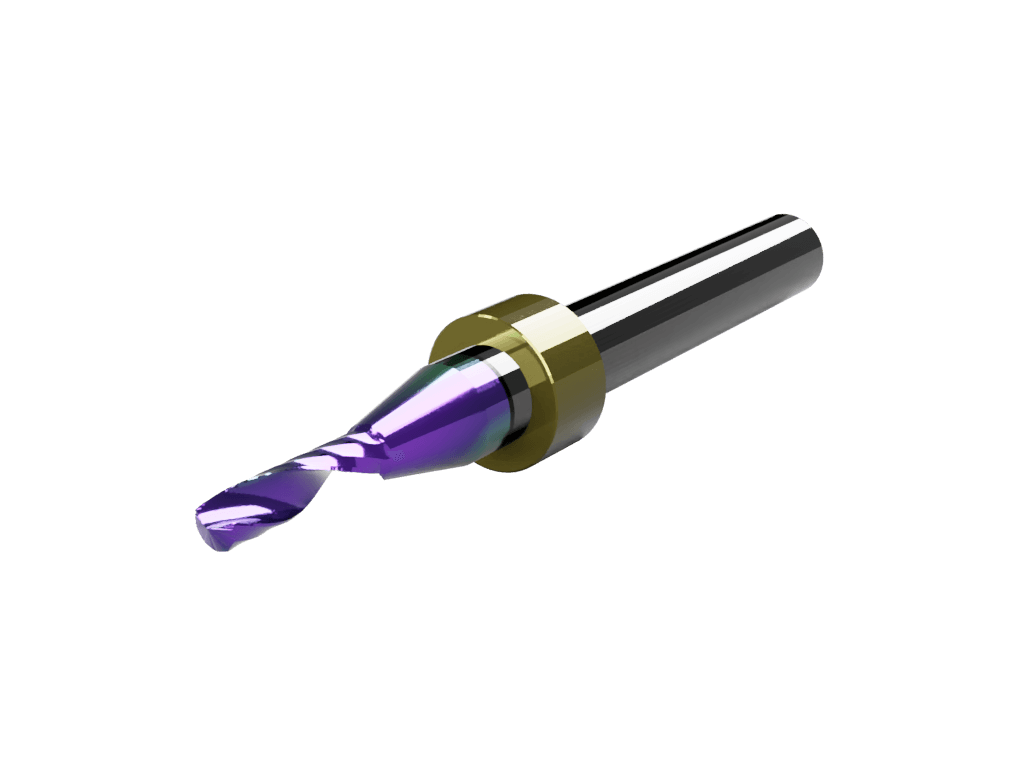

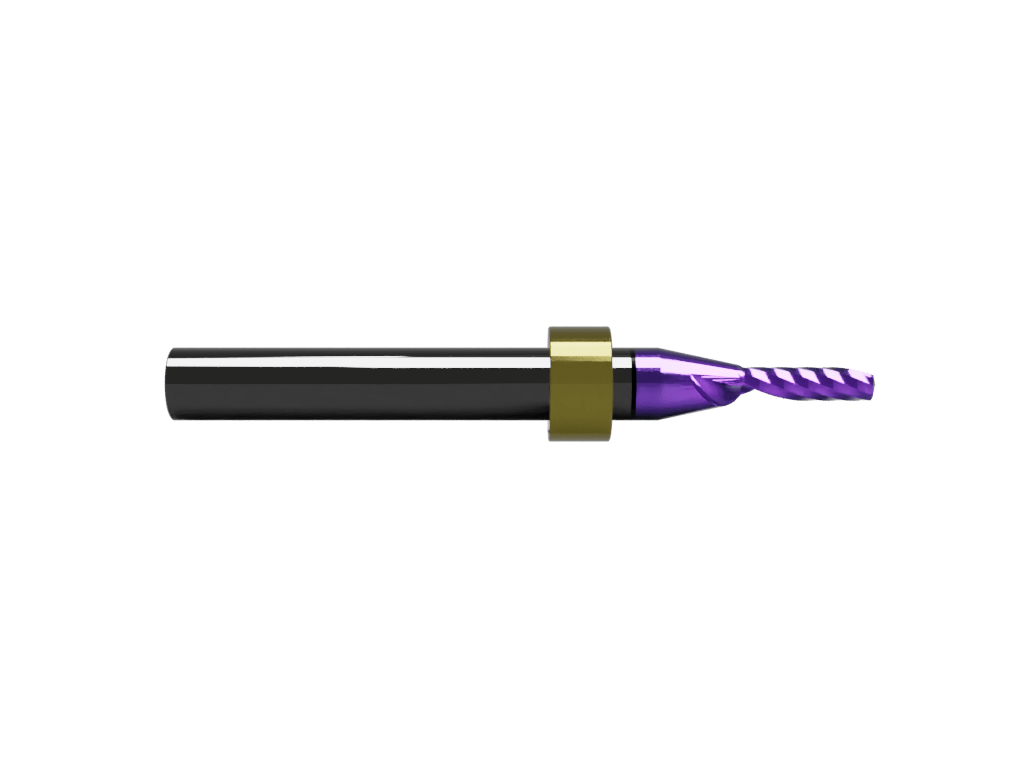

Multielement, multilayered “rainbow” coated, “Super” carbide, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 3mm cutting edge diameter and max milling depth of 11mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
Multielement, multilayered “rainbow” coated, “Super” carbide, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 3mm cutting edge diameter and max milling depth of 11mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
| Machine Model | IECHO, Zund |
|---|---|
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 1 Flute |
| Cut Angle | Up Cut |
| Routing Diameter | 3 mm |
| Max Rpm | 50000 |
| Max Cut Length | 11 |
| Shank Diameter | 6 mm |
| Length Overall | 60 |
| Board – Rigid | ACM, Acrylic, Alucobond, Dibond®, Dilite, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, IGEPA Bond Premium, IGPA, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Reynobond, Sign Foam®, Sintra®, Ultra Board® |
| Metal | Aluminum, ChromaLuxe® HD Aluminum, Hard Brass |
| Wood | Birch Plywood, MDF, Poplar |
