CS-Ru505-A (Coated)
CS-Ru505-A (Coated) - Image 2

CS-Ru505-A (Coated)

66,00 €

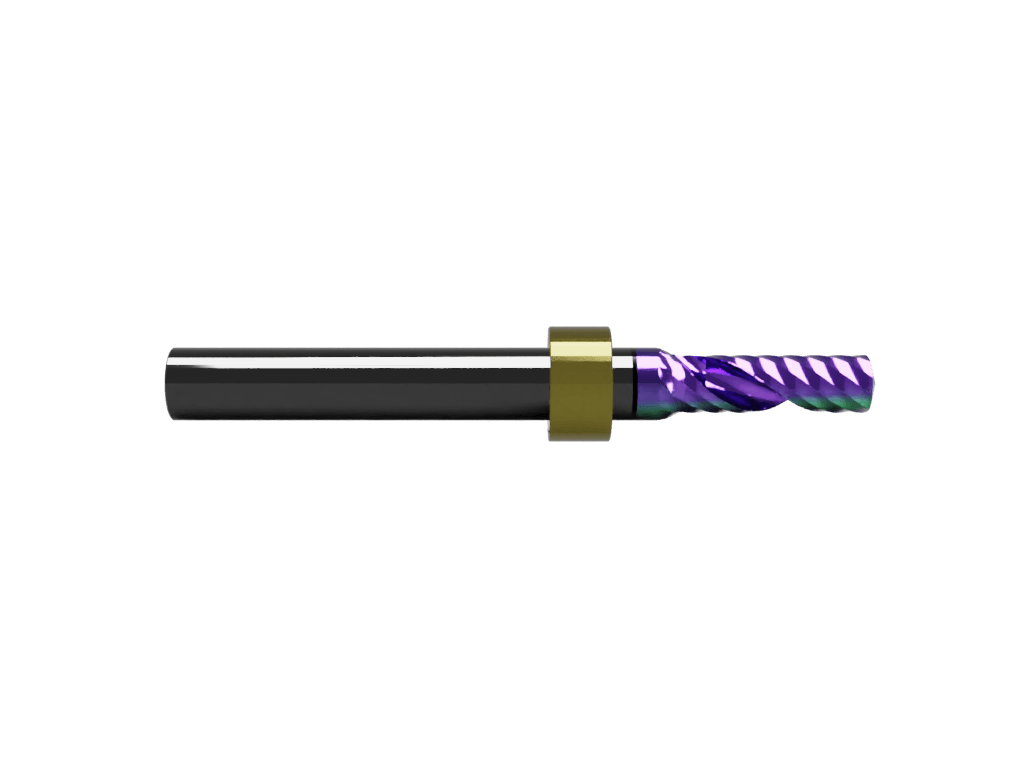

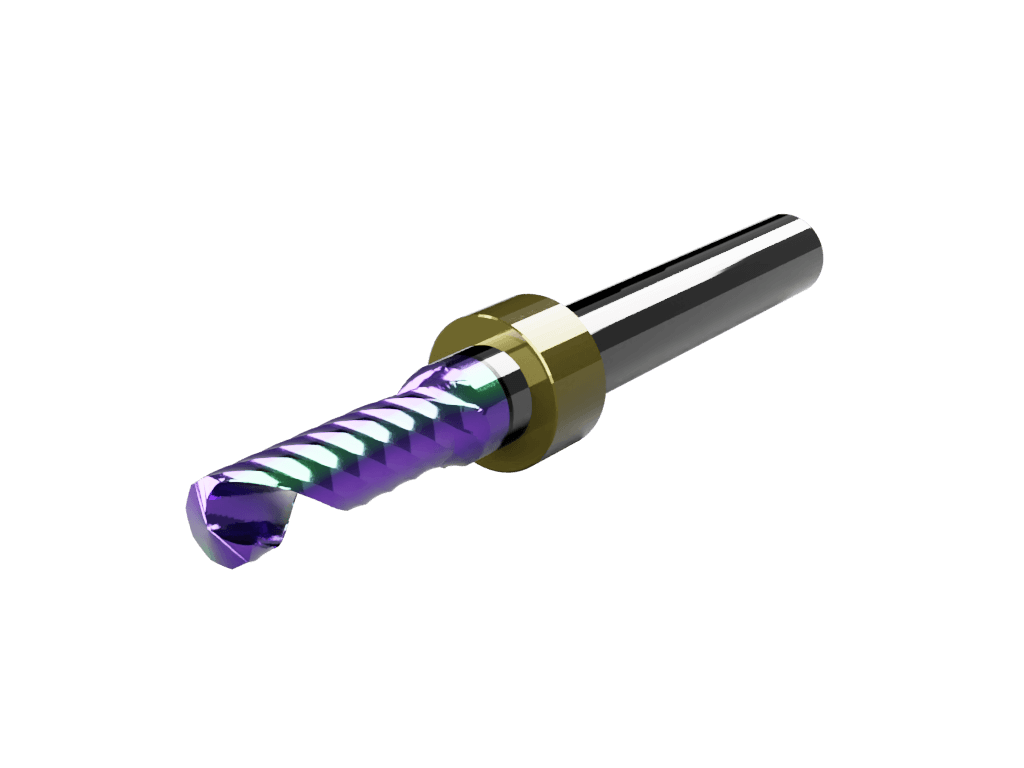

Multielement multilayered “rainbow” coated, “Super” carbide, polished, multi-purpose, single O-flute, left-hand spiral (up cut) router bit with a 5mm cutting edge diameter and max milling depth of 20mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

SKU: csru505a
Category: , , ,

Description

Multielement multilayered “rainbow” coated, “Super” carbide, polished, multi-purpose, single O-flute, left-hand spiral (up cut) router bit with a 5mm cutting edge diameter and max milling depth of 20mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

Additional information

Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – Through
Flutes

1 Flute
Cut Angle

Up Cut
Routing Diameter

5 mm
Max Rpm

50000
Max Cut Length

20
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

ACM, Acrylic, Alucobond, Dibond®, Dilite, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, IGEPA Bond Premium, IGPA, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Reynobond, Sign Foam®, Sintra®, Ultra Board®
Metal

Aluminum, ChromaLuxe® HD Aluminum, Hard Brass
Wood

Balsa, Birch Plywood, MDF, Poplar
