CS-K12s
29,00 €
Same design as the VTX-K12 but with a shorter shank length for use with certain table manufactures.
In stock
Description

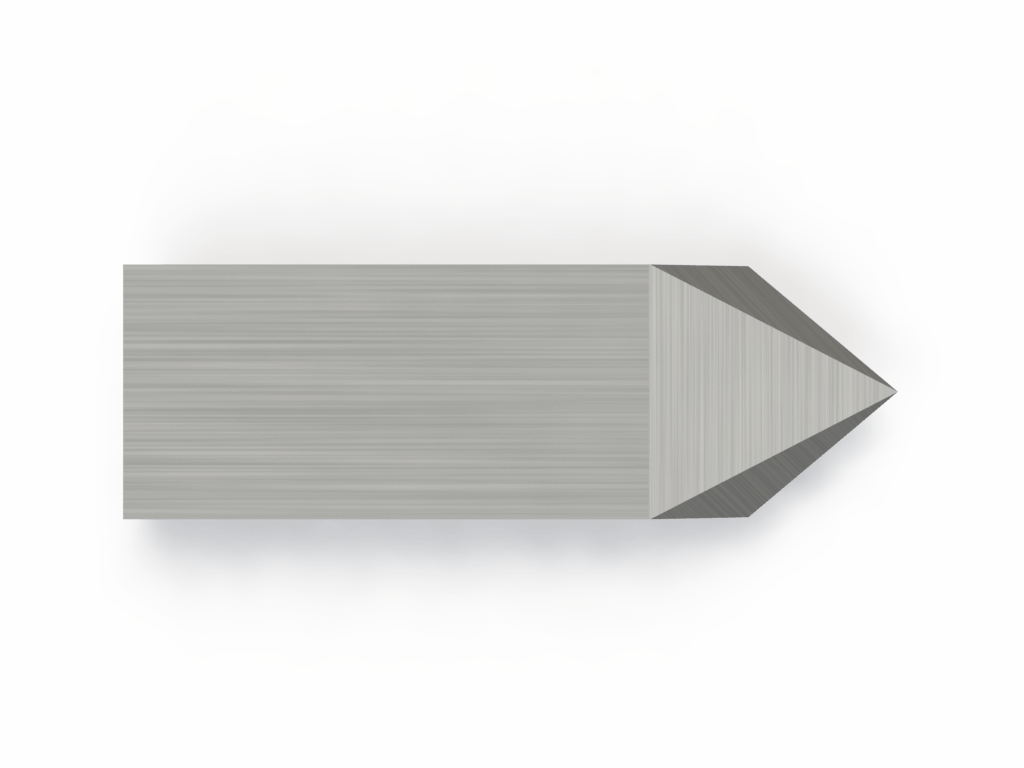

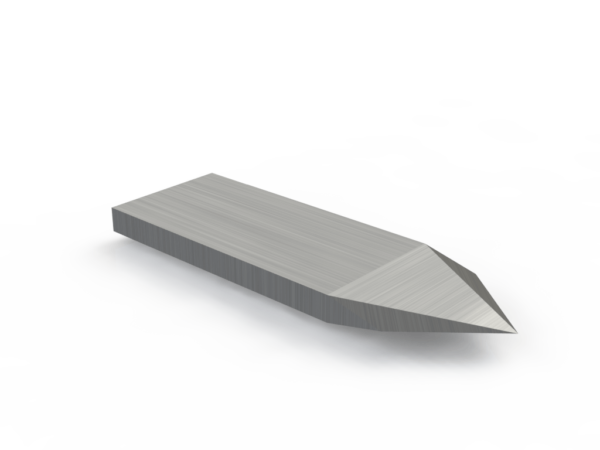

Double-edged blade for universal cutting applications. Same design as the CS-K12 but with a shorter shank length for use with certain table manufactures. Similar to CS-K13s, but with larger overcut and longer cut life.
Additional information
| Weight | 0,1 kg |
|---|---|
| Machine Model | Colex, Kongsberg, Multicam, Summa |
| Process Category | Knife blades |
| Process Type | Knife – Static/Drag |
| Cut Angle | 50° |
| Max Material Thickness | 4.8 mm |
| Blade Thickness | 1.5 mm |
| Knife Type | Flat Stock |
| Start Overcut | 0.84 mm |
| End Overcut | 0.84 mm |
| Board – Rigid | EVA – Ethylene Vinyl Acetate, Expanded PVC, Sign Foam®, Sintra® |
| Board – Soft | Corrugated Plastic, Fome-Cor®, Polycarbonate Sheet |
| Composite | Kapton, Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber, Toray® Prepreg Carbon Fiber |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl |
| Flexible Material | Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Textile | Polyester Coated, Polypropylene |
