CS-K13s
29,00 €
Same design as the VTX-K13 but with a shorter shank length for use with certain table manufactures.
In stock
Description

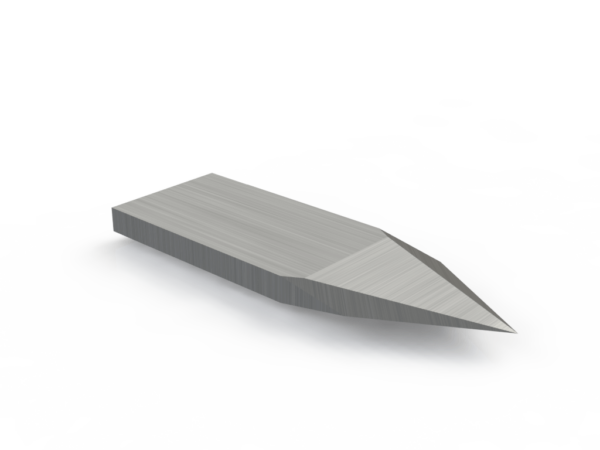

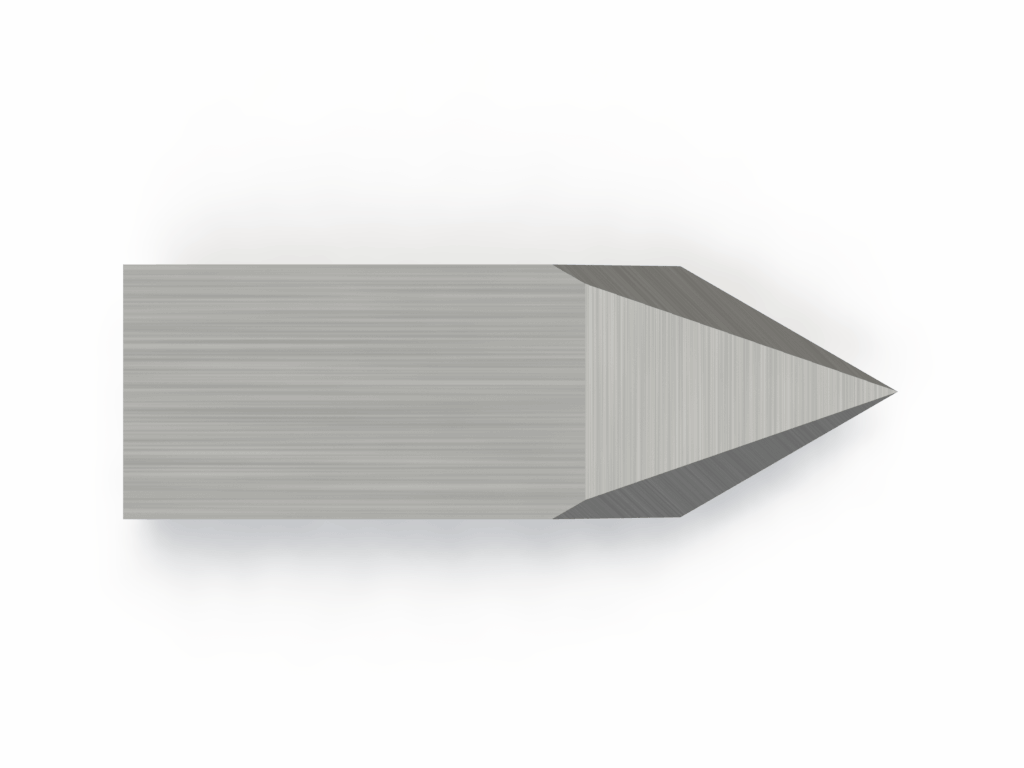

Double-edged blade for universal cutting applications. Same design as the CS-K13 but with a shorter shank length for use with certain table manufactures. Similar to CS-K12s, but with reduced overcut and cut life expectancy.Â
Additional information
| Machine Model | Colex, Kongsberg, Summa |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Static/Drag |
| Cut Angle | 60° |
| Max Material Thickness | 6.9 mm |
| Blade Thickness | 1.5 mm |
| Knife Type | Flat Stock |
| Start Overcut | 0.58 mm |
| End Overcut | 0.58 mm |
| Composite | Kapton, Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber, Toray® Prepreg Carbon Fiber |
| Board – Soft | Corrugated Plastic, Fome-Cor®, Polycarbonate Sheet |
| Board – Rigid | EVA – Ethylene Vinyl Acetate, Expanded PVC, Sign Foam®, Sintra® |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl |
| Flexible Material | Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber, Tarpaulin |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Textile | Polyester Coated, Polyester Textile |
