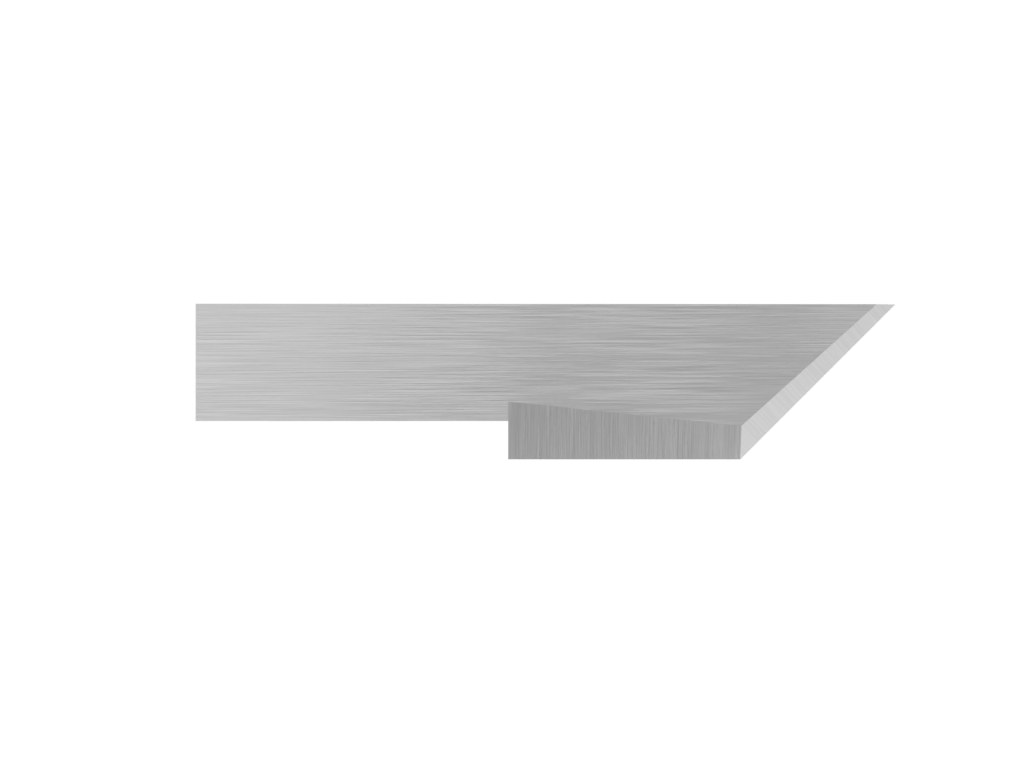

CS-K46s

CS-K46s is a single edge blade for professional digital cutting environments. Same design as the CS-K46 but with a shorter shank length for use with certain table manufactures. It is made for shops running Colex, Gerber, Kongsberg, Multicam and Summa cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for knife – static/drag work and supports material thicknesses up to 20 mm with a 45 degrees + 90 degrees cut angle and a 1.5 mm blade thickness. The flat stock profile gives the blade a familiar handling style for operators who already work with comparable tools. The physical dimensions are 2.22 cm long, 1.63 cm wide and .35 cm high, so it can be checked quickly against existing tool storage, ordering records and machine documentation.

In day-to-day production, CS-K46s is especially relevant for board – rigid such as EVA – Ethylene Vinyl Acetate, Expanded PVC, HDU – High Density Urethane, Komatex(R) and Plaskolite(R), board – soft such as Corrugated Plastic, Dispa(R), F-Sorb(R), Foam Board and Fome-Cor(R), flexible material such as Carpet, Cork, Ejection Rubber, Foam and Garlock(R), folding carton such as 2XL (85pt), Extra Heavy (50pt), Light (20pt) and XL (32pt) and paper such as Extra Heavy (114-140lbs), Heavy (93-100lbs), Light (22-56lbs) and Medium (65-82lbs). These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

The listed overcut values a 1 mm end overcut, which helps operators compare this blade against nearby alternatives when fine tuning corners, lead-ins and small details.

CS-K46s is also listed with compatible or alternative reference terms including 003612-MC246, 246, 42458398, 895246, 9012, BLD-SF246, Colex T00330, G000-00522, G42458398, i-246, i246, Kongsberg BLD-SF246 (42458398), S246 and se246. These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
