Description

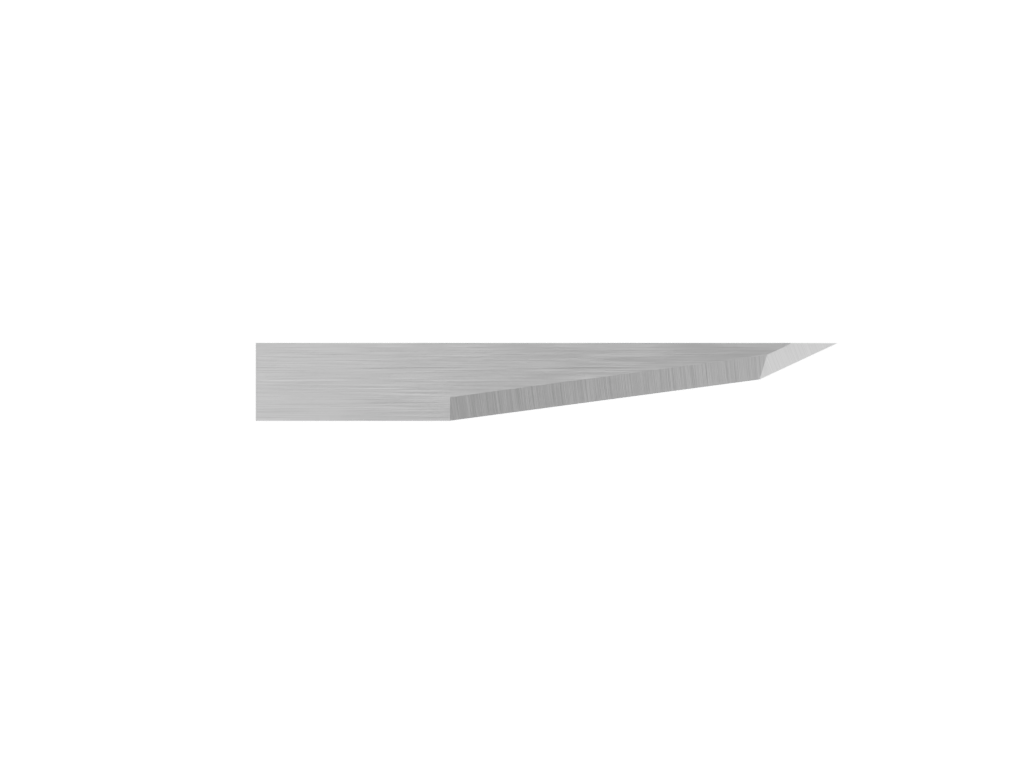

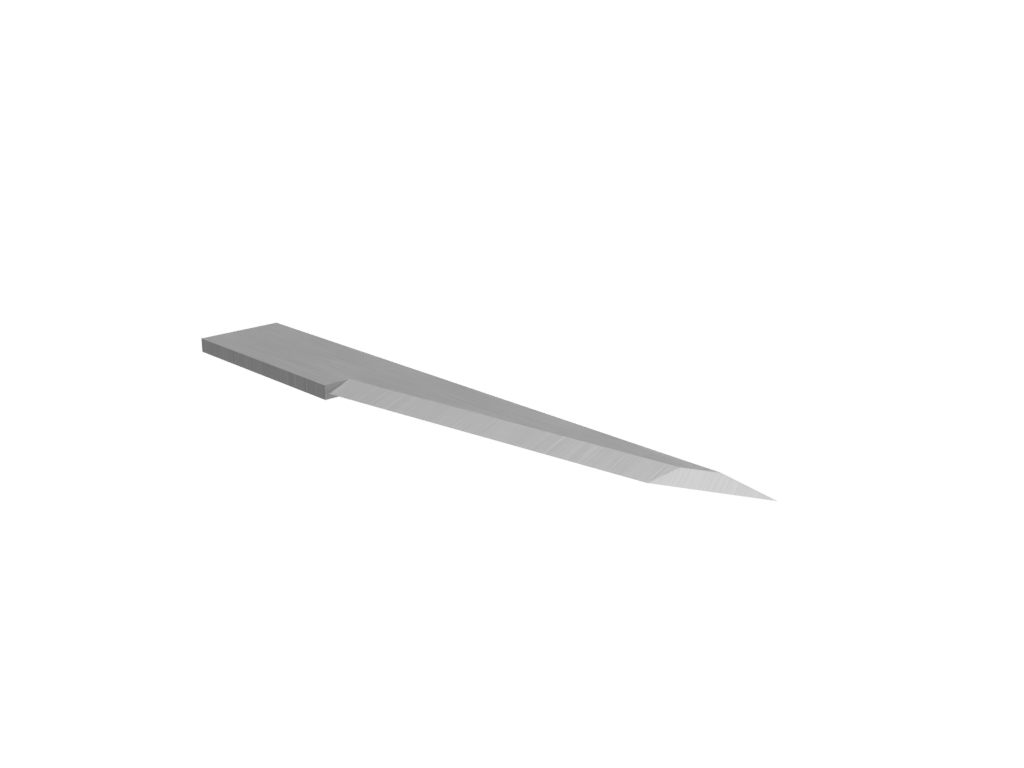

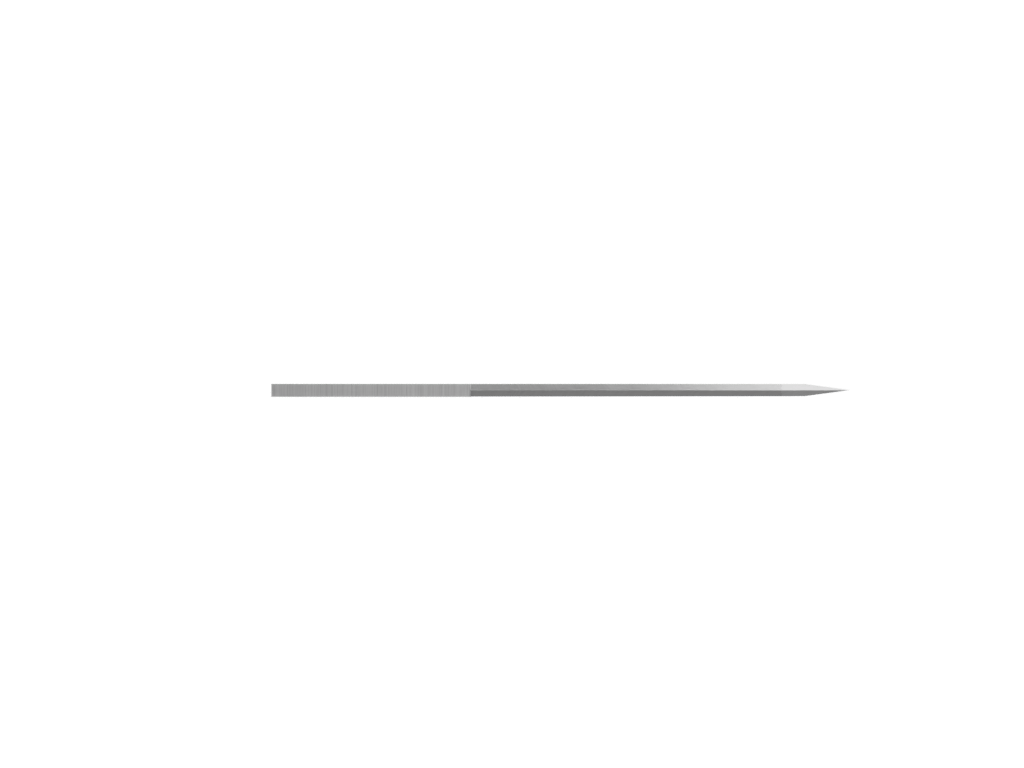

Oscillating blade designed for cutting textiles, fabrics, and fibrous tissues.
CS-K27
47,00 €
Oscillating blade designed for cutting textiles, fabrics, and fibrous tissues.
In stock
Additional information
| Machine Model | Colex, Gerber, IECHO, Kongsberg, Summa, Zund |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Oscillate |
| Cut Angle | 65° + 83° |
| Max Material Thickness | 10 mm |
| Blade Thickness | 0.63 mm |
| Knife Type | Flat Stock |
| Start Overcut | '- mm |
| End Overcut | To be defined mm |
| Board – Soft | Corrugated Plastic, Dispa®, F-Sorb®, Foam Board, Fome-Cor®, Insite® Foam Board, Matboard, Polyester Acoustic Board, Reboard®, Sandwich Board, Xanita® Board |
| Corrugated Single | A Flute, B Flute, C Flute |
| Corrugated Double Wall | A/B Flute, B/C Flute, B/E Flute, E/B Flute, E/C Flute, E/E Flute, F/E Flute |
| Corrugated Triple Wall | E/B/E Flute |
| Flexible Material | Carpet, Cork, Ejection Rubber, Fiber Glass, Foam, Gasket Material, Insulation, Magnum Magnetics, Rubber, Tarpaulin, Zintra® |
| Textile | Felt |
