CS-Ru156

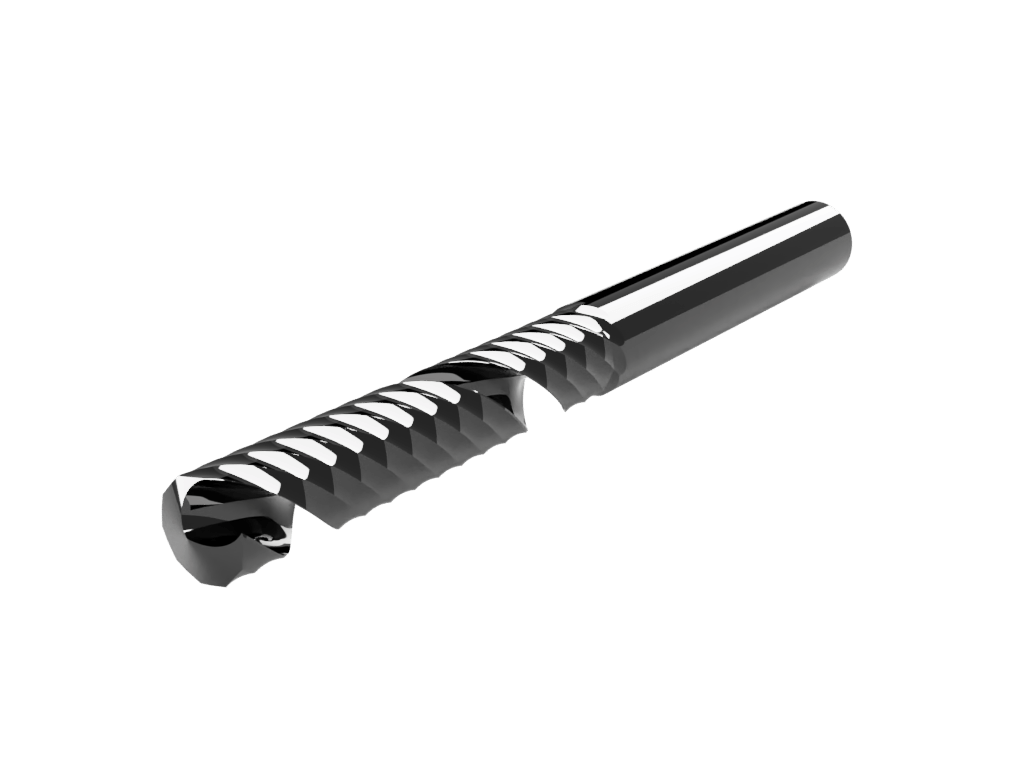

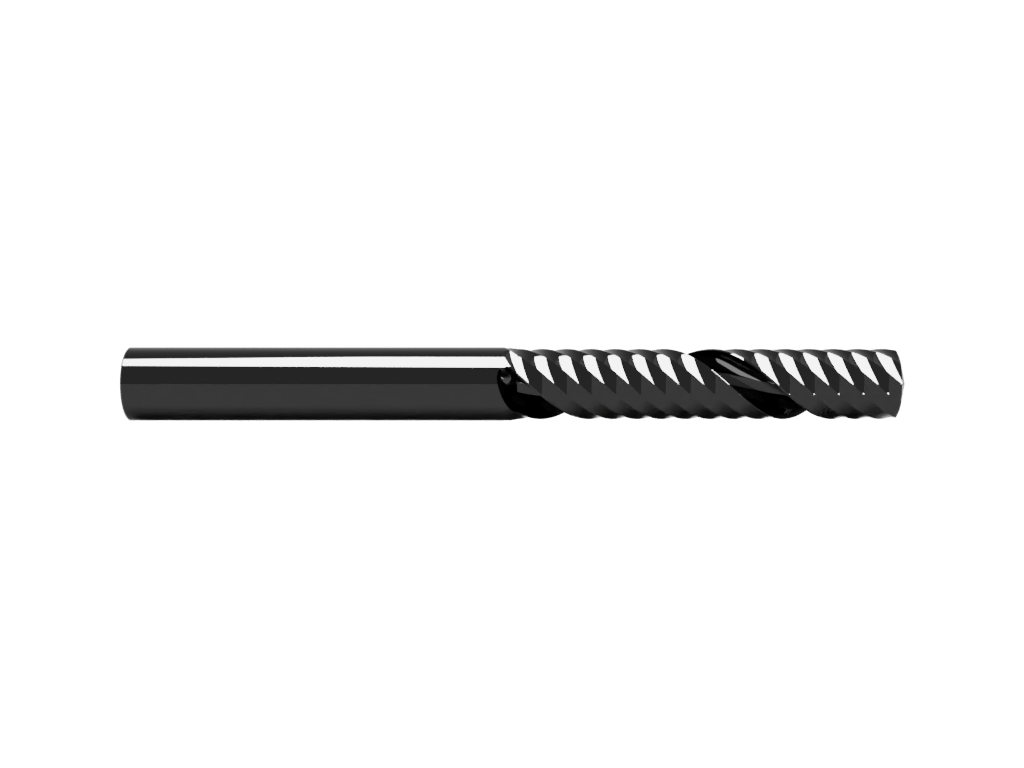

CS-Ru156 is a router bit for professional digital cutting environments. Multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 6mm cutting edge diameter and max milling depth of 32mm. It is made for shops running Colex, Cosign, Gerber, IECHO, Kongsberg, Multicam and Summa cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for route – through work and supports material thicknesses up to 32 mm with a Up Cut cut angle.

In day-to-day production, CS-Ru156 is especially relevant for flutes such as 1 Flute, routing diameter such as 6, max rpm such as 50000, shank diameter such as 6 and length overall such as 64. These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

Because blade choice affects corners, lead-ins and small details, operators should match this item with the cut parameters recommended for the relevant machine and substrate.

CS-Ru156 is also listed with compatible or alternative reference terms including 3910710, 42438077, BIT-MUS06-6032-64, CGR156, Colex T00503, ER66.3C, IECHO ER66.3C, Kongsberg BIT-MUS06-6032-64 (42438077), PSU-2599, R156, R172, T00503 and Zund R156 (3910710). These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
