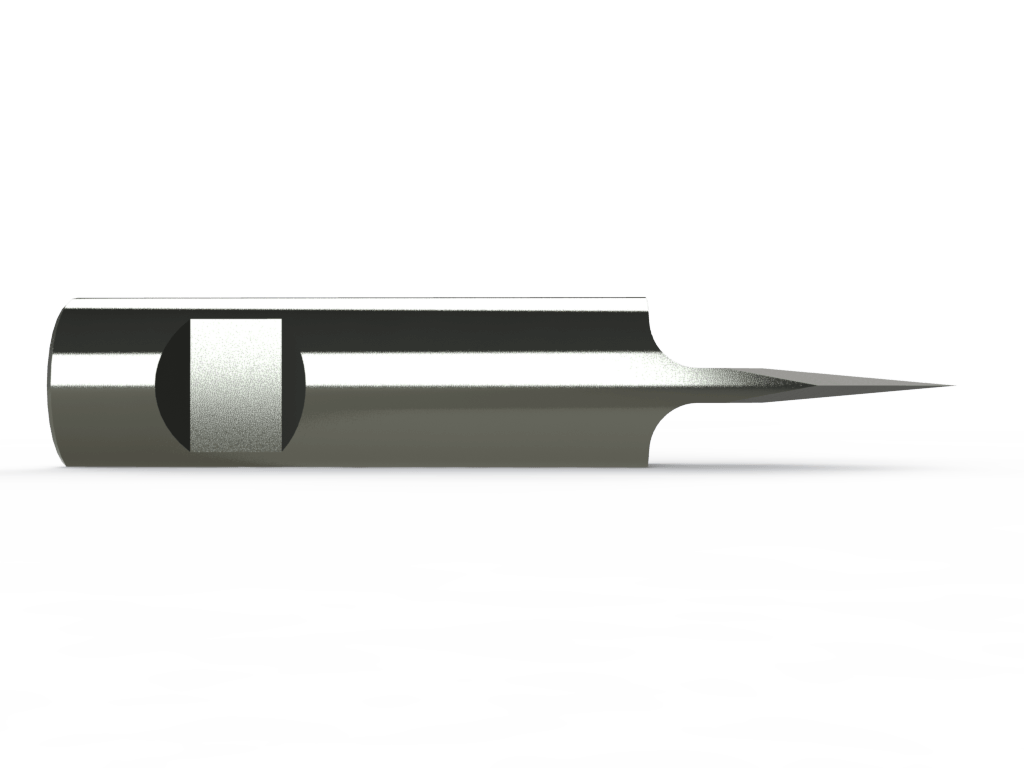

Double-edged blade with 8mm diameter cylindrical shank providing high rigidity for dense material/ high force cutting applications. Same cut parameters as the Z11 and VTX-K13 but with much higher rigidity. Similar to VTX-K12r, but with less overcut and longer life expectancy.
In stock
Double-edged blade with 8mm diameter cylindrical shank providing high rigidity for dense material/ high force cutting applications. Same cut parameters as the Z11 and CS-K13 but with much higher rigidity. Similar to CS-K12r, but with less overcut and longer life expectancy.
| Machine Model | Gerber, Kongsberg, Summa |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Static/Drag |
| Cut Angle | 60° |
| Max Material Thickness | 6.9 mm |
| Knife Type | Round Stock |
| Blade Thickness | 8ø mm |
| Start Overcut | 0.58 mm |
| End Overcut | 0.58 mm |
| Board – Rigid | EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, Komatex®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board® |
| Board – Soft | Corrugated Plastic, Fome-Cor®, Polycarbonate Sheet |
| Composite | Kapton, Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber, Toray® Prepreg Carbon Fiber |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl |
| Flexible Material | Carpet, Cork, Ejection Rubber, Gasket Material, Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Textile | Polyester Coated, Polypropylene |
| Shank Diameter | 8 mm |
