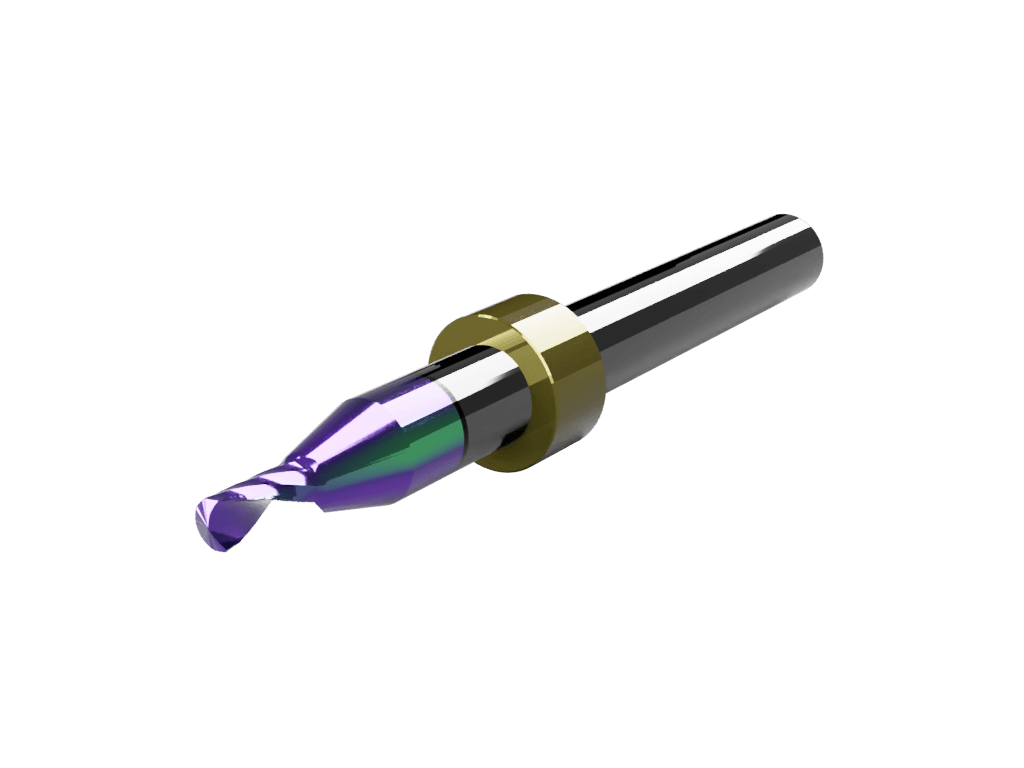

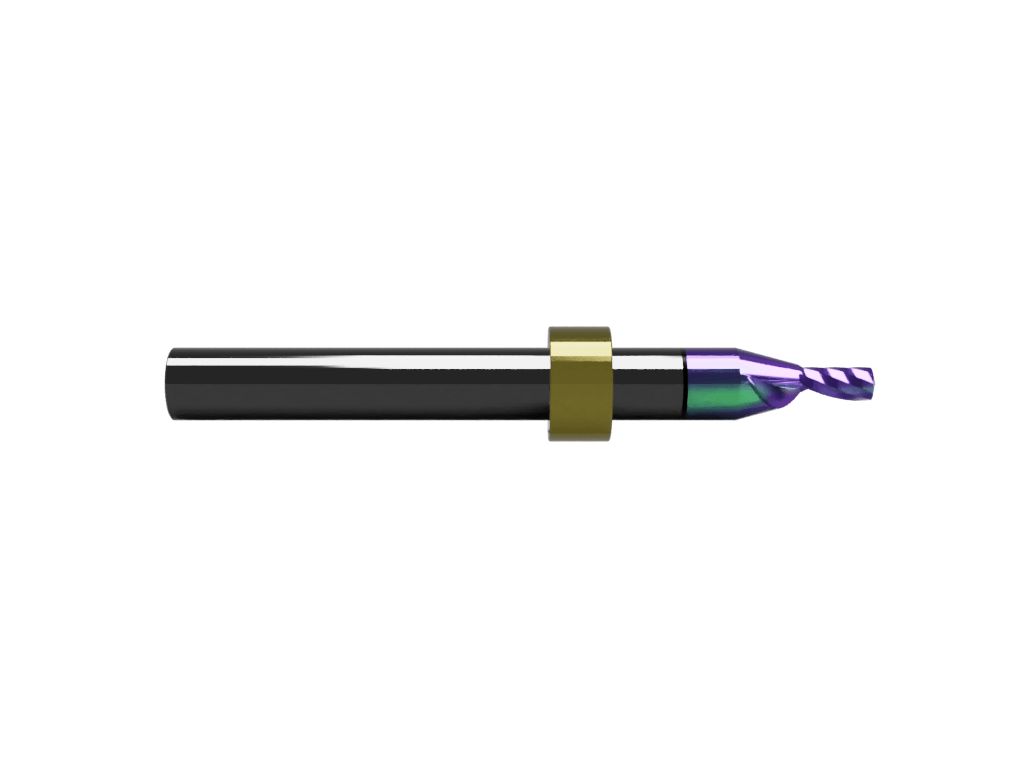

Multielement multilayered “rainbow” coated, “Super” carbide, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 3mm cutting edge diameter and max milling depth of 8mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
Multielement multilayered “rainbow” coated, “Super” carbide, multi-purpose, single O-flute, right-hand spiral (up cut) router bit with a 3mm cutting edge diameter and max milling depth of 8mm. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).
| Machine Model | IECHO, Zund |
|---|---|
| Process Category | Router bits |
| Process Type | Route – Through |
| Flutes | 1 Flute |
| Cut Angle | Up Cut |
| Routing Diameter | 3 mm |
| Max Rpm | 50000 |
| Max Cut Length | 8 |
| Shank Diameter | 6 mm |
| Length Overall | 60 |
| Board – Rigid | Acrylic, Dibond®, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Sign Foam®, Sintra®, Ultra Board® |
| Metal | Aluminum, ChromaLuxe® HD Aluminum, Hard Brass |
| Wood | Birch Plywood, MDF, Poplar |
