CS-Rv142-2FL (Flat Tip, 45° x 2)

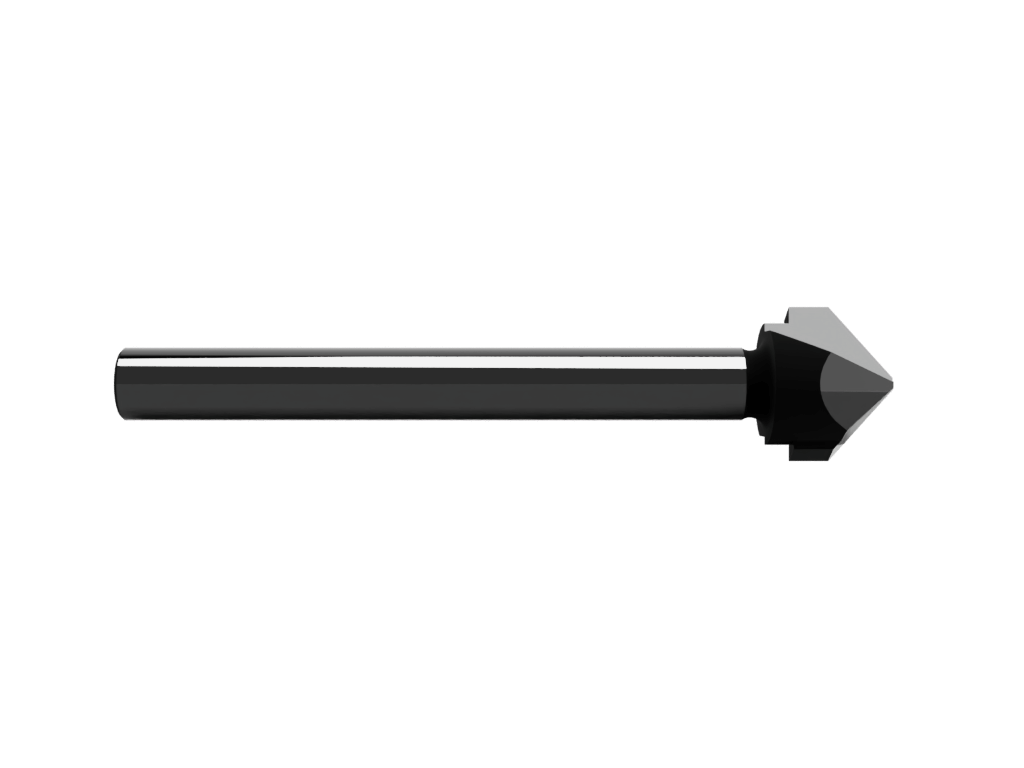

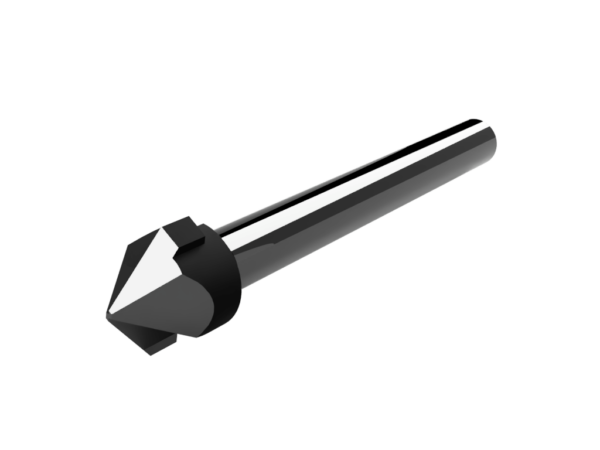

CS-Rv142-2FL (Flat Tip, 45 degrees x 2) is a router bits > v-cut bit for professional digital cutting environments. Brazed carbide, 2-flute, 90 degrees angle, v-cut router bit with a 12mm cutting edge diameter and max milling depth of 9mm. Has 2 flutes with 45 degrees angles which creates a 90 degrees v-cut angle. Tip is ground flat to allow for folding of ACM (Aluminum Composite Panels) materials. It is made for shops running Cosign, Kongsberg, Summa and Zund cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for route – v-fold work and supports material thicknesses up to 9 mm.

In day-to-day production, CS-Rv142-2FL (Flat Tip, 45 degrees x 2) is intended for the material range shown in the product data and can be used as part of a controlled blade setup where the operator confirms tool choice against the material, table and cutting parameters.

Because blade choice affects corners, lead-ins and small details, operators should match this item with the cut parameters recommended for the relevant machine and substrate.

CS-Rv142-2FL (Flat Tip, 45 degrees x 2) is a suitable option when the product name, machine compatibility and material information match the blade already used in production. Always confirm the selected blade against your machine setup and the material being processed before running a full job.
