CS-Rv60-4FL-A (Coated, 30° x 2)
CS-Rv60-4FL-A (Coated, 30° x 2) - Image 2

CS-Rv60-4FL-A (Coated, 30° x 2)

58,00 €

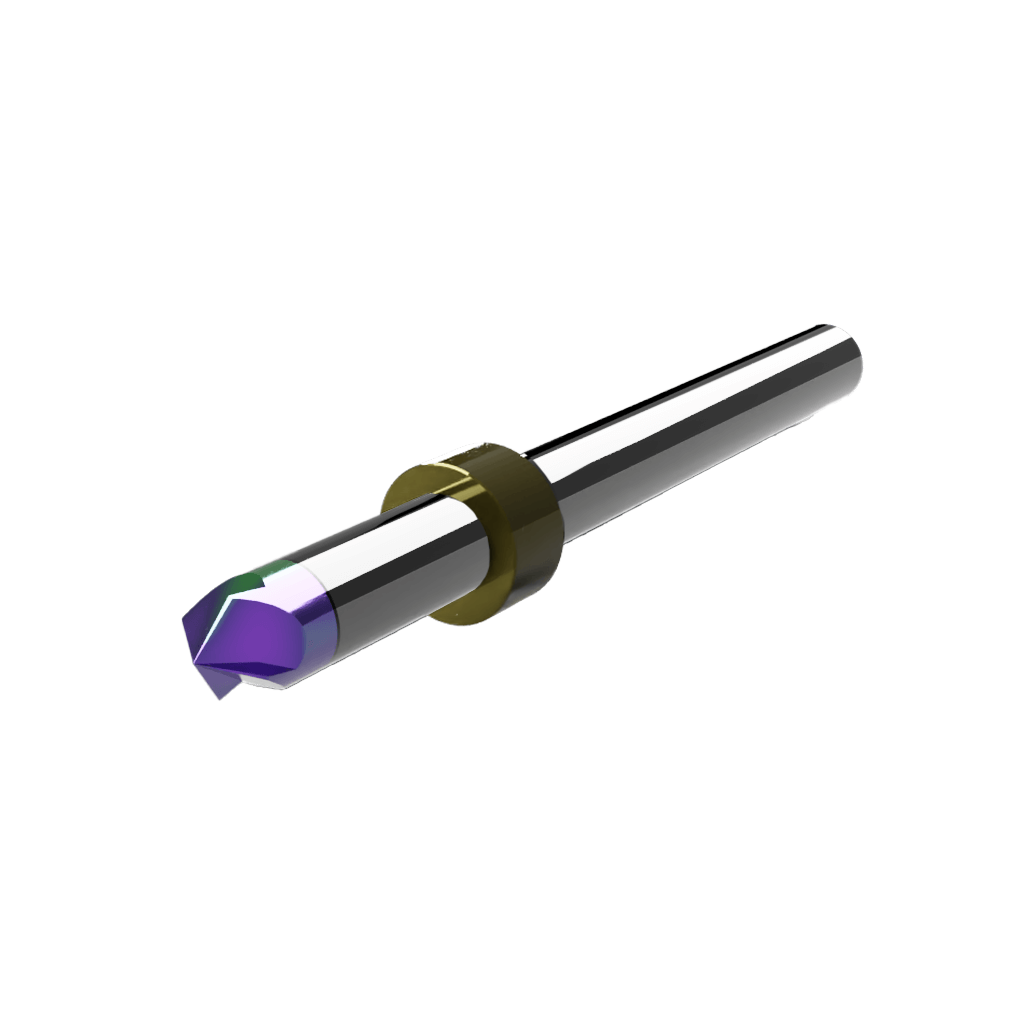

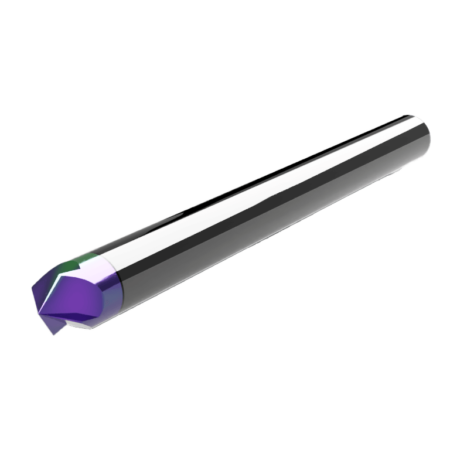

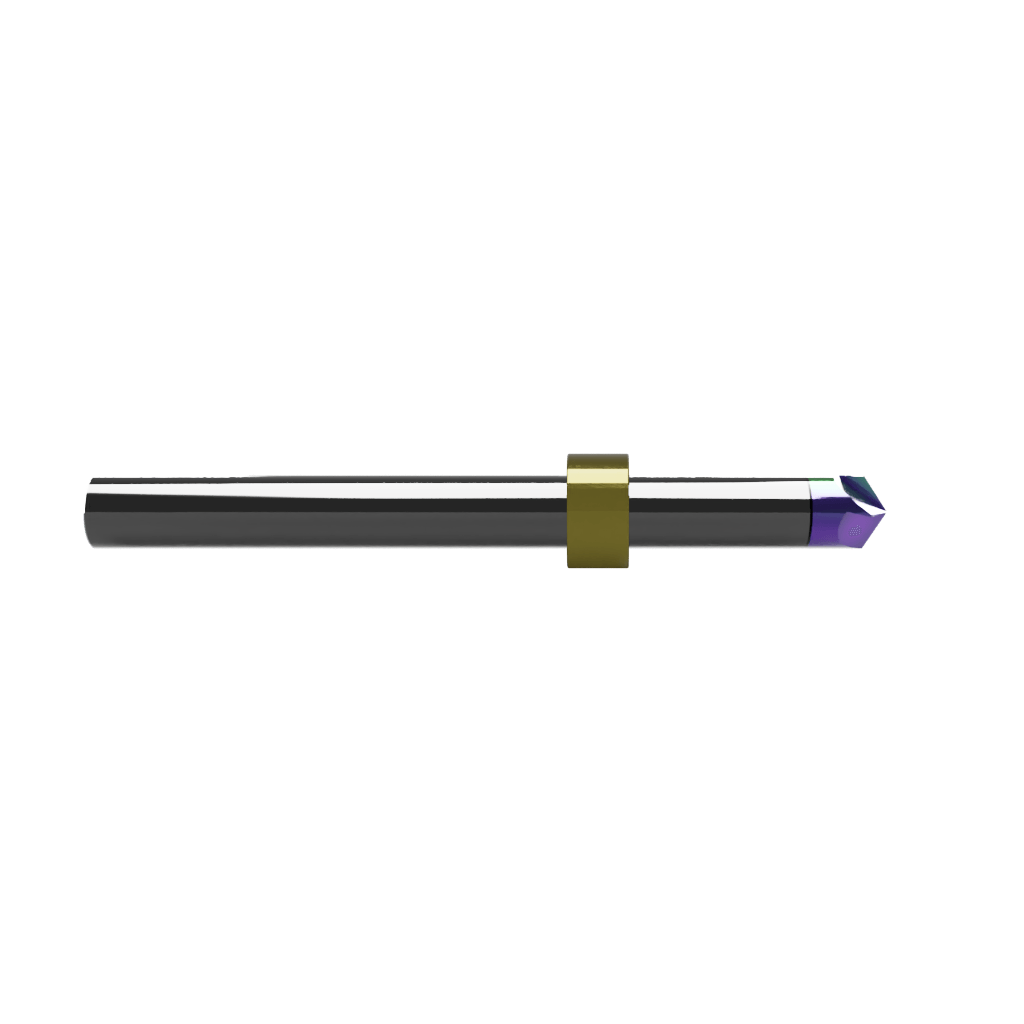

“Super” carbide, coated, 4-flute, V-cut router bit with a 6mm cutting edge diameter and max milling depth of 5.2mm. Has 4 flutes with 30° angles which creates a 60° v-cut angle. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

SKU: csrv60_4fa
Category:

Description

“Super” carbide, coated, 4-flute, V-cut router bit with a 6mm cutting edge diameter and max milling depth of 5.2mm. Has 4 flutes with 30° angles which creates a 60° v-cut angle. With stop ring (for use with the Zund ARC system and IECHO Tool Changer).

Additional information

Machine Model

IECHO, Zund
Process Category

Router bits
Process Type

Route – V-Fold
Flutes

4 flutes
Cut Angle

30° x 2 – 60°
Routing Diameter

6 mm
Max Rpm

50000
Max Cut Length

5.2
Shank Diameter

6 mm
Length Overall

60
Board – Rigid

ACM, Acrylic, Alucobond, Dibond®, Dilite, E-Panel®, EVA – Ethylene Vinyl Acetate, Expanded PVC, Gatorfoam®, Gatorplast®, HDU – High Density Urethane, IGEPA Bond Premium, IGPA, Komatex®, Max Metal®, Plaskolite®, Polycarbonate Board, Polyethylene 4 lbs., Precision Board®, Reynobond, Sign Foam®, Sintra®, Ultra Board®
Metal

Aluminum, ChromaLuxe® HD Aluminum, Hard Brass
Wood

Balsa, Birch Plywood, MDF, Poplar
