Description

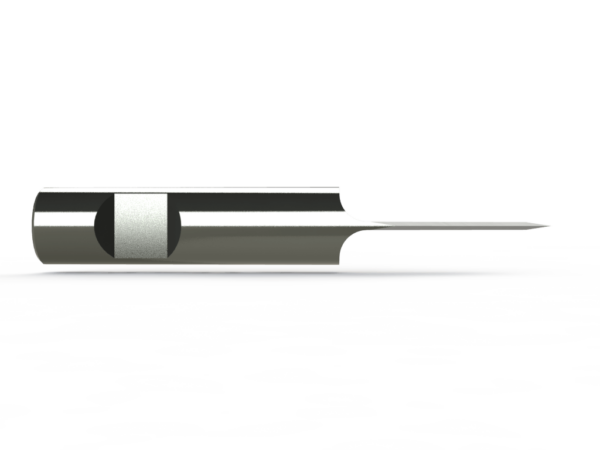

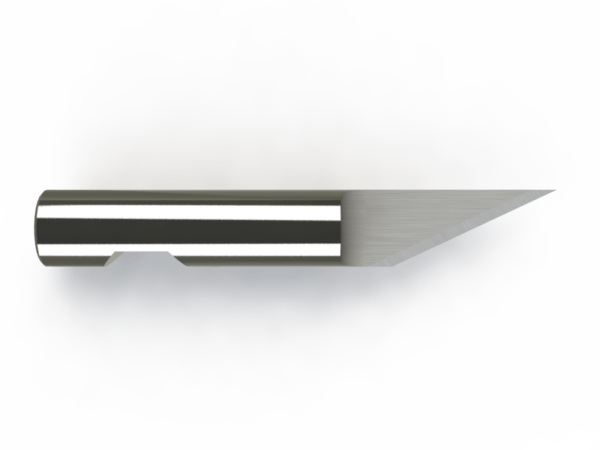

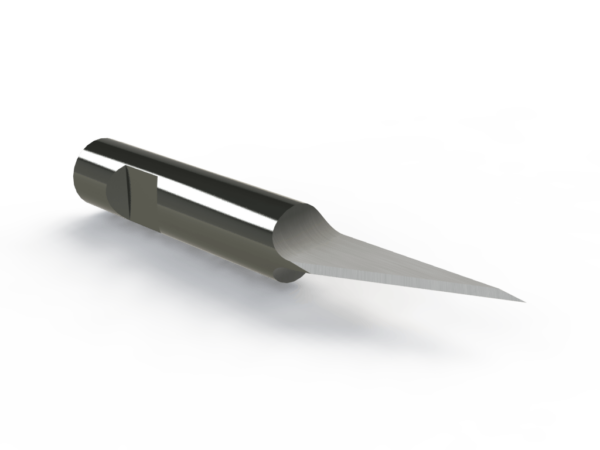

A 6mm diameter cylindrical shank providing high rigidity for oscillate and drag cutting of denser materials. For best results, use with an oscillating tool.
CS-K17r
37,00 €
A 6mm diameter cylindrical shank providing high rigidity for oscillate and drag cutting of denser materials. For best results, use with an oscillating tool.
Additional information
| Machine Model | Gerber, Kongsberg, Summa |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Oscillate, Knife – Static/Drag |
| Cut Angle | 65° |
| Max Material Thickness | 12 mm |
| Blade Thickness | 6ø mm |
| Knife Type | Round Stock |
| Start Overcut | 0 mm |
| End Overcut | 0.47 mm |
| Board – Soft | Corrugated Plastic, Foam Board, Fome-Cor®, Insite® Foam Board |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, Faux Carbon Fiber, General Formulations® Vinyl, Ploycarbonate Film, Pre-Mask, Relective Vinyl, Removable Wallpaper, Sandblast Masking, Self Adhesive Vinyl |
| Flexible Material | Ejection Rubber, Foam, Gasket Material, Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner, Rubber, Tarpaulin |
| Leather | Leather Hide |
| Textile | Felt, Polyester Coated |
| Folding Carton | 2XL (85pt), Extra Heavy (50pt), Light (20pt), XL (32pt) |
| Paper | Extra Heavy (114-140lbs), Heavy (93-100lbs), Light (22-56lbs), Medium (65-82lbs) |
| Corrugated Single | E Flute, F Flute, G Flute |
| Shank Diameter | 6 mm |
