Description

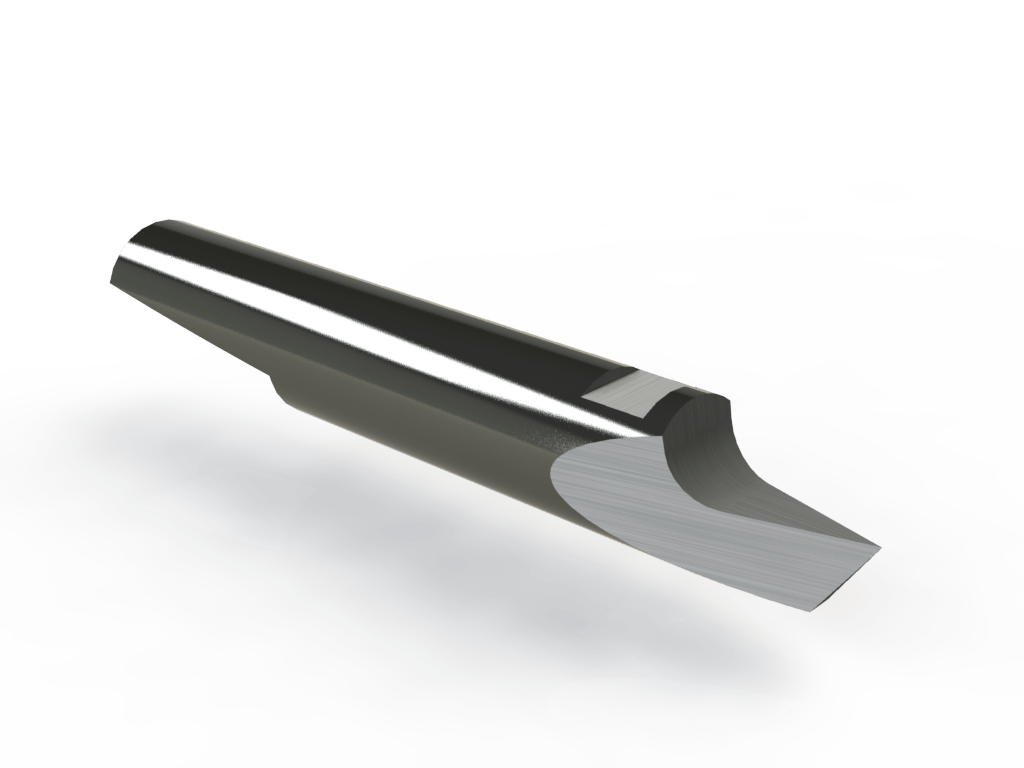

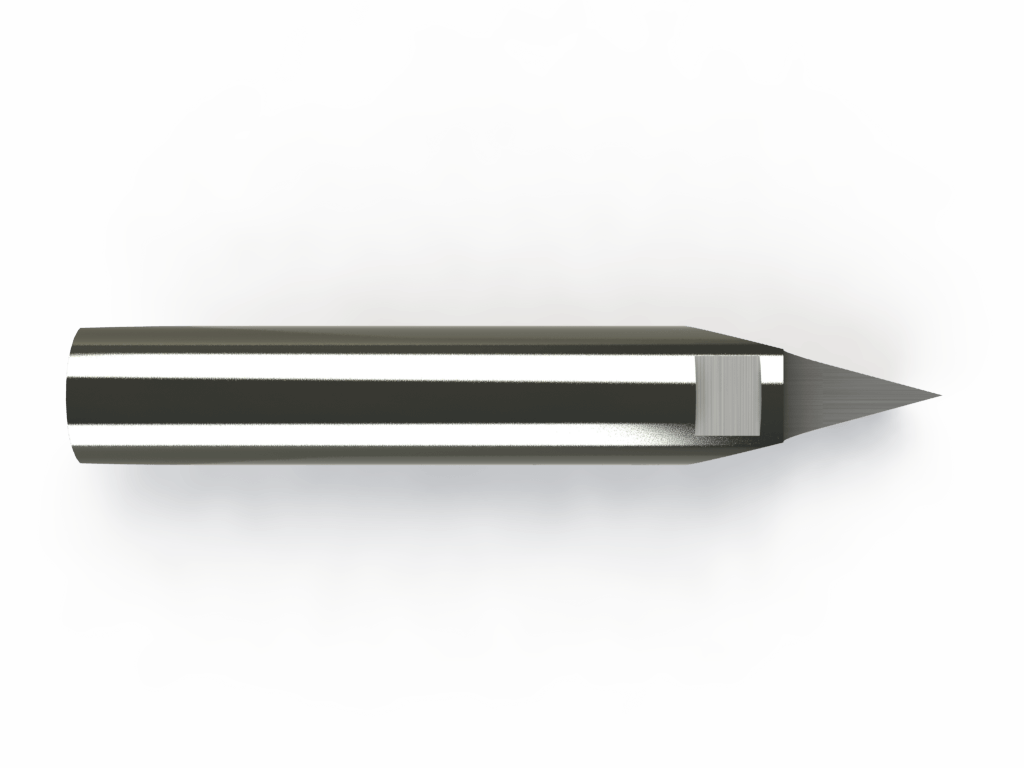

Blade for kiss cutting any standard self-adhesive backed vinyl. Similar to the CS-K1, but exerts less
drag force which results in a shorter life expectancy
Blade for kiss cutting any standard self-adhesive backed vinyl. Similar to the CS-K1, but exerts less
drag force which results in a shorter life expectancy
| Machine Model | Gerber, IECHO, Kongsberg, Zund |
|---|---|
| Process Category | Knife blades |
| Process Type | Knife – Kiss-Cut |
| Cut Angle | 35° |
| Max Material Thickness | 1 mm |
| Blade Thickness | 3ø mm |
| Knife Type | Round Stock |
| Start Overcut | 0 mm |
| End Overcut | 1.43 mm |
| Film / Vinyl | 3M® Diamond Grade, 3M® Vinyl, Avery Dennison® Vinyl, General Formulations® Vinyl, Ploycarbonate Film, Relective Vinyl, Self Adhesive Vinyl, Window Perf |
| Flexible Material | Magnetic Foil |
