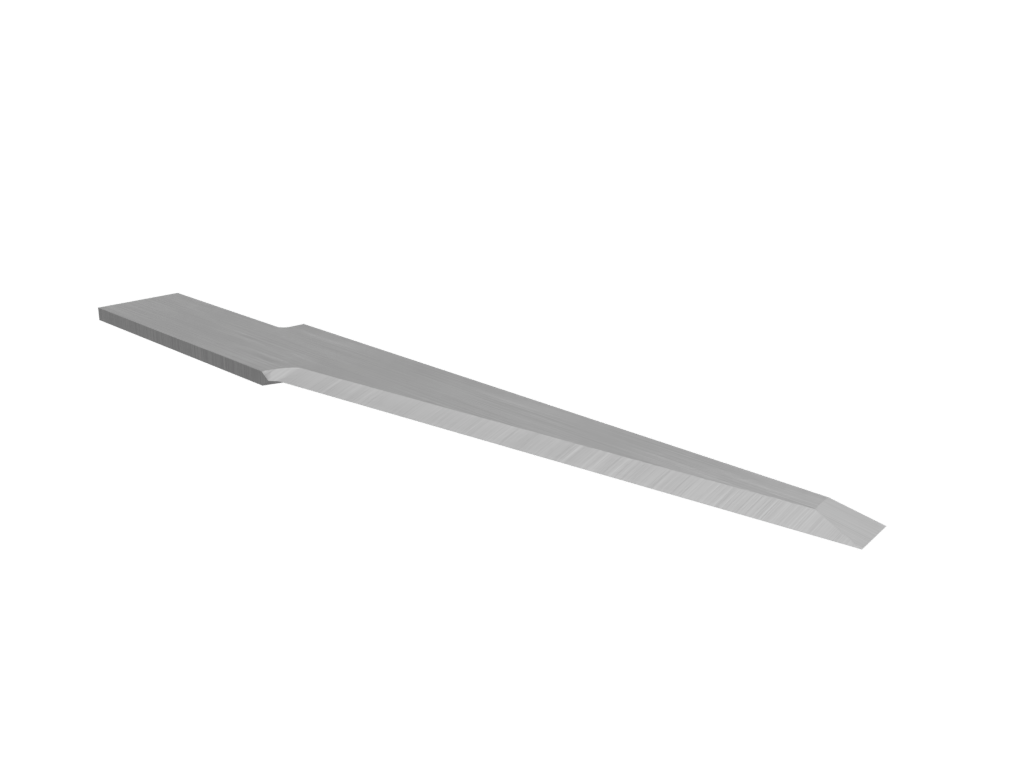

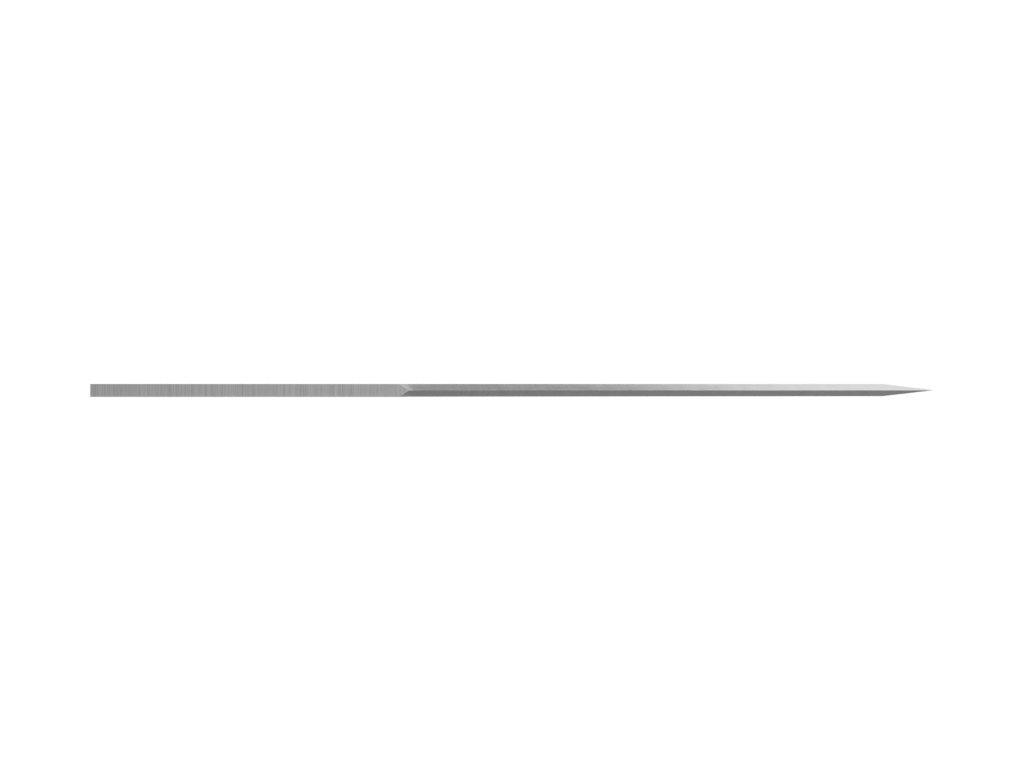

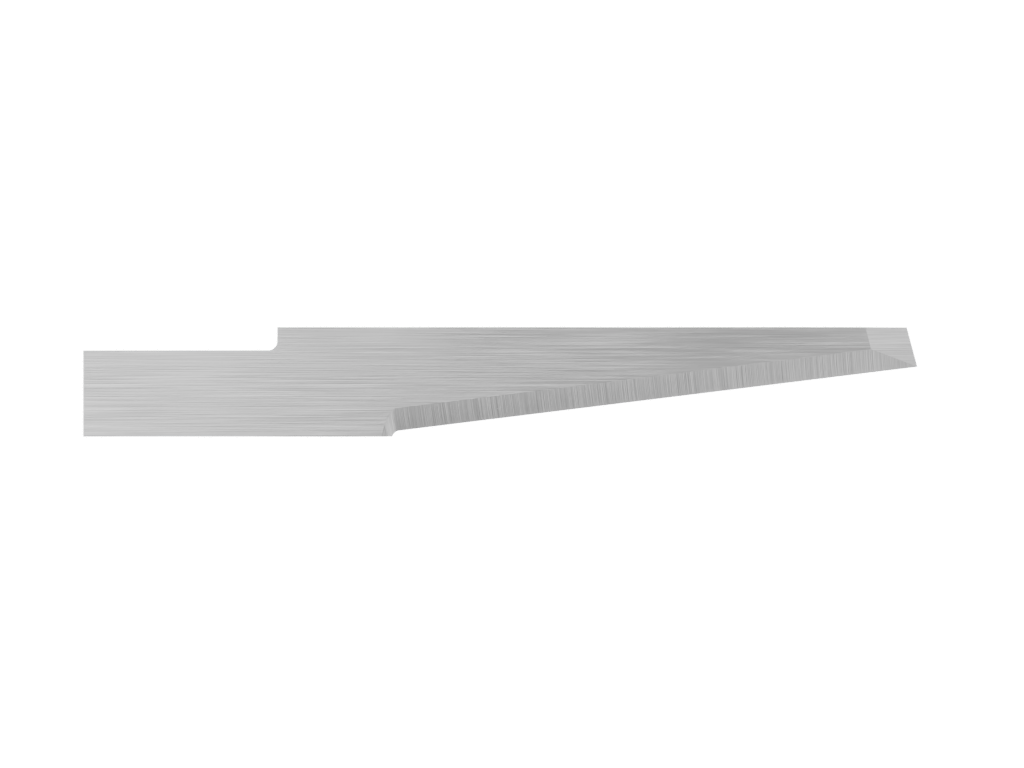

CS-K63

CS-K63 is a single edge blade for professional digital cutting environments. Oscillating knife with small pre-cut for variety of materials. Similar to the CS-K62 but longer cut length. It is made for shops running Colex, Gerber, Kongsberg, Multicam, Summa and Zund cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for knife – oscillate work and supports material thicknesses up to 28 mm with a 7 degrees cut angle and a 0.63 mm blade thickness. The flat stock profile gives the blade a familiar handling style for operators who already work with comparable tools.

In day-to-day production, CS-K63 is especially relevant for flexible material such as Fiber Glass, Foam and Insulation, board – soft such as Corrugated Plastic, Dispa(R), F-Sorb(R), Foam Board and Fome-Cor(R) and corrugated double wall such as A/B Flute, B/C Flute, B/E Flute, E/B Flute and E/C Flute. These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

The listed overcut values include a 0.8 + 0.12 mm start overcut and a 1.2 mm end overcut, which helps operators compare this blade against nearby alternatives when fine tuning corners, lead-ins and small details.

CS-K63 is also listed with compatible or alternative reference terms including 5002637, 895063, 9014, S63, SE63, Z63 and Zund Z63 (5002637). These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
