CS-K7

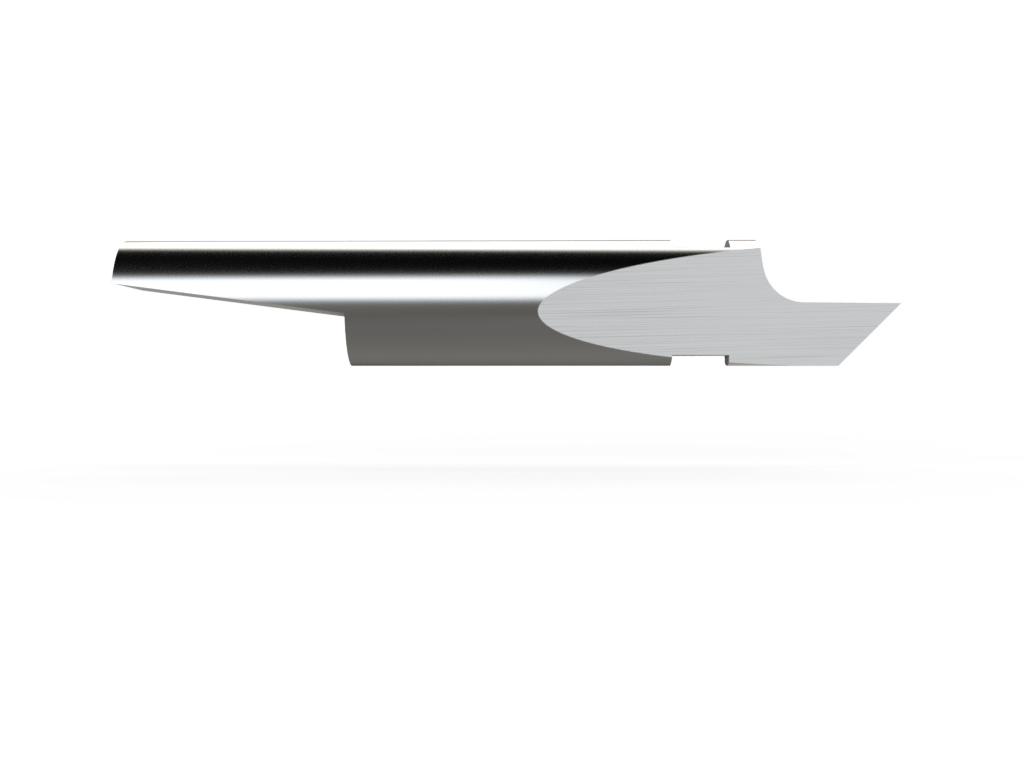

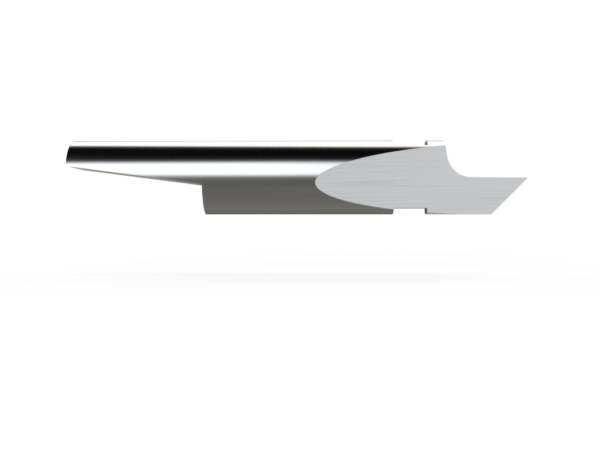

CS-K7 is a knife blade for professional digital cutting environments. Kiss cut style blade for cutting any standard self-adhesive vinyl in through cut mode. Holds edge for a long time giving greater life expectancy. It is made for shops running Gerber, IECHO, Kongsberg and Zund cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for knife – kiss-cut work and supports material thicknesses up to 2.1 mm and a 3o mm blade thickness. The round stock profile gives the blade a familiar handling style for operators who already work with comparable tools.

In day-to-day production, CS-K7 is especially relevant for film / vinyl such as 3M(R) Diamond Grade, 3M(R) Vinyl, Avery Dennison(R) Vinyl, Faux Carbon Fiber and General Formulations(R) Vinyl and flexible material such as Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner and Tarpaulin. These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

The listed overcut values include a 0.1 mm start overcut and a ‘-0.03+0.7 mm end overcut, which helps operators compare this blade against nearby alternatives when fine tuning corners, lead-ins and small details.

CS-K7 is also listed with compatible or alternative reference terms including 5224068, Z7 and Zund Z7 (5224068). These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
