CS-K83A

CS-K83A is a knife blade for professional digital cutting environments. Double-edged, asymmetrical, blade for ridge free, inside cutting applications. It is made for shops running Gerber, Kongsberg, Summa and Zund cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

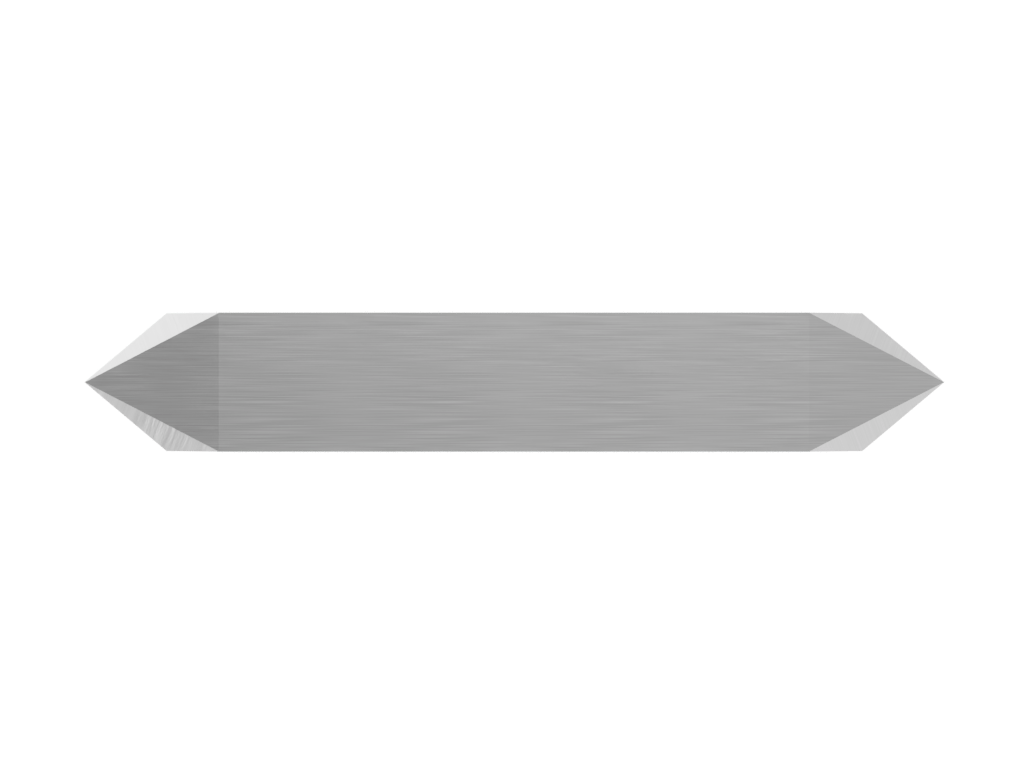

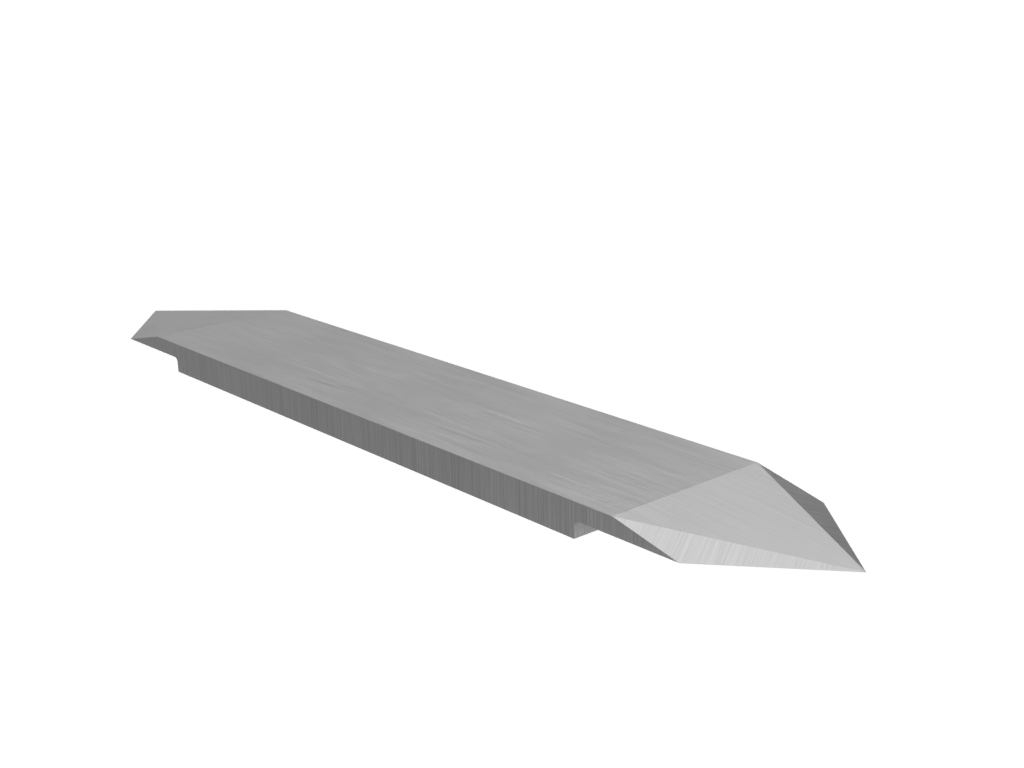

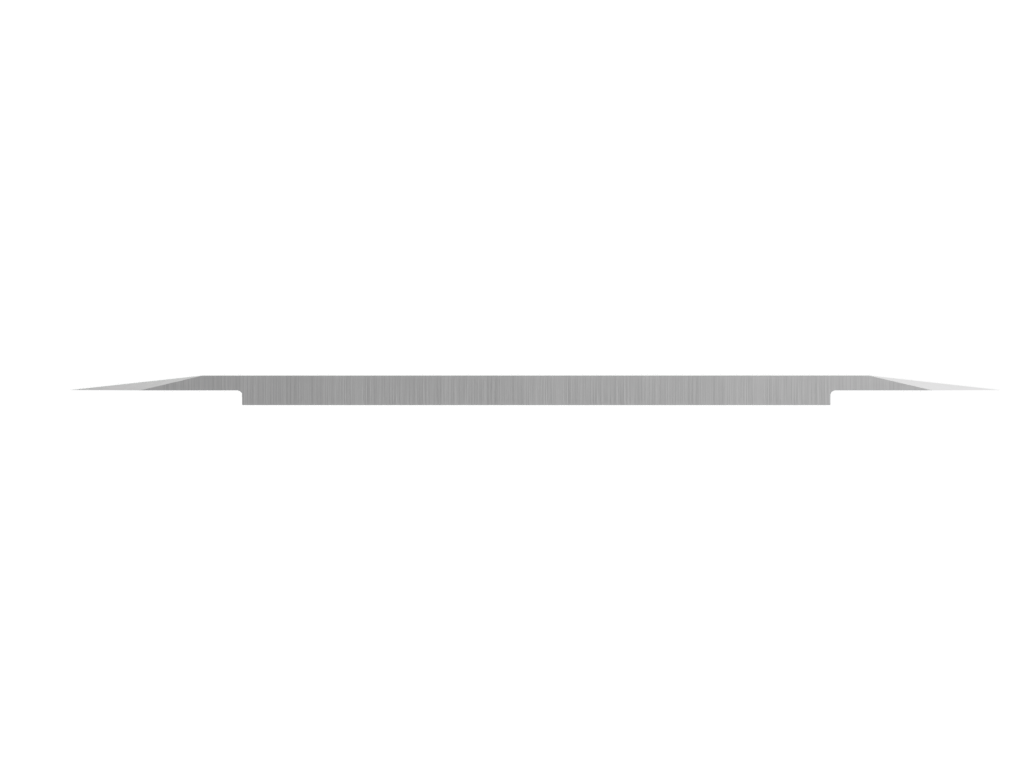

The blade is designed for knife – static/drag work and supports material thicknesses up to 4.8 mm with a 50 degrees cut angle and a 1.5 mm blade thickness. The flat stock profile gives the blade a familiar handling style for operators who already work with comparable tools. The physical dimensions are 2.22 cm long, 1.63 cm wide and .35 cm high, so it can be checked quickly against existing tool storage, ordering records and machine documentation.

In day-to-day production, CS-K83A is especially relevant for board – rigid such as EVA – Ethylene Vinyl Acetate, Expanded PVC, Sign Foam(R) and Sintra(R), board – soft such as Corrugated Plastic, Fome-Cor(R) and Polycarbonate Sheet, composite such as Kapton, Prepreg Carbon Fiber, Prepreg Quartz, Prepreg Unidirectional Carbon Fiber and Toray(R) Prepreg Carbon Fiber, flexible material such as Magnetic Foil, Magnum Magnetics, PTFE, PVC Banner and Rubber and folding carton such as 2XL (85pt), Extra Heavy (50pt), Light (20pt) and XL (32pt). These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

The listed overcut values include a 0.84 mm start overcut and a 0.84 mm end overcut, which helps operators compare this blade against nearby alternatives when fine tuning corners, lead-ins and small details. This makes the product description useful not only for purchasing, but also for production planning, because the most important compatibility and performance clues are gathered in one readable explanation instead of being hidden only in raw attributes.

CS-K83A is also listed with compatible or alternative reference terms including 5206878, D83, K83, Z83 and Zund Z83 (5206878). These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.

For presentation on a product page, this description is written to explain what the blade is for, why the listed specifications matter, and how the product fits into real cutting work. It keeps the technical data visible in context while giving customers a clearer reason to choose CS-K83A for compatible cutting applications.
