CS-K-TZ230

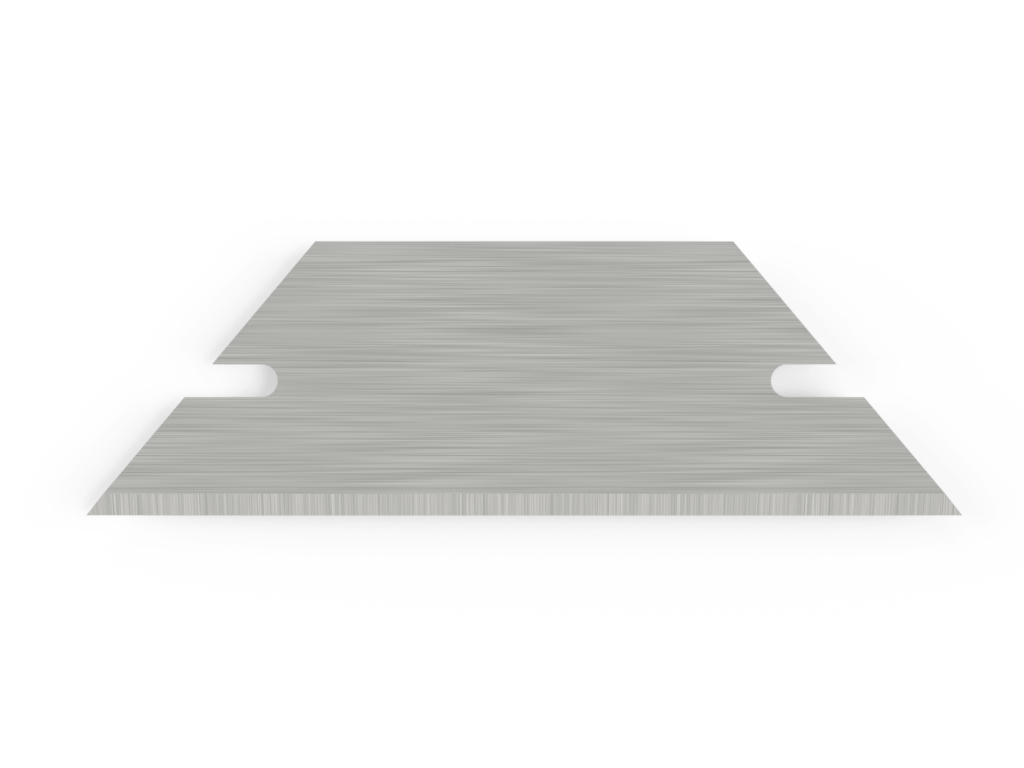

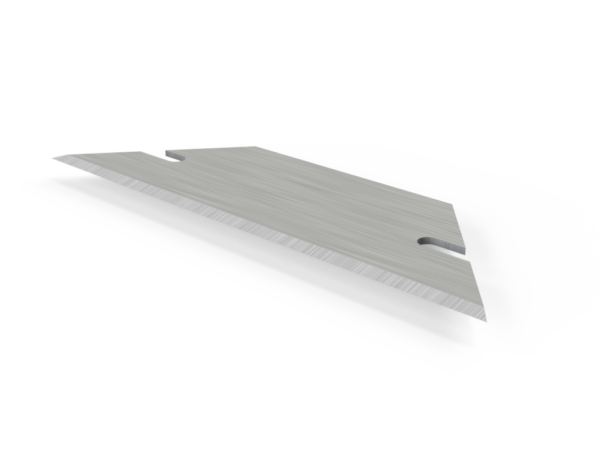

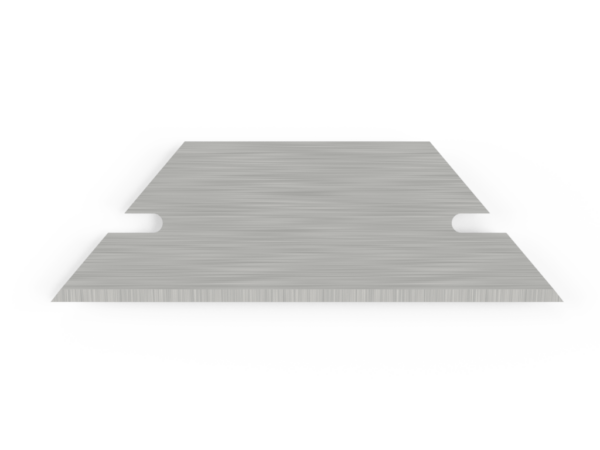

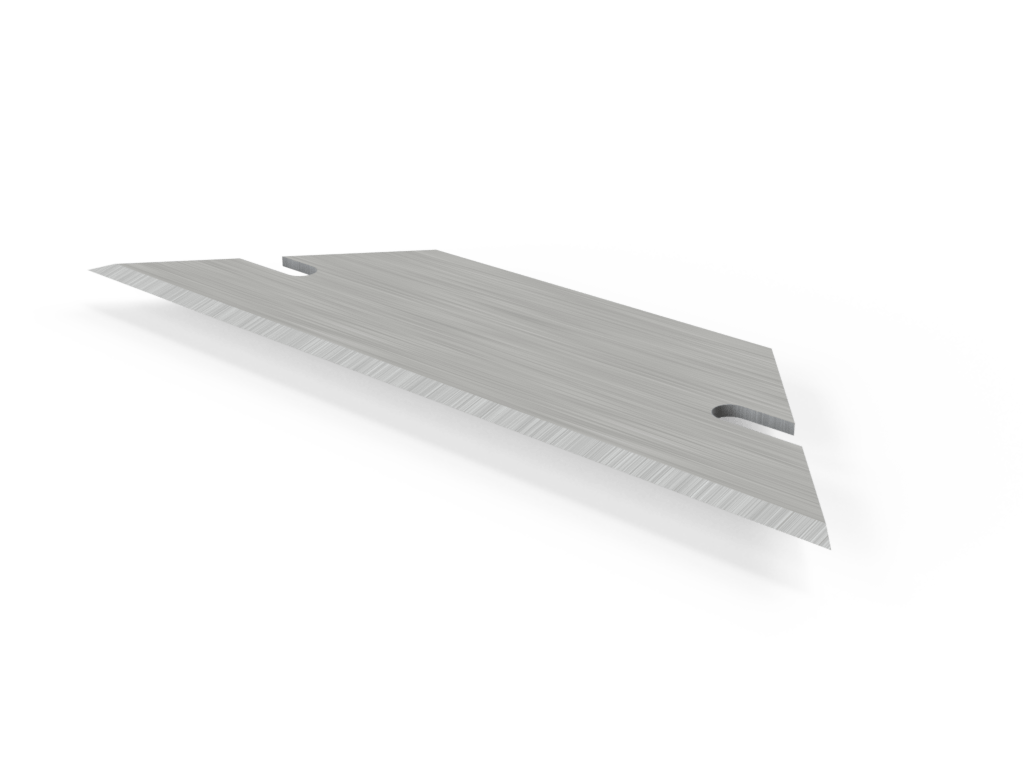

CS-K-TZ230 is a v-cut blade for professional digital cutting environments. Carbide bevel/v -cut drag blade. For using in paper board and honeycomb products. It is made for shops running Gerber, Kongsberg and Zund cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for knife – v-cut work and supports material thicknesses up to 18.2 mm with a 20 degrees cut angle and a 0.9 mm blade thickness. The flat stock profile gives the blade a familiar handling style for operators who already work with comparable tools. The physical dimensions are 2.6 cm long, 1.4 cm wide and .65 cm high, so it can be checked quickly against existing tool storage, ordering records and machine documentation.

In day-to-day production, CS-K-TZ230 is especially relevant for board – soft such as Corrugated Plastic, Dispa(R), F-Sorb(R), Foam Board and Fome-Cor(R), corrugated single such as A Flute, B Flute, C Flute, D Flute and E Flute, corrugated double wall such as A/B Flute, B/C Flute, B/E Flute, E/B Flute and E/C Flute and corrugated triple wall such as A/B/A Flute and E/B/E Flute. These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

Because blade choice affects corners, lead-ins and small details, operators should match this item with the cut parameters recommended for the relevant machine and substrate.

CS-K-TZ230 is also listed with compatible or alternative reference terms including 34061218, bevel, BLD-TZ230, Kongsberg BLD-TZ230 (34061218), S230, SE230, TZ230, v-cut, VCT and vcut. These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
