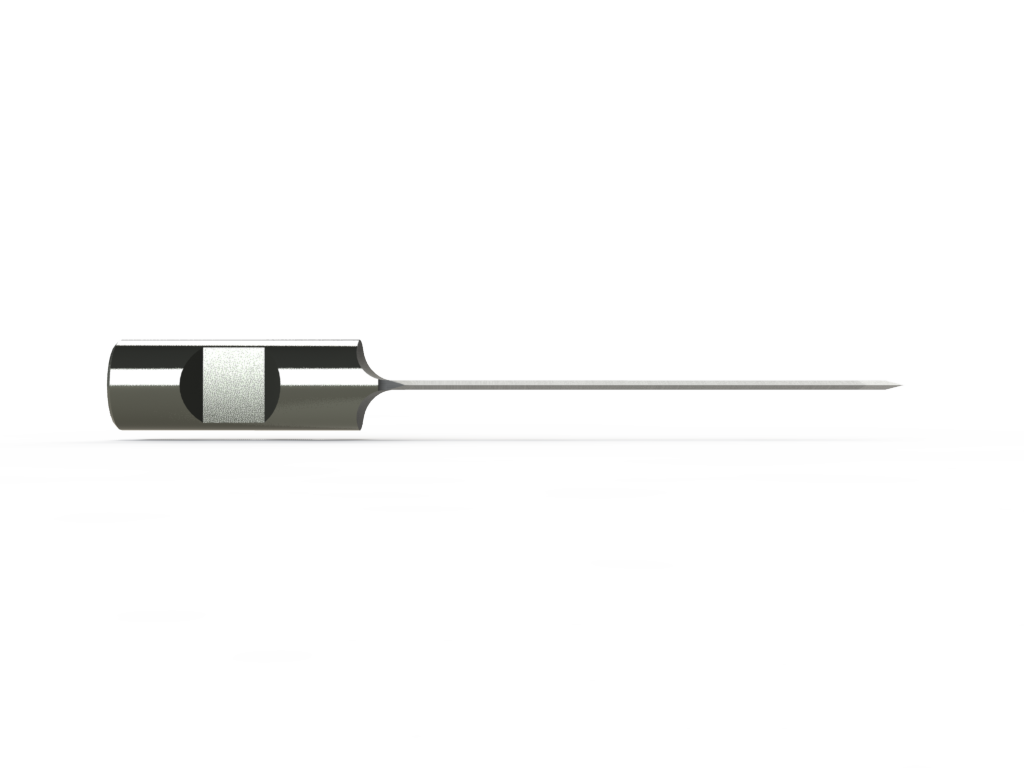

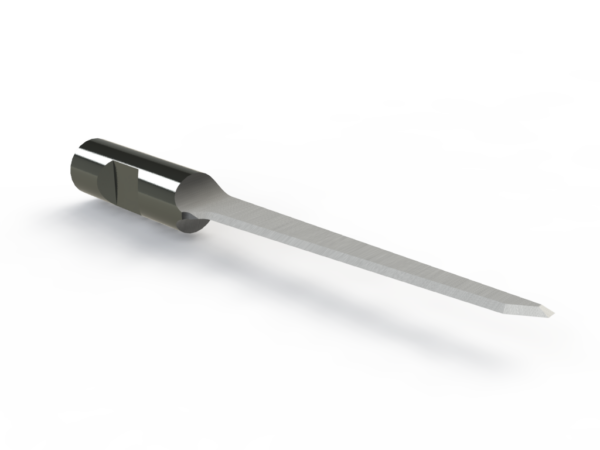

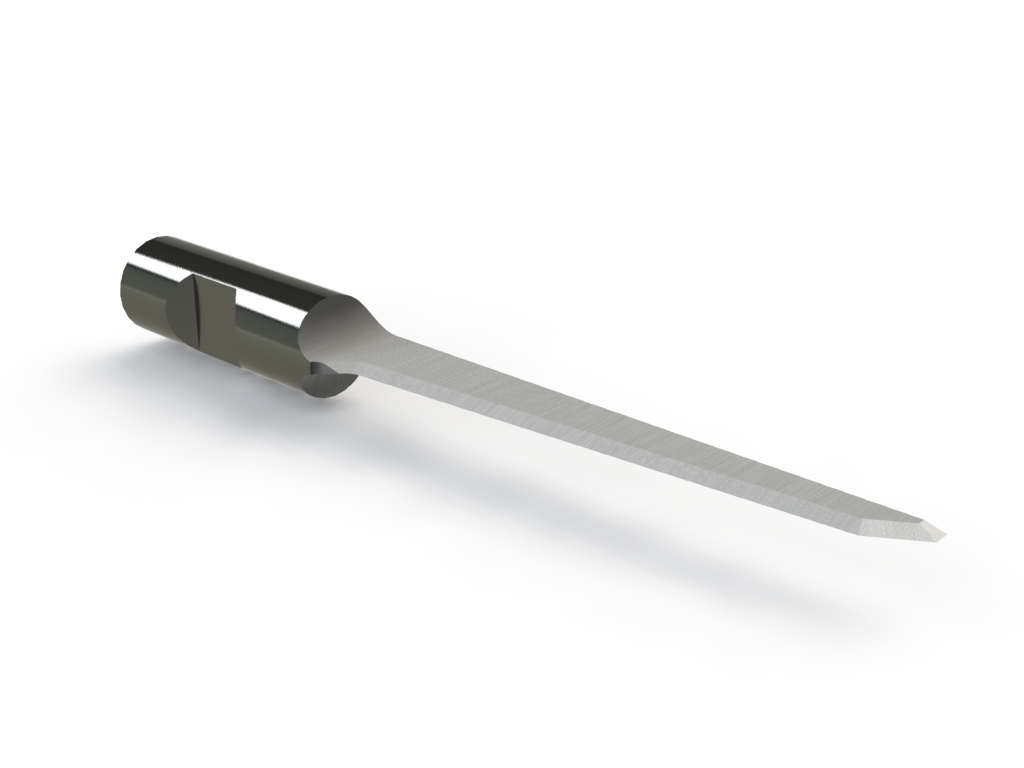

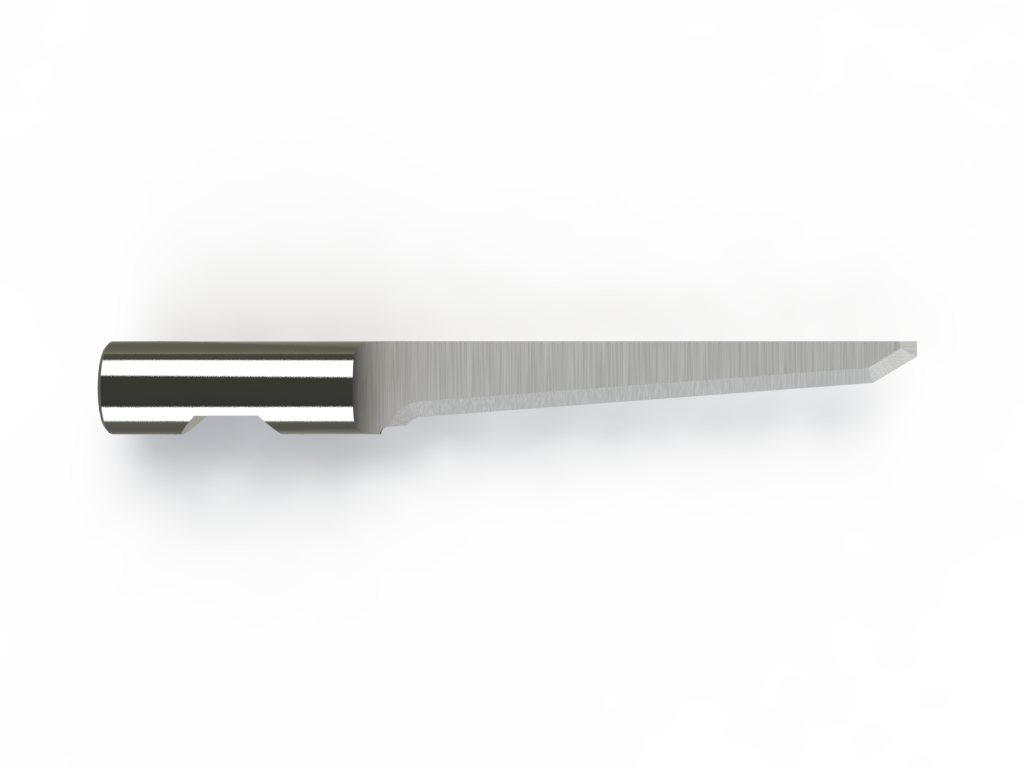

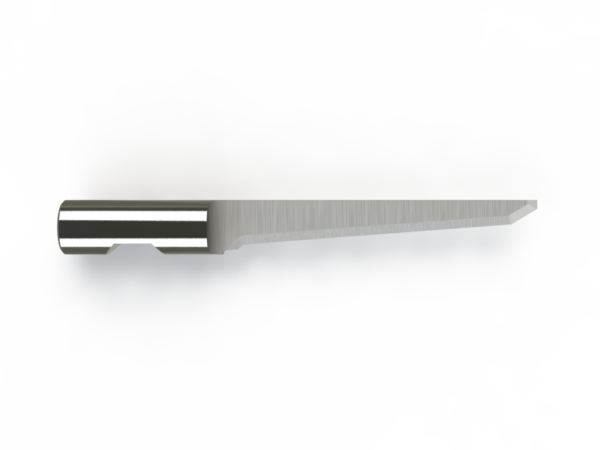

CS-K32r

CS-K32r is a single edge blade for professional digital cutting environments. A long oscillating knife blade with a 6mm diameter cylindrical shank providing high rigidity in materials up to 30mm thickness. A 8 degree cut angle allows for fine details in a wide range of materials. A flattened tip helps increase cutting speed and protect cutting underlays. It is made for shops running Gerber, Kongsberg and Summa cutting systems, making it a practical replacement choice when you need predictable fit and familiar cutting behavior across established digital cutting workflows.

The blade is designed for knife – oscillate work and supports material thicknesses up to 30 mm with a 8 degrees cut angle and a 6o mm blade thickness. The round stock profile gives the blade a familiar handling style for operators who already work with comparable tools.

In day-to-day production, CS-K32r is especially relevant for board – soft such as corrugated sandwich, F-Sorb(R), Foam Board, Fome-Cor(R) and Insite(R) Foam Board, flexible material such as Carpet, Fiber Glass, Foam, Insulation and Rubber and shank diameter such as 6. These material matches make it useful for operators who need one blade option that can be selected confidently for common production boards, films, textiles, composites, packaging stock or flexible sheet materials shown in the product data.

The listed overcut values include a 0 mm start overcut and a 1.9 + 0.06 mm end overcut, which helps operators compare this blade against nearby alternatives when fine tuning corners, lead-ins and small details.

CS-K32r is also listed with compatible or alternative reference terms including 42443085, BLD-SR6313, Kongsberg BLD-SR6313 (42443085) and SE32R. These references are helpful when replacing an existing blade, comparing supplier part numbers, or confirming that the product matches the naming used in older job sheets and machine setups.
